Order no.: 930200

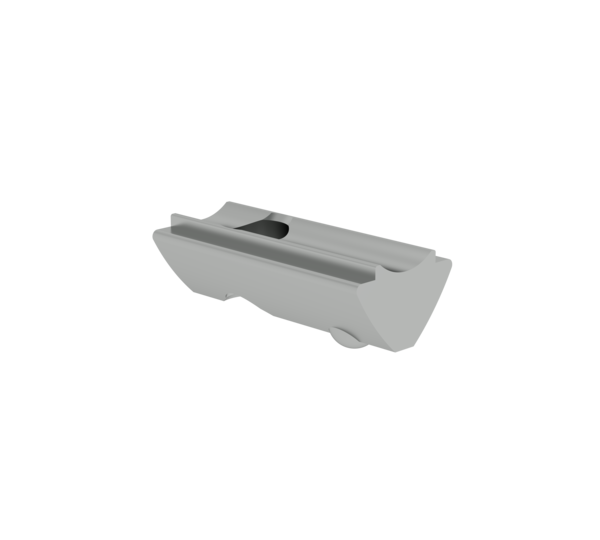

M5 slot nut 6 mm slot
Price on demand
Specifications
Material
Galvanised steel
Weight/piece
5 g
Groove size
6 mm
ISO thread
M5
Dimension A
17 mm
Dimension B
10 mm
Dimension C
7.9 mm
Order no.
930200
Information
- High-strength steel slot nuts
- For assembling profiles, construction parts and accessories in a range of positions
- Particularly suitable for exposure to dynamic stresses
- Slot nuts are swivelled into the side of the profile slot or inserted into the front
Our steel slot nuts are particularly suitable for exposure to dynamic stresses and can be installed in different positions. Slot nuts are swivelled into the side of the profile slot or inserted into the front. Versions to fit all slot sizes of our construction profiles are available.
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Slot nut: 1 x
Comparison table
| Product name | M5 slot nut 6 mm slot | M6 slot nut 6 mm slot Slot nut-930201 | M5 slot nut 8 mm slot | M6 slot nut 8 mm slot | M8 slot nut 8 mm slot |
|---|---|---|---|---|---|
| Material | Galvanised steel | Galvanised steel | Galvanised steel | Galvanised steel | Galvanised steel |
| Weight/piece | 5 g | 5 g | 7 g | 7 g | 7 g |
| Groove size | 6 mm | 6 mm | 8 mm | 8 mm | 8 mm |
| ISO thread | M5 | M6 | M5 | M6 | M8 |
| Dimension A | 17 mm | 17 mm | 13.3 mm | 13.3 mm | 13.3 mm |
| Dimension B | 10 mm | 10 mm | 22.3 mm | 22.3 mm | 22.3 mm |
| Dimension C | 7.9 mm | 7.9 mm | 7.4 mm | 7.4 mm | 7.4 mm |
| Order no. | 930200 | 930201 | 930202 | 930203 | 930204 |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
