Spare parts for

Order no. : 115007

3-section rope-extension ladder with supports DIN EN 1147

You need a spare part for your 3-section rope-extension ladder with supports? We have included the most important spare parts in our enquiry form. Simply enter which part you need and how often, and we will prepare your individual offer so that your portable fire ladder is quickly ready for use again.

Here's how

Find suitable spare part

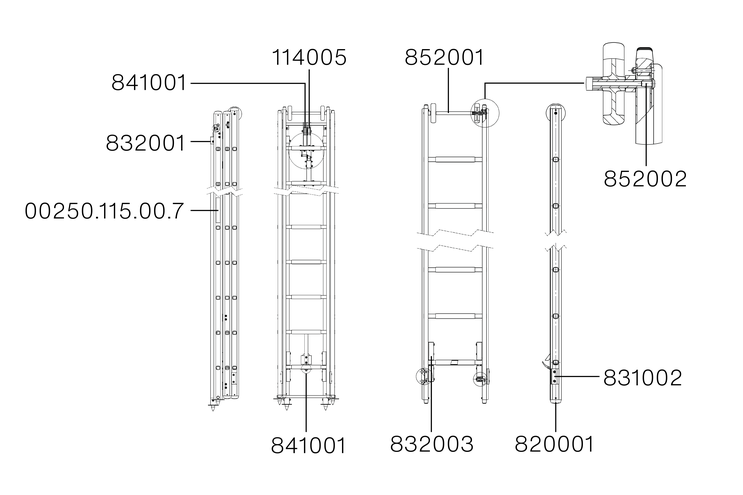

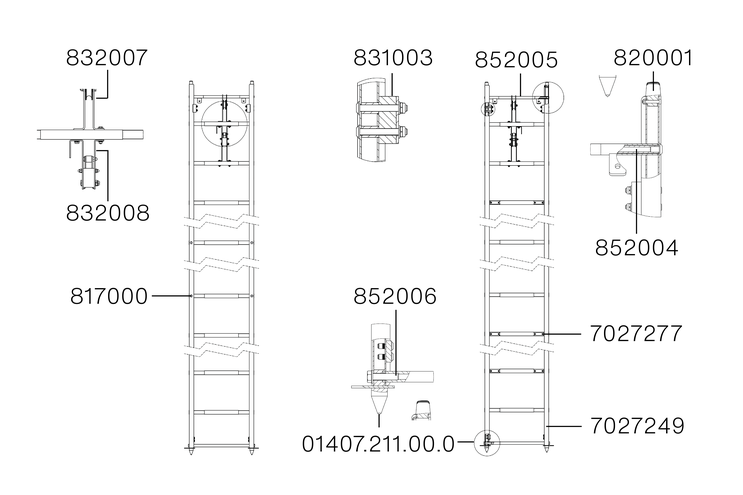

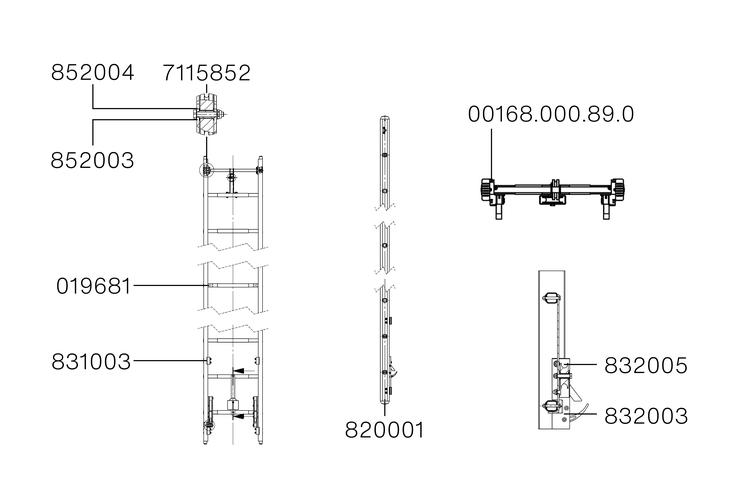

In the drawing, we have entered the respective spare part numbers of our enquiry form at the appropriate places. This way you can quickly find the right spare part.

We have enlarged small parts in the drawing so that you have an even better overview.

Please send me a quotation for the following spare parts:

Spare parts request

Support, rope-extension ladder DIN EN 1147

( Order no: 832001 )

Pull rope, 3-section rope-extension ladder DIN EN 1147 Polyester

( Order no: 114005 )

Wire rope for rope ladder, ÖNORM F4047

( Order no: 841001 )

Type label: 3-section rope-extension ladder with supports DIN EN 1147

( Order no: 00250.115.00.7 )

Rope pulley complete

( Order no: 832007 )

Rope pulley

( Order no: 7115852 )

Idler pulley complete

( Order no: 832005 )

Installation kit, rope brake, rope-extension ladders DIN EN 1147

( Order no: 832008 )

Ladder foot

( Order no: 01407.211.00.0 )

Lashing strap

( Order no: 01407.500.00.0 )

Cross tube for wall castor (outer tube)

( Order no: 852001 )

Cross tube for wall castor (inner tube)

( Order no: 852002 )

Cross tube for centre ladder

( Order no: 852003 )

Cross tube 484 mm

( Order no: 852004 )

Cross tube for bottom ladder

( Order no: 852005 )

Cross tube for bottom ladder (bottom)

( Order no: 852006 )

Lateral guidance

( Order no: 831003 )

Lateral guidance

( Order no: 00168.000.89.0 )

Support block

( Order no: 7027249 )

Support block

( Order no: 7027277 )

Inside shoe, FS ladder DIN EN 1147 and ÖNORM F4047

( Order no: 820001 )

Sliding pipette

( Order no: 817000 )

Rung sliding piece for multi-purpose ladders with rungs

( Order no: 019681 )

Rope-extension ladder release DIN EN 1147

( Order no: 832003 )

Wall wheel, rope-extension ladder DIN EN 1147 and ÖNORM F4047 Plastic

( Order no: 860001 )
