Order no.
: 063270

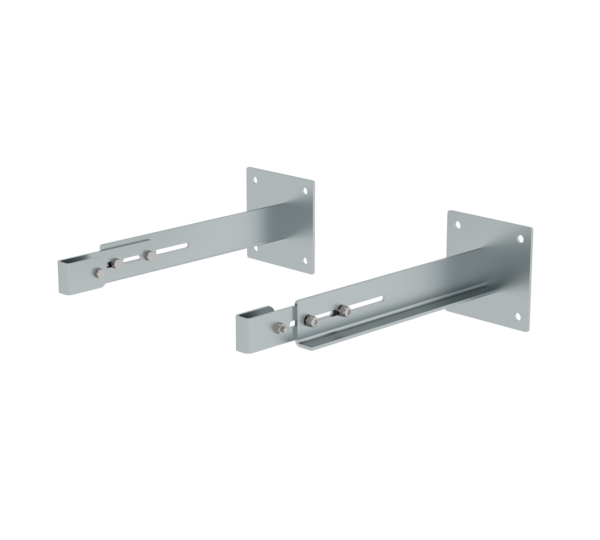

Special wall bracket, adjustment range 500-600mm, galvanised steel
€ 251.00
RRP without VAT
Specifications
Wall distance
500 mm
Wall anchor
Single
Wall distance min.
500 mm
Wall distance max.
600 mm
Adjustment range
100 mm
Material
Galvanised steel
Weight
10.5 kg
Transport dimensions
510 x 200 x 200 mm, 10.5 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
063270
Price
€ 251.00
Information
- Available for wall distances of 500-900 mm
- Good anchoring for different wall types
- Steel quality ensures high load capacity
- 1 set comprising 1x right, 1x left
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Wall anchor: 2 x
- Assembly instructions: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Special wall bracket, adjustment range 500-600mm, galvanised steel | Special wall bracket, adjustment range 600-700mm, galvanised steel | Special wall bracket, adjustment range 700-800mm, galvanised steel | Special wall bracket, adjustment range 800-900mm, galvanised steel |
|---|---|---|---|---|
| Wall distance | 500 mm | 600 mm | 700 mm | 800 mm |
| Wall anchor | Single | Single | Single | Single |
| Wall distance min. | 500 mm | 600 mm | 700 mm | 800 mm |
| Wall distance max. | 600 mm | 700 mm | 800 mm | 900 mm |
| Adjustment range | 100 mm | 100 mm | 100 mm | 100 mm |
| Material | Galvanised steel | Galvanised steel | Galvanised steel | Galvanised steel |
| Weight | 10.5 kg | 11.5 kg | 13 kg | 13.5 kg |
| Transport dimensions | 510 x 200 x 200 mm, 10.5 kg | 610 x 200 x 200 mm, 11.5 kg | 715 x 200 x 200 mm, 13 kg | 813 x 200 x 200 mm, 13.5 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 063270 | 063271 | 063272 | 063273 |
| Price | € 251.00 | € 268.00 | € 284.00 | € 389.00 |
| Buy online |
Fixed ladders overview
All fixed ladders / vertical ladders at a glance:
- Single-flight vertical ladders in accordance with DIN 18799-1/-3, DIN 14094-1 and DIN EN ISO 14122-4 (depending on the choice of standard and the situation on site at the exit, additional components such as exit steps, railings and safety doors may be required)
- DIN 18799-1: Stationary multiple-flight vertical ladders on buildings
- DIN 14094-1: Multiple-flight emergency ladder systems (emergency ladders)
- DIN EN ISO 14122-4: Stationary multiple-flight vertical ladders on machinery
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
