Specifications
Inclination
45 °
Number of steps/rungs
6 steps
Step width
800 mm
Step depth
225 mm
Design type
45°
Surface
Aluminium corrugated
Base area
1.8 m
Predecessor product
332306
Business division
MUNK Günzburger Steigtechnik
Article no.
632306
Price
€ 3,132.00
Information

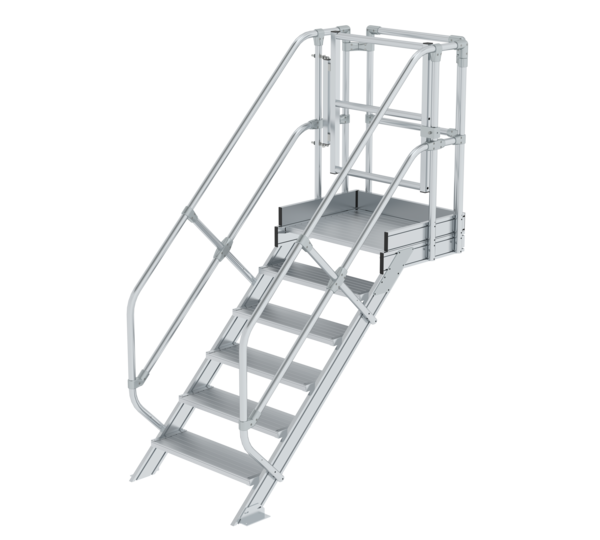

- A stair module consists of stairs with a handrail on both sides, a platform, a railing on the front and a safety door
- Standard step and platform design in grooved aluminium (R 9), optionally also in steel grating (R 12), aluminium grating (R 13), perforated steel cover (R 13) or perforated aluminium cover (R 13)
- Inclination: 45°
- Step width: 800 mm
- Step depth: 225 mm
- Rigid handrails and railings with toe and knee boards on both sides (height: 1,100 mm)
- Stationary attachment by means of foot bracket
- Maximum load: 1.5 kN/m2, step load 150 kg, total load 300 kg
- Note: When ordering, please specify the exact height (platform height) required at the factory. The stair modules are delivered custom-fit in accordance with your requirements. Intermediate dimensions are supplied at the price of the next higher number of steps, other stair inclinations on request
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Stair module: 1 x
- Instructions for use and operation: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Stair module grooved aluminium 6 steps | Stair module grooved aluminium 7 steps | Stair module grooved aluminium 8 steps | Stair module grooved aluminium 9 steps | Stair module grooved aluminium 10 steps | Stair module grooved aluminium 11 steps | Stair module grooved aluminium 12 steps | Stair module grooved aluminium 13 steps | Stair module grooved aluminium 14 steps | Stair module grooved aluminium 15 steps |
|---|---|---|---|---|---|---|---|---|---|---|
| Inclination | 45 ° | 45 ° | 45 ° | 45 ° | 45 ° | 45 ° | 45 ° | 45 ° | 45 ° | 45 ° |
| Number of steps/rungs | 6 steps | 7 steps | 8 steps | 9 steps | 10 steps | 11 steps | 12 steps | 13 steps | 14 steps | 15 steps |
| Step width | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm |
| Step depth | 225 mm | 225 mm | 225 mm | 225 mm | 225 mm | 225 mm | 225 mm | 225 mm | 225 mm | 225 mm |
| Design type | 45° | 45° | 45° | 45° | 45° | 45° | 45° | 45° | 45° | 45° |
| Surface | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated |
| Base area | 1.8 m | 2.01 m | 2.22 m | 2.42 m | 2.65 m | 2.85 m | 3.06 m | 3.26 m | 3.47 m | 3.68 m |
| Predecessor product | 332306 | 332307 | 332308 | 332309 | 332310 | 332311 | 332312 | 332313 | 332314 | 332315 |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 632306 | 632307 | 632308 | 632309 | 632310 | 632311 | 632312 | 632313 | 632314 | 632315 |
| Price | € 3,132.00 | € 3,329.00 | € 3,470.00 | € 3,584.00 | € 4,451.00 | € 4,781.00 | € 4,934.00 | € 5,170.00 | € 5,472.00 | € 5,813.00 |
| Buy online |
