Specifications
Working height
2.8 m
Step design
Steps
Number of steps/rungs
6 steps
Step depth
80 mm
Step/Rung distance
235 mm
Type of non-slip protection
Aluminium corrugated
Ladder length
1.65 m
Inclination
70 °
Base area
580 mm
Outer width
420 mm
Depth of side-rails
73 mm
Width of side-rails
25 mm
Max. load capacity
150 kg
Design type
To lean against
Weight
4.5 kg
Transport dimensions
1645 x 425 x 103 mm, 4.5 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
040306
Price
€ 179.00
Information

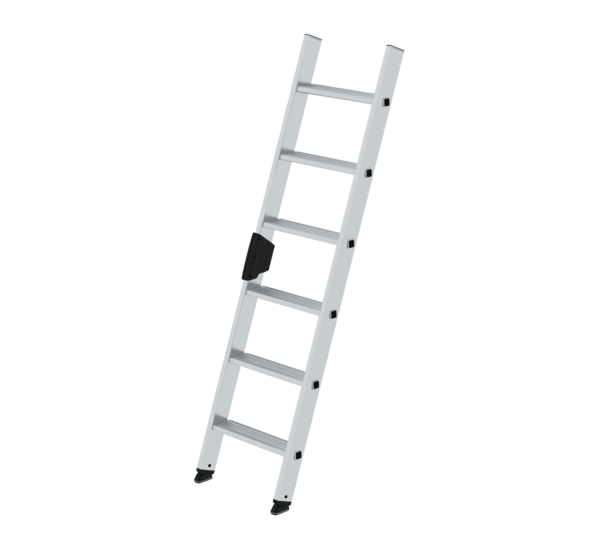

- Aluminium step straight ladder
- Stable rectangular tube side-rails
- Grooved steps with a depth of 80 mm
- 4-fold edged step-to-side-rail connection

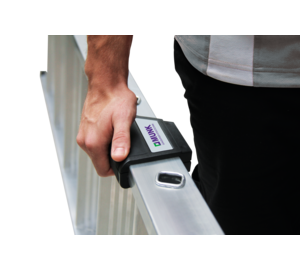

- ergo-pad® grip area
- Step spacing: 235 mm
- Ladder width: 420 mm (without stabiliser)
- Ladder inclination: 70°
- nivello® ladder shoes with patented 2-axis inclination technology
- Maximum load: 150 kg
- Note: Straight ladders over 3.0 m can be used without a stabiliser only when they are used exclusively for their intended purpose (e.g. permanently installed, fitted with hooks, fastened with a belt)
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
Certificates
Safety. Made in Germany.
Comparison table
| Product name | Step straight ladder without stabiliser 6 steps | Step straight ladder without stabiliser 8 steps | Step straight ladder without stabiliser 10 steps | Step straight ladder without stabiliser 12 steps | Step straight ladder without stabiliser 14 steps | Step straight ladder without stabiliser 16 steps | Step straight ladder without stabiliser 18 steps |
|---|---|---|---|---|---|---|---|
| Working height | 2.8 m | 3.3 m | 3.8 m | 4.3 m | 4.8 m | 5.3 m | 5.8 m |
| Step design | Steps | Steps | Steps | Steps | Steps | Steps | Steps |
| Number of steps/rungs | 6 steps | 8 steps | 10 steps | 12 steps | 14 steps | 16 steps | 18 steps |
| Step depth | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Step/Rung distance | 235 mm | 235 mm | 235 mm | 235 mm | 235 mm | 235 mm | 235 mm |
| Type of non-slip protection | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated |
| Ladder length | 1.65 m | 2.15 m | 2.65 m | 3.15 m | 3.65 m | 4.15 m | 4.65 m |
| Inclination | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Base area | 580 mm | 750 mm | 920 mm | 1.09 m | 1.26 m | 1.43 m | 1.6 m |
| Outer width | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Depth of side-rails | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| Design type | To lean against | To lean against | To lean against | To lean against | To lean against | To lean against | To lean against |
| Weight | 4.5 kg | 5.5 kg | 7 kg | 8 kg | 9 kg | 11 kg | 12.5 kg |
| Transport dimensions | 1645 x 425 x 103 mm, 4.5 kg | 2146 x 425 x 103 mm, 5.5 kg | 2645 x 425 x 103 mm, 7 kg | 3145 x 425 x 103 mm, 8 kg | 3646 x 425 x 103 mm, 9 kg | 4145 x 425 x 103 mm, 11 kg | 4646 x 425 x 103 mm, 12.5 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 040306 | 040308 | 040310 | 040312 | 040314 | 040316 | 040318 |
| Price | € 179.00 | € 218.00 | € 259.00 | € 306.00 | € 353.00 | € 405.00 | € 456.00 |
| Buy online |
Note: Working heights
- National regulations (e.g. TRBS 2121 Part 2 in Germany) must be complied with with regard to the maximum working height when using the ladder as a workstation.
- Information on TRBS 2121 Part 2 has been summarised on our Service page
- Read our tips and tricks on how to calculate working height
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
