Order no.
: 033706

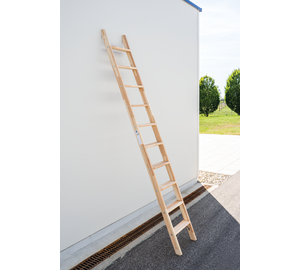

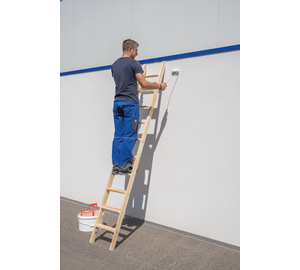

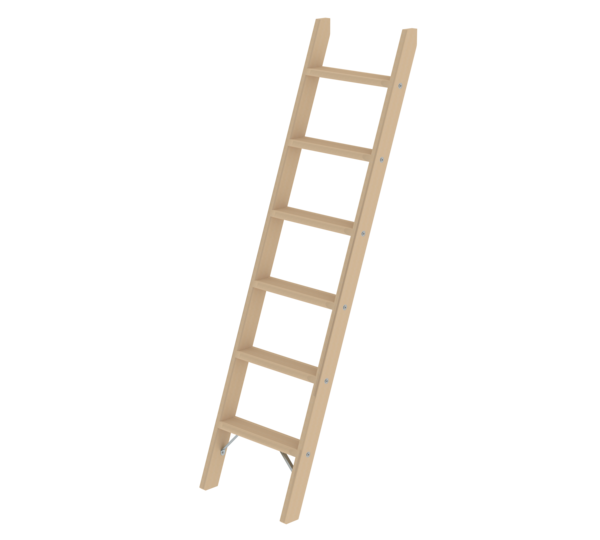

Step straight ladder, wood without stabiliser
€ 218.00
RRP without VAT
Specifications
Working height
2.7 m
Step design
Steps
Number of steps/rungs
6 steps
Step depth
92 mm
Step/Rung distance
235 mm
Ladder length
1.69 m
Inclination
70 °
Outer width
420 mm
Depth of side-rails
70 mm
Width of side-rails
23 mm
Max. load capacity
150 kg
Design type
To lean against
Weight
5.5 kg
Transport dimensions
1685 x 425 x 90 mm, 5.5 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
033706
Price
€ 218.00
Information
- Step straight ladder made of wood
- Side-rails and steps made of finger-jointed pine or knot-free Caroline pine

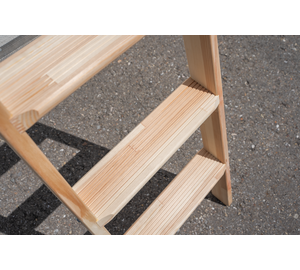

- Grooved steps with a depth of 92 mm
- Steps inserted in side-rail using threaded rod

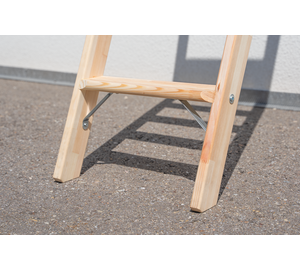

- Slanted side-rail end for optimum contact with or attachment to walls
- Step spacing: 235 mm
- Ladder width: 420 mm (without stabiliser)
- Ladder inclination: 70°
- Maximum load: 150 kg

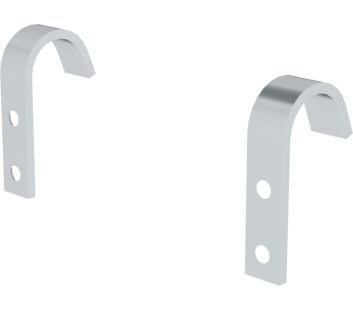

- Note: Straight ladders over 3.0 m can be used without a stabiliser only when they are used exclusively for their intended purpose (e.g. permanently installed, fitted with hooks, fastened with a belt)
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Step straight ladder, wood without stabiliser 6 steps | Step straight ladder, wood without stabiliser 8 steps | Step straight ladder, wood without stabiliser 10 steps | Step straight ladder, wood without stabiliser 12 steps |
|---|---|---|---|---|
| Working height | 2.7 m | 3.17 m | 3.64 m | 4.06 m |
| Step design | Steps | Steps | Steps | Steps |
| Number of steps/rungs | 6 steps | 8 steps | 10 steps | 12 steps |
| Step depth | 92 mm | 92 mm | 92 mm | 92 mm |
| Step/Rung distance | 235 mm | 235 mm | 235 mm | 235 mm |
| Ladder length | 1.69 m | 2.19 m | 2.69 m | 3.13 m |
| Inclination | 70 ° | 70 ° | 70 ° | 70 ° |
| Outer width | 420 mm | 420 mm | 420 mm | 420 mm |
| Depth of side-rails | 70 mm | 70 mm | 70 mm | 70 mm |
| Width of side-rails | 23 mm | 23 mm | 23 mm | 23 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg |
| Design type | To lean against | To lean against | To lean against | To lean against |
| Weight | 5.5 kg | 7.5 kg | 9 kg | 11.5 kg |
| Transport dimensions | 1685 x 425 x 90 mm, 5.5 kg | 2185 x 425 x 90 mm, 7.5 kg | 2685 x 425 x 90 mm, 9 kg | 3130 x 425 x 90 mm, 11.5 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 033706 | 033708 | 033710 | 033712 |
| Price | € 218.00 | € 271.00 | € 341.00 | € 408.00 |
| Buy online |
Note: Working heights
- National regulations (e.g. TRBS 2121 Part 2 in Germany) must be complied with with regard to the maximum working height when using the ladder as a workstation.
- Information on TRBS 2121 Part 2 has been summarised on our Service page
- Read our tips and tricks on how to calculate working height
