Order no.
: 032013

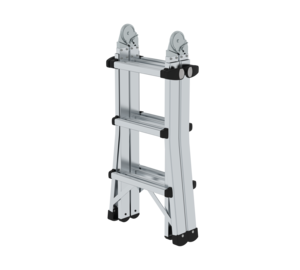

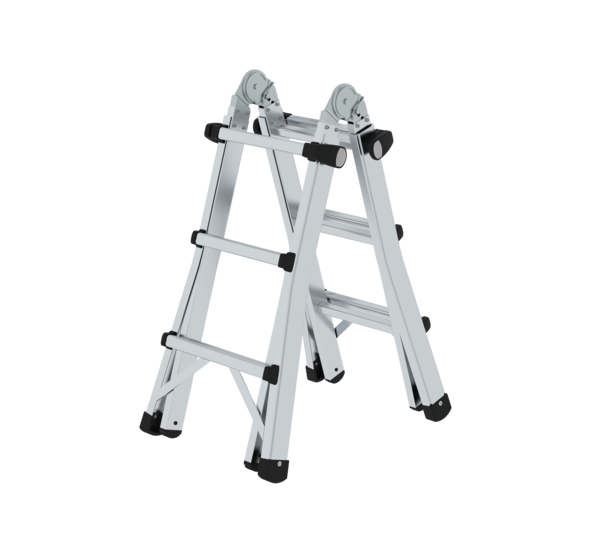

Telescopic ladder 4-section without stabiliser
€ 510.00
RRP without VAT
Specifications
Working height min.
3.05 m
Working height max.
4.2 m
Number of steps/rungs
4x
3 rungs
Step/Rung height
30 mm
Step depth
30 mm
Step/Rung distance
280 mm
Step design
Rungs
Ladder length as straight ladder (min.)
1.95 m
Ladder length as straight ladder
3.1 m
Ladder length as double-sided ladder (min.)
980 mm
Ladder length as double-sided ladder
1.5 m
Outer width
500 mm
Width of side-rails
25 mm
Max. load capacity
150 kg
Design type
Flexible | 4-part | Suitable for stairs
Weight
11.88 kg
Transport dimensions
1030 x 495 x 195 mm, 11.88 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
032013
Price
€ 510.00
Information
- Aluminium telescopic rung ladder
- Stable rectangular tube side-rails
- Rectangular rungs grooved on both sides, 30 x 30 mm
- High-strength rung-to-side-rail connection
- Can be used as a step and straight ladder
- Folding in the middle by automatically locking steel hinges
- Both outer sections are telescopic from rung to rung
- Conical side-rail guide for safe stance
- Rung distance: 280 mm
- Maximum load: 150 kg
- These products are covered by the statutory warranty
- Note: Straight ladders over 3.0 m can be used without a stabiliser only when they are used exclusively for their intended purpose (e.g. permanently installed, fitted with hooks, fastened with a belt)
- Note: In accordance with TRBS 2121 Part 2, a suitable accessory is required for working on this ladder
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Instructions for use and operation: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Telescopic ladder 4-section without stabiliser 4x3 rungs | Telescopic ladder 4-section without stabiliser 4x4 rungs | Telescopic ladder 4-section without stabiliser 4x5 rungs | Telescopic ladder 4-section without stabiliser 4x6 rungs |
|---|---|---|---|---|
| Working height min. | 3.05 m | 3.6 m | 4.2 m | 4.7 m |
| Working height max. | 4.2 m | 5.3 m | 6.4 m | 7.5 m |
| Number of steps/rungs | 4x3 rungs | 4x4 rungs | 4x5 rungs | 4x6 rungs |
| Step/Rung height | 30 mm | 30 mm | 30 mm | 30 mm |
| Step depth | 30 mm | 30 mm | 30 mm | 30 mm |
| Step/Rung distance | 280 mm | 280 mm | 280 mm | 280 mm |
| Step design | Rungs | Rungs | Rungs | Rungs |
| Ladder length as straight ladder (min.) | 1.95 m | 2.5 m | 3.1 m | 3.6 m |
| Ladder length as straight ladder | 3.1 m | 4.2 m | 5.3 m | 6.4 m |
| Ladder length as double-sided ladder (min.) | 980 mm | 1.28 m | 1.53 m | 1.83 m |
| Ladder length as double-sided ladder | 1.5 m | 2 m | 2.55 m | 3.1 m |
| Outer width | 500 mm | 560 mm | 630 mm | 700 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm | 25 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg |
| Design type | Flexible | 4-part | Suitable for stairs | Flexible | 4-part | Suitable for stairs | Flexible | 4-part | Suitable for stairs | Flexible | 4-part | Suitable for stairs |
| Weight | 11.88 kg | 14.5 kg | 17.5 kg | 21 kg |
| Transport dimensions | 1030 x 495 x 195 mm, 11.88 kg | 1305 x 570 x 196 mm, 14.5 kg | 1585 x 635 x 197 mm, 17.5 kg | 1860 x 700 x 208 mm, 21 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 032013 | 032015 | 032017 | 032019 |
| Price | € 510.00 | € 560.00 | € 650.00 | € 780.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
