Order no.
: 115351

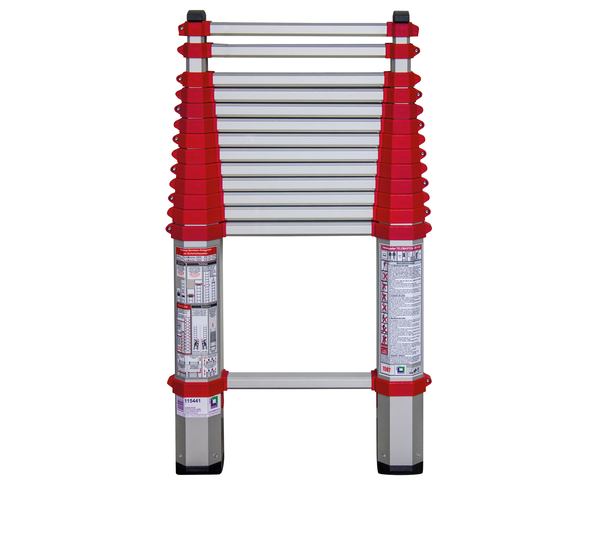

Telescopic ladder EU red DIN EN 1147
Price on demand
Specifications
Rescue height
2.2 m
Intended use
Rescue
Ladder length
3.5 m
Ladder length retracted
800 mm
Ladder length extended
3.5 m
Setting angle
70 °
Clear width between rungs
270 mm
Outer width
500 mm
Ladder feet
Ladder shoe
Depth of side-rails
100 mm
Width of side-rails
80 mm
Step/Rung height
28 mm
Step depth
29 mm
Number of steps/rungs
11 rungs
Max. load capacity
216 kg
Persons max.
2
Material
Aluminium
Weight
13 kg
Transport dimensions
940 x 560 x 130 mm, 13 kg
Business division
MUNK Rettungstechnik
Article no.
115351
Information
- Aluminium telescopic ladder
- Rescue ladder compliant with DIN EN 1147
- Abrasion-resistant anodised octagonal tube side-rails
- With heat-insulating, non-slip plastic coating (DE and THW (Federal Agency for Technical Relief) designs)
- Variable height adjustment via intuitive telescopic function (partial heights possible)
- Safety system for controlled retraction
- Minimises the risk of crushing and injury
- Permissible load: 250 kg / 2 people
- These products are covered by the statutory warranty
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Comparison table
| Product name | Telescopic ladder EU red DIN EN 1147 Length 3500 mm | Telescopic ladder EU red DIN EN 1147 Length 4400 mm |
|---|---|---|
| Rescue height | 2.2 m | 3.1 m |
| Intended use | Rescue | Rescue |
| Ladder length | 3.5 m | 4.4 m |
| Ladder length retracted | 800 mm | 910 mm |
| Ladder length extended | 3.5 m | 4.4 m |
| Setting angle | 70 ° | 70 ° |
| Clear width between rungs | 270 mm | 270 mm |
| Outer width | 500 mm | - |
| Ladder feet | Ladder shoe | - |
| Depth of side-rails | 100 mm | 100 mm |
| Width of side-rails | 80 mm | 80 mm |
| Step/Rung height | 28 mm | 28 mm |
| Step depth | 29 mm | 29 mm |
| Number of steps/rungs | 11 rungs | 14 rungs |
| Max. load capacity | 216 kg | 216 kg |
| Persons max. | 2 | 2 |
| Material | Aluminium | Aluminium |
| Weight | 13 kg | 14 kg |
| Transport dimensions | 940 x 560 x 130 mm, 13 kg | 940 x 560 x 130 mm, 14 kg |
| Business division | MUNK Rettungstechnik | MUNK Rettungstechnik |
| Article no. | 115351 | 115441 |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
