Order no.
: 115508

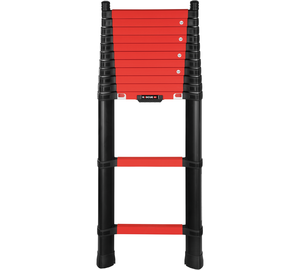

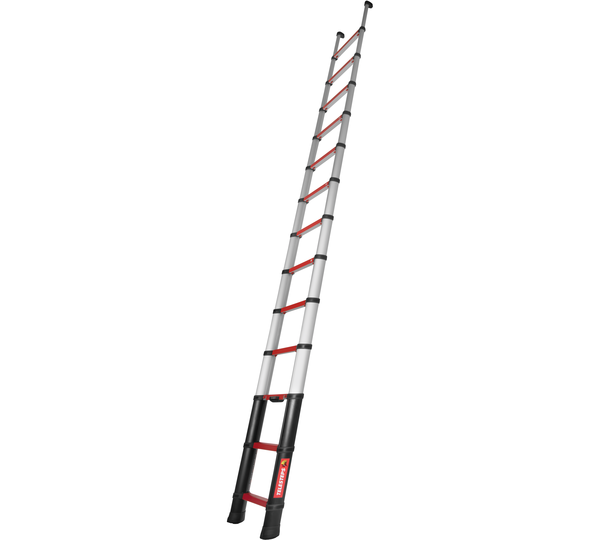

Telescopic ladder Rescue Line 3.5 m red DIN EN 1147
Price on demand
Specifications
Intended use
Rescue
Ladder length retracted
1.12 m
Ladder length extended
3.5 m
Setting angle
70 °
Outer width
470 mm
Depth of side-rails
100 mm
Width of side-rails
75 mm
Number of steps/rungs
9 rungs
Max. load capacity
500 kg
Persons max.
3
Material
Aluminium
Rung covering
Standard (red)
Weight
15 kg
Business division
MUNK Rettungstechnik
Article no.
115508
Information
- Aluminium telescopic ladder
- Rescue ladder compliant with DIN EN 1147
- Abrasion-resistant anodised triangular tube side-rails (partly plastic-coated)
- With heat-insulating, non-slip plastic coating
- Variable height adjustment via intuitive telescopic function (partial heights possible)
- Integrated indication of different heights (2.0 / 2.5 / 3.0 / 3.5 m)
- Safety system for controlled retraction
- Minimises the risk of crushing and injury
- Permissible load: 324 kg / 3 people
- These products are covered by the statutory warranty
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Comparison table
| Product name | Telescopic ladder Rescue Line 3.5 m red DIN EN 1147 | Telescopic ladder Rescue Line 4.1 m red DIN EN 1147 | Telescopic ladder Rescue Line black DIN EN 1147 |
|---|---|---|---|
| Intended use | Rescue | Rescue | Rescue |
| Ladder length retracted | 1.12 m | 1.17 m | 1.17 m |
| Ladder length extended | 3.5 m | 4.1 m | 4.1 m |
| Setting angle | 70 ° | 70 ° | 70 ° |
| Outer width | 470 mm | 470 mm | 470 mm |
| Depth of side-rails | 100 mm | 100 mm | 100 mm |
| Width of side-rails | 75 mm | 75 mm | 75 mm |
| Number of steps/rungs | 9 rungs | 13 rungs | 13 rungs |
| Max. load capacity | 500 kg | 500 kg | 500 kg |
| Persons max. | 3 | 3 | 3 |
| Material | Aluminium | Aluminium | Aluminium |
| Rung covering | Standard (red) | Standard (red) | black |
| Weight | 15 kg | 21.5 kg | 21.5 kg |
| Transport dimensions | 1200 x 490 x 125 mm, 21.5 kg | 1200 x 490 x 125 mm, 21.5 kg | - |
| Business division | MUNK Rettungstechnik | MUNK Rettungstechnik | MUNK Rettungstechnik |
| Article no. | 115508 | 115488 | 115505 |
Product video
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
