Order no.
: 120907

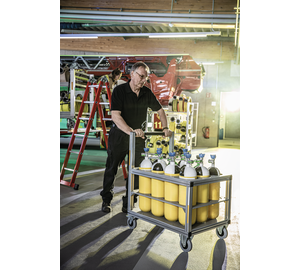

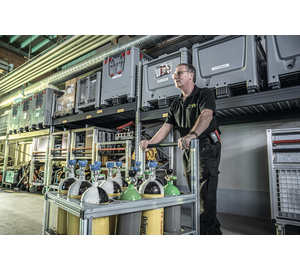

Trolley for oxygen canisters
Price on demand
Specifications
Length
800 mm
Width
610 mm
Height
984 mm
Max. load capacity
300 kg
Castor diameter
125 mm
Braking system
Foot-operated parking brake
Castor type
2 swivel castors/2 fixed castors
Weight
26 kg
Business division
MUNK Rettungstechnik
Article no.
120907
Information
- Trolley for oxygen canisters
- For vertical storage of up to twelve oxygen canisters 6 l steel or 6.8 l composite
- Storage shelves made of robust hard foam panels
- For easy filling, the oxygen canisters stored in the middle are located on a level approx. 120 mm higher
- Further sizes and versions available on request
- Scope of delivery without equipment items
- Series production quality equipment
- Stable and durable construction made of high-strength aluminium sections
- Ergonomic operation via continuous handle bar with non-slip cold-insulating SoftGrip coating
- Two ball bearing castors Ø 125 mm with wheel slewing arrestor for optimum handling
- Two ball bearing fixed castors Ø 125 mm
- Foot-operated parking brake on both castors
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Comparison table
| Product name | Trolley for oxygen canisters stepped | Trolley for oxygen canisters without elevation |
|---|---|---|
| Length | 800 mm | 800 mm |
| Width | 610 mm | 610 mm |
| Height | 984 mm | 984 mm |
| Max. load capacity | 300 kg | 300 kg |
| Castor diameter | 125 mm | 125 mm |
| Braking system | Foot-operated parking brake | Foot-operated parking brake |
| Castor type | 2 swivel castors/2 fixed castors | 2 swivel castors/2 fixed castors |
| Weight | 26 kg | 23 kg |
| Business division | MUNK Rettungstechnik | MUNK Rettungstechnik |
| Article no. | 120907 | 120917 |
Product video
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
