Order no.
: 060019

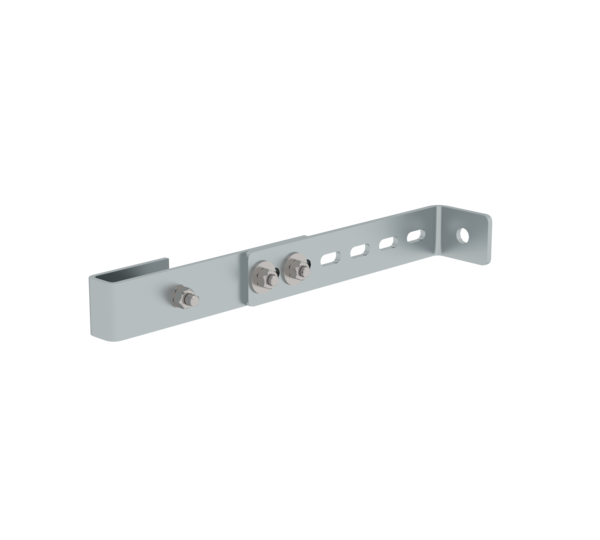

Wall anchor, adjustable, galvanised steel
€ 27.00
RRP without VAT
Specifications
Suitable for
Shaft ladders
Wall distance min.
150 mm
Wall distance max.
300 mm
Adjustment range
150 mm
Weight
0.78 kg
Transport dimensions
315 x 92 x 40 mm, 0.78 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
060019
Price
€ 27.00
Information
- Adjustable wall anchor
- For shaft ladders
- Galvanised steel
- Note: 2 sets (=4 pcs.) of wall anchors are required for ladders with 4–9 rungs, 3 sets (= 6 pcs.) of wall anchors for ladders with 10–15 rungs, and 5 sets (=10 pcs.) of wall anchors for ladders with 16–24 rungs
- 1 set = 2 pieces (1x right, 1x left). Wall plugs and bolts are to be used to fasten the ladder to the shaft rather than nuts and screwed bolts when their suitability has been verified at the place where the ladder is used. They have to be selected in accordance with the force acting on the ladder anchoring point as stated by the manufacturer.
- Dowels and screws for attachment to the wall are not included in the delivery. Please contact well-known dowel suppliers for information.
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Wall anchor: 1 x
- Assembly instructions: 1 x
Comparison table

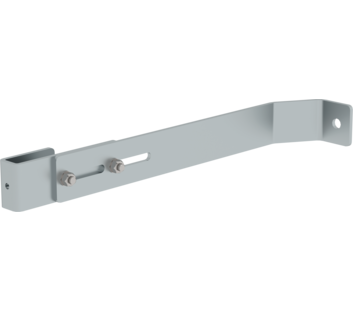

| Product name | Wall anchor, adjustable, galvanised steel 150-300mm | Wall anchor, adjustable, galvanised steel 165-215mm | Wall anchor, adjustable, galvanised steel 200-250mm | Wall anchor, adjustable, galvanised steel 280-330mm | Wall anchor, adjustable, galvanised steel |
|---|---|---|---|---|---|
| Suitable for | Shaft ladders | Shaft ladders | Shaft ladders | Shaft ladders | Shaft ladders |
| Wall distance min. | 150 mm | 165 mm | 200 mm | 280 mm | 360 mm |
| Wall distance max. | 300 mm | 215 mm | 250 mm | 330 mm | 410 mm |
| Adjustment range | 150 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Weight | 0.78 kg | 0.92 kg | 1 kg | 1.16 kg | 1.3 kg |
| Transport dimensions | 315 x 92 x 40 mm, 0.78 kg | 198 x 125 x 50 mm, 0.92 kg | 235 x 113 x 50 mm, 1 kg | 310 x 121 x 50 mm, 1.16 kg | 393 x 113 x 50 mm, 1.3 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 060019 | 060021 | 060022 | 060023 | 060024 |
| Price | € 27.00 | € 19.00 | € 19.00 | € 21.00 | € 27.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
