Order no.
: 068250

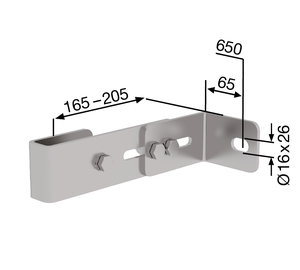

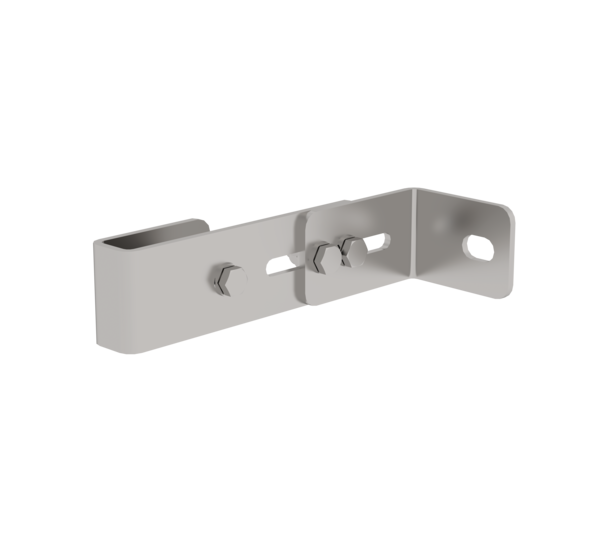

Wall anchor, adjustable, 165–205 mm, stainless steel
€ 67.00
RRP without VAT
Specifications
Wall anchor
Single
Wall distance min.
165 mm
Wall distance max.
205 mm
Adjustment range
40 mm
Material
Stainless steel
Weight
1.18 kg
Transport dimensions
200 x 135 x 60 mm, 1.18 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
068250
Price
€ 67.00
Information
- Flexible adjustment range from 215 to 275 mm
- Ideal for mounting ladders
- Adjustable wall anchor
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Wall anchor: 1 x
- Assembly instructions: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Wall anchor, adjustable, 165–205 mm, stainless steel | Wall anchor w. Clamping bracket, adjustable, 215–275 mm, stainless steel | Wall anchor w. Clamping bracket, adjustable, 275–375 mm, stainless steel |
|---|---|---|---|
| Wall anchor | Single | Single | Single |
| Wall distance min. | 165 mm | 215 mm | 275 mm |
| Wall distance max. | 205 mm | 275 mm | 375 mm |
| Adjustment range | 40 mm | 60 mm | 100 mm |
| Material | Stainless steel | Stainless steel | Stainless steel |
| Weight | 1.18 kg | 1.28 kg | 2.2 kg |
| Transport dimensions | 200 x 135 x 60 mm, 1.18 kg | 288 x 60 x 120 mm, 1.28 kg | 320 x 150 x 150 mm, 2.2 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 068250 | 068262 | 068261 |
| Price | € 67.00 | € 101.00 | € 135.00 |
| Buy online |
Fixed ladders overview
All fixed ladders / vertical ladders at a glance:
- Single-flight vertical ladders in accordance with DIN 18799-1/-3, DIN 14094-1 and DIN EN ISO 14122-4 (depending on the choice of standard and the situation on site at the exit, additional components such as exit steps, railings and safety doors may be required)
- DIN 18799-1: Stationary multiple-flight vertical ladders on buildings
- DIN 14094-1: Multiple-flight emergency ladder systems (emergency ladders)
- DIN EN ISO 14122-4: Stationary multiple-flight vertical ladders on machinery
