Order no.
: 040740
Window cleaner’s ladders
€ 822.00
RRP without VAT
Specifications
Working height
5.08 m
Ladder length
4.42 m
Number of steps/rungs
5 + 7 steps
Step depth
80 mm
Step/Rung distance
263 mm
Upper outer width
118 mm
Lower outer width
900 mm
Stabiliser width
900 mm
Inclination
70 °
Depth of side-rails
73 mm
Width of side-rails
25 mm
Max. load capacity
120 kg
Design type
To lean against
Weight
15.4 kg
Transport dimensions
3020 x 470 x 230 mm, 15.3 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
040740
Price
€ 822.00
Information

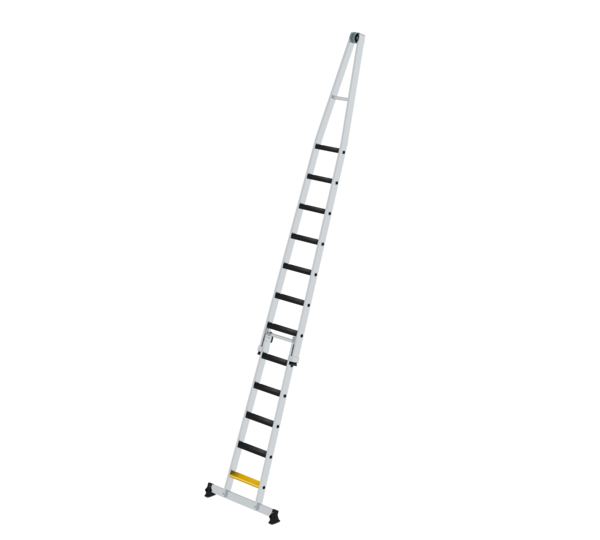

- Step window cleaner's ladder made of aluminium
- Stable rectangular tube side-rails
- 80 mm-deep steps with clip-step R13 slip-resistant step padding
- 4-fold edged step-to-side-rail connection
- Secure push-fit connection with additional hook lock
- Upper ladder with castors and abrasion-resistant contact rubber pad with wedge cut-out
- Lower ladder with nivello® stabiliser for extra stability and safe ascent (enclosed separately)
- Step spacing: 263 mm
- Ladder inclination: 70°
- Maximum load: 120 kg
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- 012017 - Step window cleaner’s ladder lower section with nivello® stabiliser and clip-step R13: 1 x
- 012013 - Step window cleaner’s ladder upper section with clip-step R13: 1 x
- Instructions for use and operation: 1 x
- Stabiliser (enclosed separately): 1 x
Safety. Made in Germany.
Comparison table
| Product name | Window cleaner’s ladders | Window cleaner’s ladders | Window cleaner’s ladders | Window cleaner’s ladders |
|---|---|---|---|---|
| Working height | 5.08 m | 6.75 m | 6.76 m | 6.75 m |
| Ladder length | 4.42 m | 6.1 m | 6.37 m | 6.1 m |
| Number of steps/rungs | 5 + 7 steps | 6 + 5 + 7 steps | 3x5 + 4 steps | 2/6 + 5 + 7 steps |
| Step depth | 80 mm | 80 mm | 80 mm | 80 mm |
| Step/Rung distance | 263 mm | 263 mm | 263 mm | 263 mm |
| Upper outer width | 118 mm | 118 mm | 118 mm | 118 mm |
| Lower outer width | 900 mm | 900 mm | 900 mm | 900 mm |
| Stabiliser width | 900 mm | 900 mm | 900 mm | 900 mm |
| Inclination | 70 ° | 70 ° | 70 ° | 70 ° |
| Depth of side-rails | 73 mm | 73 mm | 73 mm | 73 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm | 25 mm |
| Max. load capacity | 120 kg | 120 kg | 120 kg | 120 kg |
| Design type | To lean against | To lean against | To lean against | To lean against |
| Weight | 15.4 kg | 22.1 kg | 24.4 kg | 25.9 kg |
| Transport dimensions | 3020 x 470 x 230 mm, 15.3 kg | 3020 x 470 x 230 mm, 21.7 kg | 2200 x 470 x 230 mm, 24 kg | 1850 x 470 x 230 mm, 25.9 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 040740 | 040737 | 040741 | 040742 |
| Price | € 822.00 | € 1,182.00 | € 1,357.00 | € 1,420.00 |
| Buy online |
Product video
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
