Specifications
Intended use
Access
Ladder length
3 m
Setting angle
70 °
Clear width between rungs
265 mm
Outer width
90 mm
Ladder feet
Steel point
Depth of side-rails
60 mm
Width of side-rails
45 mm
Step/Rung height
34 mm
Step depth
20 mm
Number of steps/rungs
9 rungs
Step/Rung distance
300 mm
Max. load capacity
150 kg
Persons max.
1
Material
Wood
Weight
9.5 kg
Transport dimensions
3267 x 90 x 60 mm, 9.5 kg
Business division
MUNK Rettungstechnik
Article no.
110007
Information

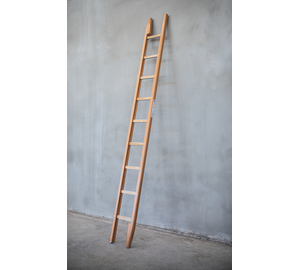

- Wooden folding ladder
- Access ladder compliant with DIN EN 1147
- Collapsible design
- Side-rails made of finger-jointed pine or knot-free Oregon pine
- 9 rungs made of knot-free ash
- Wooden parts painted in colourless varnish
- End fixtures for insertion
- Corrosion-resistant fixtures made of galvanised steel
- Permissible load: 108 kg / 1 person
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
