Working platform set "Fall protection in modular design"
Specifications
Information
- Platform height top edge of all modules: 1,900 mm (fixed, no height adjustment)
- Platform width, platform length, overall length/width/height: varies depending on module
- Solid rubber castors with parking brake (V2A version)
- Swivel castors: puncture-proof and maintenance-free, Ø 306 mm
- Total load: 250 kg per module
Client's Request and Task
Our goal was to develop an innovative working platform set that meets the diverse requirements of quality inspection and acceptance of different types of mobile cranes. The modular working platforms were to offer high flexibility to adapt to each crane type and the associated work steps. Easy handling by two employees and safe working under all weather conditions - even on the driver's cab - without the use of electricity were of central importance.
- Modular working platforms for quality inspection of different mobile cranes
- Adjustable and combinable modules for various work steps
- Manual operability and mobility of the modules by two employees
- Ensuring work safety in all weather conditions, even on the driver's cab
- Stable, reliable, and standard-compliant construction without electrical components
Our Solution

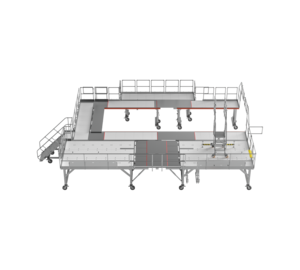

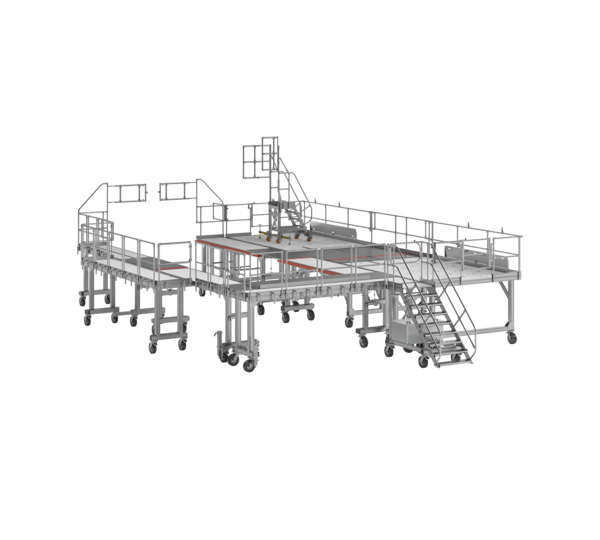

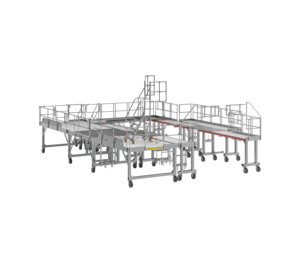

Modular Working Platform Set
The tailor-made working platform set allows flexible adaptation to different mobile crane models through its modular design. The platforms can be easily and quickly coupled, realized by using tension levers with rubber safety to lock the modules without tools.
Simple Module Connection and Expansion
The connection plates in striking yellow ensure clear visibility and are fixed to the modules by a simple plug-in system. The folding platforms expand the working area as needed, and the platforms can be flexibly adapted to the respective crane type through telescopic extensions operable with a crank.
Weather-Independent and Safe Working
The platforms are equipped with an R13 grating covering, which remains slip-resistant even in winter conditions. A protective rubber strip prevents damage to the inside of the crane, and the railing constructions can be adapted as needed to provide maximum safety.
User-Friendliness and Accessibility
The modules can be easily moved by two employees, and the access staircase ensures a safe and comfortable ascent. The robust solid rubber wheel system with parking brake ensures the necessary mobility and stability.
Technical Details
With a uniform working height of 1900 mm and various dimensions depending on the module, the working platforms meet the individual needs of the inspection processes. The high load capacity of 250 kg per module underlines the robustness and long-term durability of the system.
Conclusion
Our working platform set "Fall protection in modular design" represents a forward-looking solution that more than meets the requirements for flexibility, safety, and user-friendliness. By avoiding electricity and focusing on manual and intuitively operable mechanisms, we offer a reliable and standard-compliant working environment. This system redefines the standards for safe and efficient work in the quality inspection of mobile cranes while maximizing the protection of equipment from damage.
