Specifications
Information
- Platform length (PFL 1): 2,860 mm
- Platform width (PFB 1): min. 1,200 mm
- On one platform end face with suspension bracket for stairs
- Platform length (PFL 2): 960 mm
- Platform width (PFB 2): 650 mm
- On the long side of the platform facing away from the object with suspension bracket for stairs
- Platform height top edge (PFH): 1800 mm
- Overall width (B 1): 1,300 mm
- Overall width (B 2): 700 mm
- Clearance height (LH): 1,682 mm (for PFL 1)
- Clearance height (LH): approx. 1,682 mm (for PFL 2)
- Clear width (LW I): min. 1,892 mm at PFL 1
- Clear width (LW II): min. 800 mm at PFB 1
- Step width staircase 1 (SB 1): 1,050 mm
- Step width staircase 2 (SB 2): 600 mm
- Step depth stairs 1/2 (ST): 240 mm
- Inclination of stairs 1/2 (W): 45°
- Fastening: Bottom fixing bracket 10 pieces
- Covering: Aluminium grated
- Surface load: 1.5 kN/m²
- Step load: 150 kg
Client's Request and Task
An innovative manufacturing company required a specialized bridging step for its facility, designed to span roller conveyors and tailored specifically to maintenance requirements. The challenge was to develop a bridging step that is easy to disassemble, ergonomic, and safe for employees, while being stable, reliable, and compliant with standards.
- Specialized bridging step for production facilities
- Easy disassembly for maintenance purposes
- Individual adaptation for various types of facilities
- High stability and work safety
Our Solution
Design of the Bridging Step

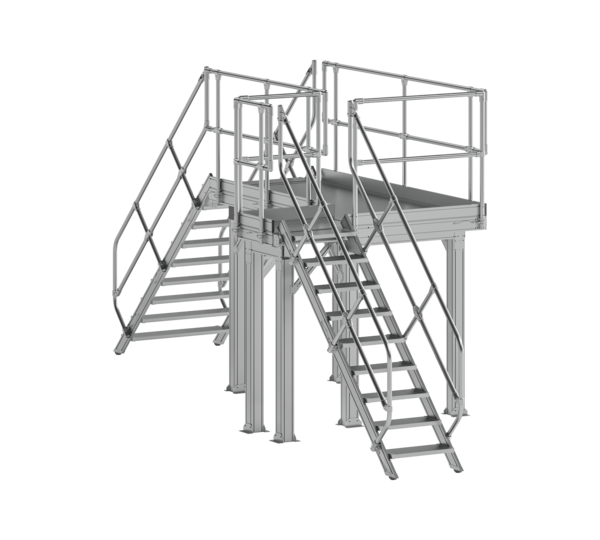

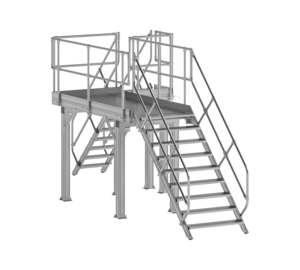

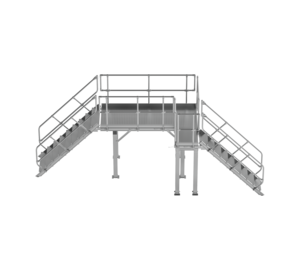

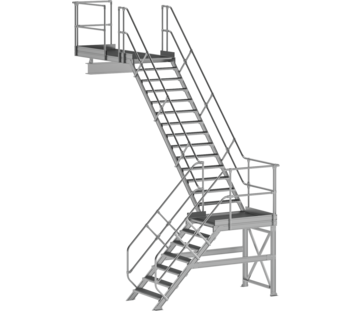

We developed a 45° bridging step in Z-shape, consisting of two platforms with different lengths and widths, connected by two attachable staircases. Six supports with foot angles ensure the secure attachment of the bridging step. A surrounding, plug-in handrail and railing system provide additional safety.
Technical Features
The main platform has a length of 2860 mm and a width of at least 1200 mm, while the second platform is 960 mm long and 650 mm wide. Both platforms are located at a height of 1800 mm above the ground. The staircases have a 45° inclination, with step widths of 1050 mm and 600 mm, and a step depth of 240 mm. The covering is made of grooved aluminium.
Safety and Comfort Aspects
The platforms are designed to carry a surface load of 1.5 kN/m², with a step load capacity of up to 150 kg.
Conclusion
The 45° bridging step in Z-shape offers a tailor-made, safe, and flexible solution for the specific requirements of the manufacturing company. With its easy disassembly, ergonomic design, and high stability, it improves efficiency and safety during maintenance work at the production facilities.
