Show all photos
Order no.
: 033032

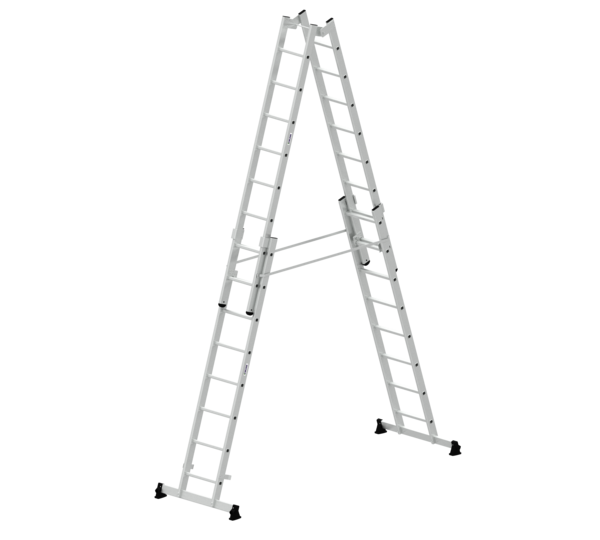

Double-sided rung ladder, 4-section with nivello® stabiliser
€ 1,236.00
RRP without VAT
Specifications
Working height
5.1 m
Step design
Rungs
Number of steps/rungs
4x
8 rungs
Step/Rung height
30 mm
Step depth
30 mm
Step/Rung distance
280 mm
Type of non-slip protection
Aluminium corrugated
Retracted length
2.5 m
Extended length
4 m
Base spread
2.23 m
Inclination
70 °
Stabiliser width
930 mm
Depth of side-rails
73 mm
Width of side-rails
25 mm
Max. load capacity
150 kg
Design type
Freestanding | Double-sided access | 4-part
Weight
27 kg
Transport dimensions
2495 x 450 x 320 mm, 27 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
033032
Price
€ 1,236.00
Information
- Double-sided rung ladder made of aluminium
- Stable rectangular tube side-rails
- Rectangular rungs grooved on both sides, 30 x 30 mm
- 4-fold edged rung-to-side-rail connection
- nivello® stabiliser with optimum width for the selected product, ensuring an extra safe stance and ascent thanks to nivello® ladder shoes with 2-axis inclination technology, working angle check and exchangeable foot plates. The stabiliser is enclosed separately and is screwed to the lower end of the rail in two places
- Height adjustable from rung to rung in no time
- Plastic end caps on upper side-rail end
- Spreader lock with two high-strength polyester straps
- Rung distance: 280 mm
- Ladder width: 420 mm (without stabiliser)
- Maximum load: 150 kg
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
Certificates
Safety. Made in Germany.
Comparison table
| Product name | Double-sided rung ladder, 4-section with nivello® stabiliser 4x8 rungs | Double-sided rung ladder, 4-section with nivello® stabiliser 4x10 rungs | Double-sided rung ladder, 4-section with nivello® stabiliser 4x12 rungs |
|---|---|---|---|
| Working height | 5.1 m | 6 m | 7 m |
| Step design | Rungs | Rungs | Rungs |
| Number of steps/rungs | 4x8 rungs | 4x10 rungs | 4x12 rungs |
| Step/Rung height | 30 mm | 30 mm | 30 mm |
| Step depth | 30 mm | 30 mm | 30 mm |
| Step/Rung distance | 280 mm | 280 mm | 280 mm |
| Type of non-slip protection | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated |
| Retracted length | 2.5 m | 3.06 m | 3.62 m |
| Extended length | 4 m | 4.8 m | 5.85 m |
| Base spread | 2.23 m | 2.69 m | 3.33 m |
| Inclination | 70 ° | 70 ° | 70 ° |
| Stabiliser width | 930 mm | 1.2 m | 1.2 m |
| Depth of side-rails | 73 mm | 73 mm | 73 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg |
| Design type | Freestanding | Double-sided access | 4-part | Freestanding | Double-sided access | 4-part | Freestanding | Double-sided access | 4-part |
| Weight | 27 kg | 32 kg | 37 kg |
| Transport dimensions | 2495 x 450 x 320 mm, 27 kg | 3057 x 450 x 320 mm, 32 kg | 3613 x 450 x 320 mm, 37 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 033032 | 033040 | 033048 |
| Price | € 1,236.00 | € 1,482.00 | € 1,813.00 |
| Buy online |
Note: Working heights
- National regulations (e.g. TRBS 2121 Part 2 in Germany) must be complied with with regard to the maximum working height when using the ladder as a workstation.
- Information on TRBS 2121 Part 2 has been summarised on our Service page
- Read our tips and tricks on how to calculate working height
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
