Show all photos
Order no.
: 033510

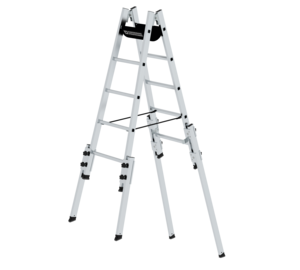

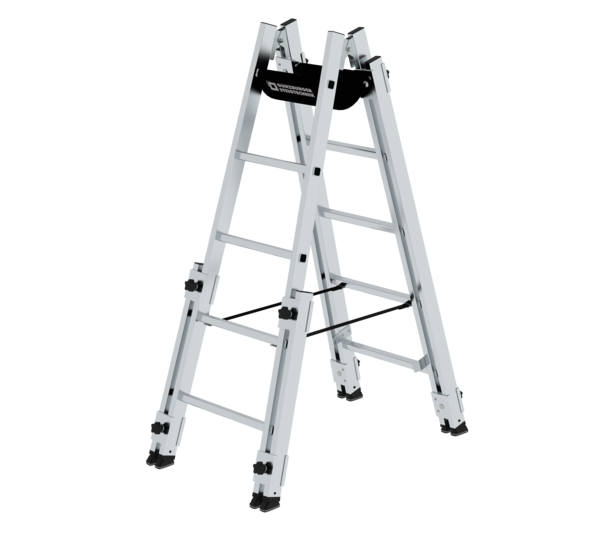

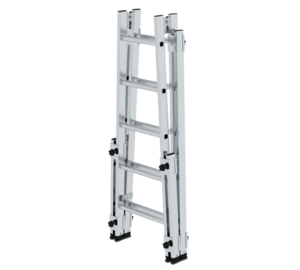

Double-sided rung ladder suitable for stairs
€ 651.00
RRP without VAT
Specifications
Working height
3.6 m
Step design
Rungs
Number of steps/rungs
2x
5 rungs
Step/Rung height
30 mm
Step depth
30 mm
Step/Rung distance
280 mm
Type of non-slip protection
Aluminium corrugated
Height
1.47 m
Ladder length
1.5 m
Base spread
1.08 m
Base spread max. extended
1.56 m
Inclination
70 °
Lower outer width, ascent unit extended
640 mm
Lower outer width, ladder retracted
600 mm
Lower outer width, support part extended
700 mm
Max. adjustment range on the ascent unit
400 mm
Max. adjustment range on the support part
1 m
Depth of side-rails
58 mm
Width of side-rails
25 mm
Max. load capacity
150 kg
Design type
Freestanding | Double-sided access | Suitable for stairs
Weight
11 kg
Transport dimensions
1535 x 590 x 225 mm, 11 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
033510
Price
€ 651.00
Information
- Double-sided rung ladder made of aluminium
- Stable rectangular tube side-rails
- Rectangular rungs grooved on both sides, 30 x 30 mm
- 4-fold edged rung-to-side-rail connection
- Conical side-rail guide for safe stance
- nivello® ladder shoes with patented 2-axis inclination technology
- Solid, galvanised steel hinges with screw attachment
- Plastic end caps on upper side-rail end
- Spreader lock with two high-strength polyester straps
- Transport securing straps
- Rung distance: 280 mm
- Four bar extensions with solid sliding guide and ergonomic star handle
- Adjustment range on the ascent section: max. 400 mm
- Adjustment range on the support section: max. 1,000 mm
- Maximum load: 150 kg
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
Certificates
Safety. Made in Germany.
Comparison table
| Product name | Double-sided rung ladder suitable for stairs 2x5 rungs | Double-sided rung ladder suitable for stairs 2x6 rungs | Double-sided rung ladder suitable for stairs 2x7 rungs | Double-sided rung ladder suitable for stairs 2x8 rungs |
|---|---|---|---|---|
| Working height | 3.6 m | 3.9 m | 4.2 m | 4.5 m |
| Step design | Rungs | Rungs | Rungs | Rungs |
| Number of steps/rungs | 2x5 rungs | 2x6 rungs | 2x7 rungs | 2x8 rungs |
| Step/Rung height | 30 mm | 30 mm | 30 mm | 30 mm |
| Step depth | 30 mm | 30 mm | 30 mm | 30 mm |
| Step/Rung distance | 280 mm | 280 mm | 280 mm | 280 mm |
| Type of non-slip protection | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated |
| Height | 1.47 m | 1.75 m | 2.01 m | 2.28 m |
| Ladder length | 1.5 m | 1.8 m | 2.1 m | 2.4 m |
| Base spread | 1.08 m | 1.26 m | 1.43 m | 1.6 m |
| Base spread max. extended | 1.56 m | 1.72 m | 1.9 m | 2.06 m |
| Inclination | 70 ° | 70 ° | 70 ° | 70 ° |
| Lower outer width, ascent unit extended | 640 mm | 670 mm | 700 mm | 730 mm |
| Lower outer width, ladder retracted | 600 mm | 630 mm | 660 mm | 660 mm |
| Lower outer width, support part extended | 700 mm | 730 mm | 760 mm | 790 mm |
| Max. adjustment range on the ascent unit | 400 mm | 400 mm | 400 mm | 400 mm |
| Max. adjustment range on the support part | 1 m | 1 m | 1 m | 1 m |
| Depth of side-rails | 58 mm | 58 mm | 58 mm | 58 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm | 25 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg |
| Design type | Freestanding | Double-sided access | Suitable for stairs | Freestanding | Double-sided access | Suitable for stairs | Freestanding | Double-sided access | Suitable for stairs | Freestanding | Double-sided access | Suitable for stairs |
| Weight | 11 kg | 14 kg | 14.5 kg | 16.5 kg |
| Transport dimensions | 1535 x 590 x 225 mm, 11 kg | 1810 x 615 x 225 mm, 14 kg | 2095 x 645 x 220 mm, 14.5 kg | 2375 x 675 x 220 mm, 16.5 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 033510 | 033512 | 033514 | 033516 |
| Price | € 651.00 | € 703.00 | € 741.00 | € 786.00 |
| Buy online |
Note: Working heights
- National regulations (e.g. TRBS 2121 Part 2 in Germany) must be complied with with regard to the maximum working height when using the ladder as a workstation.
- Information on TRBS 2121 Part 2 has been summarised on our Service page
- Read our tips and tricks on how to calculate working height
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
