Order no.
: 033208

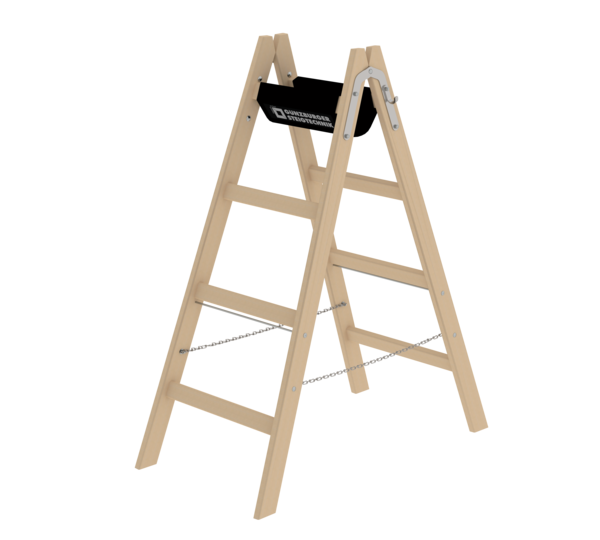

Double-sided rung ladder wood
€ 116.00
RRP without VAT
Specifications
Working height
2.5 m
Step design
Rungs
Number of steps/rungs
2x
4 rungs
Step/Rung distance
280 mm
Height
1.14 m
Ladder length
1.23 m
Base spread
830 mm
Lower outer width
500 mm
Upper outer width
380 mm
Depth of side-rails
60 mm
Max. load capacity
150 kg
Design type
Freestanding | Double-sided access
Weight
6.5 kg
Transport dimensions
1225 x 490 x 123 mm, 6.5 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
033208
Price
€ 116.00
Information
- Double-sided rung ladder made of wood
- Side-rails made of finger-jointed pine or knot-free Caroline pine, rungs made of ash
- Pegged rung-to-side-rail connection, resulting in smooth side-rail surface
- Sturdy steel hinges
- Supplied as standard with practical bucket hook
- Spreader lock with two galvanized steel chains
- Rung distance: 280 mm
- Maximum load: 150 kg
- These products are covered by the statutory warranty
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Double-sided rung ladder wood 2x4 rungs | Double-sided rung ladder wood 2x5 rungs | Double-sided rung ladder wood 2x6 rungs | Double-sided rung ladder wood 2x7 rungs | Double-sided rung ladder wood 2x8 rungs | Double-sided rung ladder wood 2x10 rungs |
|---|---|---|---|---|---|---|
| Working height | 2.5 m | 2.8 m | 3 m | 3.3 m | 3.6 m | 4.2 m |
| Step design | Rungs | Rungs | Rungs | Rungs | Rungs | Rungs |
| Number of steps/rungs | 2x4 rungs | 2x5 rungs | 2x6 rungs | 2x7 rungs | 2x8 rungs | 2x10 rungs |
| Step/Rung distance | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Height | 1.14 m | 1.4 m | 1.67 m | 1.93 m | 2.19 m | 2.72 m |
| Ladder length | 1.23 m | 1.51 m | 1.79 m | 2.07 m | 2.34 m | 2.91 m |
| Base spread | 830 mm | 990 mm | 1.09 m | 1.25 m | 1.3 m | 1.5 m |
| Lower outer width | 500 mm | 530 mm | 560 mm | 590 mm | 620 mm | 680 mm |
| Upper outer width | 380 mm | 380 mm | 380 mm | 380 mm | 380 mm | 380 mm |
| Depth of side-rails | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| Design type | Freestanding | Double-sided access | Freestanding | Double-sided access | Freestanding | Double-sided access | Freestanding | Double-sided access | Freestanding | Double-sided access | Freestanding | Double-sided access |
| Weight | 6.5 kg | 7.5 kg | 10 kg | 10.5 kg | 14.5 kg | 17.5 kg |
| Transport dimensions | 1225 x 490 x 123 mm, 6.5 kg | 1505 x 520 x 123 mm, 7.5 kg | 1785 x 550 x 123 mm, 10 kg | 2065 x 580 x 123 mm, 10.5 kg | 2344 x 610 x 123 mm, 14.5 kg | 2910 x 670 x 123 mm, 17.5 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 033208 | 033210 | 033212 | 033214 | 033216 | 033220 |
| Price | € 116.00 | € 140.00 | € 155.00 | € 177.00 | € 200.00 | € 271.00 |
| Buy online |
Note: Working heights
- National regulations (e.g. TRBS 2121 Part 2 in Germany) must be complied with with regard to the maximum working height when using the ladder as a workstation.
- Information on TRBS 2121 Part 2 has been summarised on our Service page
- Read our tips and tricks on how to calculate working height
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
