Specifications
Working height
3.05 m
Step design
Rungs
Number of steps/rungs
2x
6 rungs
Step/Rung height
30 mm
Step depth
30 mm
Step/Rung distance
280 mm
Type of non-slip protection
Aluminium corrugated
Height
1.73 m
Ladder length
1.83 m
Base spread
1.07 m
Inclination
70 °
Lower outer width
530 mm
Depth of side-rails
58 mm
Width of side-rails
25 mm
Max. load capacity
150 kg
Design type
Freestanding | Double-sided access
Weight
7.5 kg
Transport dimensions
1813 x 525 x 177 mm, 7.5 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
033012
Price
€ 275.00
Information

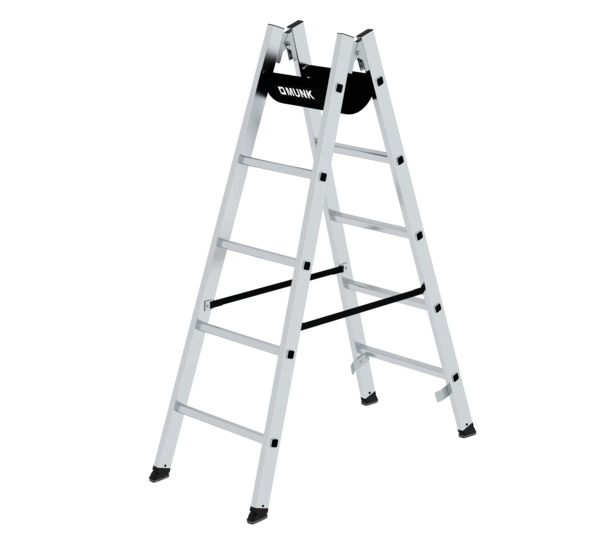

- Double-sided rung ladder made of aluminium
- Stable rectangular tube side-rails
- Rectangular rungs grooved on both sides, 30 x 30 mm
- 4-fold edged rung-to-side-rail connection
- Conical side-rail guide for safe stance
- nivello® ladder shoes with patented 2-axis inclination technology
- Solid, galvanised steel hinges with screw attachment
- Plastic end caps on upper side-rail end
- Spreader lock with two high-strength polyester straps
- Rung distance: 280 mm
- Transport securing straps
- Maximum load: 150 kg
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
Certificates
Safety. Made in Germany.
Comparison table
| Product name | Double-sided rung ladder 2x6 rungs | Double-sided rung ladder 2x8 rungs | Double-sided rung ladder 2x10 rungs | Double-sided rung ladder 2x12 rungs | Double-sided rung ladder 2x14 rungs | Double-sided rung ladder 2x16 rungs |
|---|---|---|---|---|---|---|
| Working height | 3.05 m | 3.6 m | 4.1 m | 4.65 m | 5.2 m | 5.7 m |
| Step design | Rungs | Rungs | Rungs | Rungs | Rungs | Rungs |
| Number of steps/rungs | 2x6 rungs | 2x8 rungs | 2x10 rungs | 2x12 rungs | 2x14 rungs | 2x16 rungs |
| Step/Rung height | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Step depth | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Step/Rung distance | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Type of non-slip protection | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated |
| Height | 1.73 m | 2.27 m | 2.8 m | 3.33 m | 3.86 m | 4.39 m |
| Ladder length | 1.83 m | 2.4 m | 2.95 m | 3.51 m | 4.07 m | 4.63 m |
| Base spread | 1.07 m | 1.36 m | 1.65 m | 1.94 m | 2.23 m | 3.01 m |
| Inclination | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Lower outer width | 530 mm | 590 mm | 650 mm | 700 mm | 760 mm | 820 mm |
| Depth of side-rails | 58 mm | 58 mm | 58 mm | 58 mm | 73 mm | 73 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| Design type | Freestanding | Double-sided access | Freestanding | Double-sided access | Freestanding | Double-sided access | Freestanding | Double-sided access | Freestanding | Double-sided access | Freestanding | Double-sided access |
| Weight | 7.5 kg | 10.5 kg | 12.5 kg | 16 kg | 18 kg | 21 kg |
| Transport dimensions | 1813 x 525 x 177 mm, 7.5 kg | 2373 x 585 x 177 mm, 10.5 kg | 2933 x 640 x 178 mm, 12.5 kg | 3488 x 700 x 178 mm, 16 kg | 4047 x 755 x 205 mm, 18 kg | 4610 x 815 x 205 mm, 21 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 033012 | 033016 | 033020 | 033024 | 033028 | 033029 |
| Price | € 275.00 | € 350.00 | € 442.00 | € 550.00 | € 655.00 | € 789.00 |
| Buy online |
Product video
Note: Working heights
- National regulations (e.g. TRBS 2121 Part 2 in Germany) must be complied with with regard to the maximum working height when using the ladder as a workstation.
- Information on TRBS 2121 Part 2 has been summarised on our Service page
- Read our tips and tricks on how to calculate working height
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
