Specifications
Working height
2.45 m
Step design
Steps
Number of steps/rungs
2x
4 steps
Step depth
80 mm
Step/Rung distance
235 mm
Type of non-slip protection
Aluminium corrugated
Height
1 m
Ladder length
1.1 m
Base spread
920 mm
Inclination
70 °
Lower outer width
490 mm
Depth of side-rails
73 mm
Max. load capacity
150 kg
Design type
Freestanding | Double-sided access
Weight
8 kg
Transport dimensions
1053 x 490 x 210 mm, 8 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
034108
Price
€ 426.00
Information

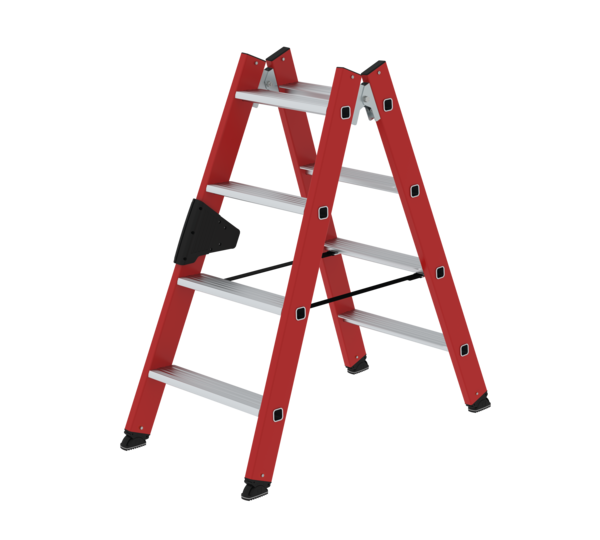

- Double-sided step ladder made of glass-fibre reinforced plastic/aluminium
- Side-rails made of reinforced fibre glass profiles (min. 10 years ageing resistance)
- Grooved steps with a depth of 80 mm, made of aluminium
- 4-fold edged step-to-side-rail connection
- Conical side-rail guide for safe stance
- nivello® ladder shoes with patented 2-axis inclination technology
- ergo-pad® grip area with clamping mechanism
- Solid, galvanised steel hinges with screw attachment
- Spreader lock with two high-strength polyester straps
- Step spacing: 235 mm
- Ladder inclination: 70°
- Maximum load: 150 kg
- Suitable for working near or on live parts
- Tested up to 1000 V as per DIN EN 61478:2002 Clause 6.5.1 and A1:2004 Category 1
- Note: Products with GRP content are excluded from exchange due to their sensitivity, the statutory warranty applies (resistance to ageing 10 years).
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
Certificates
Safety. Made in Germany.
Comparison table
| Product name | Double-sided step ladder GFRP / aluminium 2x4 steps | Double-sided step ladder GFRP / aluminium 2x6 steps | Double-sided step ladder GFRP / aluminium 2x8 steps | Double-sided step ladder GFRP / aluminium 2x10 steps | Double-sided step ladder GFRP / aluminium 2x12 steps |
|---|---|---|---|---|---|
| Working height | 2.45 m | 2.9 m | 3.4 m | 3.85 m | 4.3 m |
| Step design | Steps | Steps | Steps | Steps | Steps |
| Number of steps/rungs | 2x4 steps | 2x6 steps | 2x8 steps | 2x10 steps | 2x12 steps |
| Step depth | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Step/Rung distance | 235 mm | 235 mm | 235 mm | 235 mm | 235 mm |
| Type of non-slip protection | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated |
| Height | 1 m | 1.47 m | 1.92 m | 2.41 m | 2.88 m |
| Ladder length | 1.1 m | 1.6 m | 2.1 m | 2.6 m | 3.1 m |
| Base spread | 920 mm | 1.23 m | 1.68 m | 1.91 m | 2.26 m |
| Inclination | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Lower outer width | 490 mm | 550 mm | 600 mm | 660 mm | 730 mm |
| Depth of side-rails | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| Design type | Freestanding | Double-sided access | Freestanding | Double-sided access | Freestanding | Double-sided access | Freestanding | Double-sided access | Freestanding | Double-sided access |
| Weight | 8 kg | 11.5 kg | 14.5 kg | 19 kg | 22.8 kg |
| Transport dimensions | 1053 x 490 x 210 mm, 8 kg | 1555 x 550 x 207 mm, 11.5 kg | 2055 x 605 x 207 mm, 14.5 kg | 2555 x 662 x 207 mm, 19 kg | 3057 x 720 x 207 mm, 22.8 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 034108 | 034112 | 034116 | 034120 | 034124 |
| Price | € 426.00 | € 497.00 | € 615.00 | € 731.00 | € 852.00 |
| Buy online |
Product video
Note: Working heights
- National regulations (e.g. TRBS 2121 Part 2 in Germany) must be complied with with regard to the maximum working height when using the ladder as a workstation.
- Information on TRBS 2121 Part 2 has been summarised on our Service page
- Read our tips and tricks on how to calculate working height
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
