Order no.: 034208

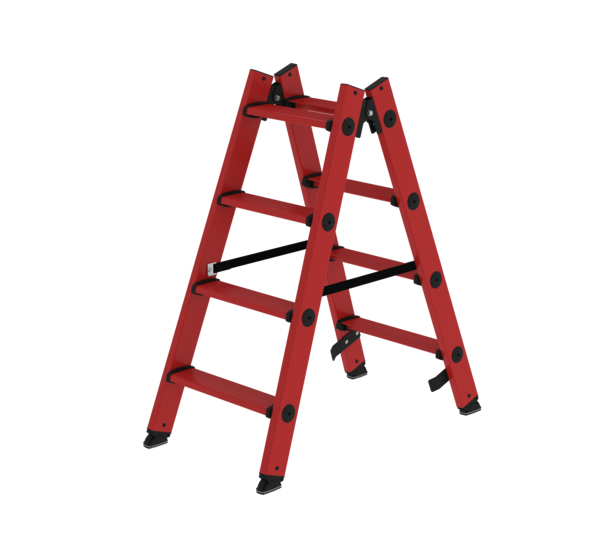

Double-sided step ladder GFRP
€ 710.00
RRP without VAT
Specifications
Working height
2.4 m
Step design
Steps
Number of steps/rungs
2x
4 steps
Step depth
80 mm
Step/Rung distance
235 mm
Height
1 m
Ladder length
1.06 m
Base spread
880 mm
Inclination
70 °
Lower outer width
480 mm
Upper outer width
364 mm
Depth of side-rails
73 mm
Width of side-rails
25 mm
Max. load capacity
150 kg
Design type
Freestanding | Double-sided access
BG BAU supported
No
Weight
9.6 kg
Transport dimensions
1057 x 477 x 219 mm, 9.6 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
034208
Price
€ 710.00
Information
- Double-sided stepladder made of GFRP
- Side-rails and steps made of glass-fibre reinforced plastic profiles (min. 10 years ageing resistance when stored and used as intended)
- High-strength step-to-side-rail connection
- Conical side-rail guide for safe stance
- nivello® ladder shoes with patented 2-axis inclination technology
- Transport securing straps
- Solid, powder-coated, galvanised steel hinges with screw attachment
- Spreader lock with two high-strength polyester straps
- Step spacing: 235 mm
- Ladder inclination: 70°
- Maximum load: 150 kg
- Suitable for working near or on live parts
- Tested according to EN 61478:2002 + A1 (2004), 6.5.1 Category 2: 60,000 V
- Note: Products with GFRP content are non-returnable, due to their sensitivity; the statutory warranty applies (ageing resistance 10 years)
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Double-sided step ladder GFRP 2x4 steps | Double-sided step ladder GFRP 2x5 steps | Double-sided step ladder GFRP 2x6 steps | Double-sided step ladder GFRP 2x7 steps |
|---|---|---|---|---|
| Working height | 2.4 m | 2.7 m | 2.9 m | 3.1 m |
| Step design | Steps | Steps | Steps | Steps |
| Number of steps/rungs | 2x4 steps | 2x5 steps | 2x6 steps | 2x7 steps |
| Step depth | 80 mm | 80 mm | 80 mm | 80 mm |
| Step/Rung distance | 235 mm | 235 mm | 235 mm | 235 mm |
| Height | 1 m | 1.23 m | 1.47 m | 1.7 m |
| Ladder length | 1.06 m | 1.31 m | 1.55 m | 1.81 m |
| Base spread | 880 mm | 1.01 m | 1.22 m | 1.39 m |
| Inclination | 70 ° | 70 ° | 70 ° | 70 ° |
| Lower outer width | 480 mm | 500 mm | 530 mm | 550 mm |
| Upper outer width | 364 mm | 364 mm | 364 mm | 364 mm |
| Depth of side-rails | 73 mm | 73 mm | 73 mm | 73 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm | 25 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg |
| Design type | Freestanding | Double-sided access | Freestanding | Double-sided access | Freestanding | Double-sided access | Freestanding | Double-sided access |
| BG BAU supported | No | No | No | No |
| Weight | 9.6 kg | 11.7 kg | 13.8 kg | 16.1 kg |
| Transport dimensions | 1057 x 477 x 219 mm, 9.6 kg | 1306 x 506 x 220 mm, 11.7 kg | 1553 x 530 x 221 mm, 13.8 kg | 1806 x 556 x 220 mm, 16.1 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 034208 | 034210 | 034212 | 034214 |
| Price | € 710.00 | € 810.00 | € 940.00 | € 1,050.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
