Order no.
: 042710

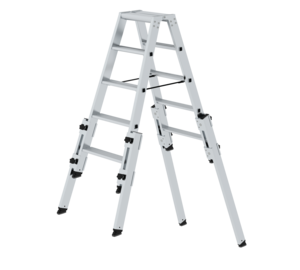

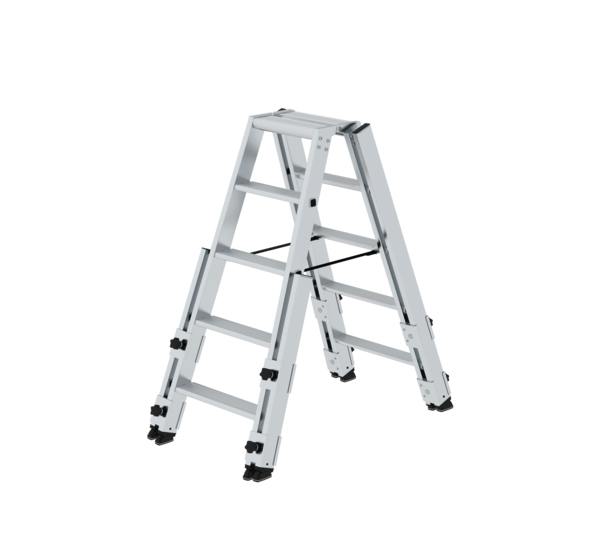

Double-sided stepladder suitable for stairs
€ 662.00
RRP without VAT
Specifications
Working height
2.95 m
Step design
Steps
Number of steps/rungs
2x
5 steps
Step depth
80 mm
Step/Rung distance
235 mm
Type of non-slip protection
Aluminium corrugated
Height
1.14 m
Total length folded
1.24 m
Base spread
1.03 m
Base spread max. extended
1.39 m
Inclination
70 °
Lower outer width, ascent unit extended
616 mm
Lower outer width, ladder retracted
580 mm
Lower outer width, support part extended
670 mm
Max. adjustment range on the ascent unit
300 mm
Max. adjustment range on the support part
800 mm
Depth of side-rails
73 mm
Width of side-rails
24.5 mm
Max. load capacity
150 kg
Design type
Freestanding | Double-sided access | Suitable for stairs
Weight
13.6 kg
Transport dimensions
1250 x 600 x 210 mm, 13.6 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
042710
Price
€ 662.00
Information
- Step ladder made of aluminium
- Stable rectangular tube side-rails
- Grooved steps with a depth of 80 mm
- 4-fold edged step-to-side-rail connection
- Conical side-rail guide for safe stance
- Four bar extensions with solid sliding guide and ergonomic star handle
- Seamlessly adjustable: ascent section up to 300 mm, support section up to 800 mm
- External adjustment mechanism / star handle for safe walking on the ladder without tripping hazard
- nivello® ladder shoes with patented 2-axis inclination technology
- 4-fold bolted, solid ladder joint made of aluminium
- Can optionally be equipped with clip-step step padding, clip-step R13 and clip-step relax
- Step spacing: 235 mm
- Maximum load: 150 kg
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Double-sided stepladder suitable for stairs 2x5 steps | Double-sided stepladder suitable for stairs 2x6 steps | Double-sided stepladder suitable for stairs 2x7 steps | Double-sided stepladder suitable for stairs 2x8 steps |
|---|---|---|---|---|
| Working height | 2.95 m | 3.2 m | 3.45 m | 3.7 m |
| Step design | Steps | Steps | Steps | Steps |
| Number of steps/rungs | 2x5 steps | 2x6 steps | 2x7 steps | 2x8 steps |
| Step depth | 80 mm | 80 mm | 80 mm | 80 mm |
| Step/Rung distance | 235 mm | 235 mm | 235 mm | 235 mm |
| Type of non-slip protection | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated |
| Height | 1.14 m | 1.38 m | 1.61 m | 1.85 m |
| Total length folded | 1.24 m | 1.49 m | 1.74 m | 1.99 m |
| Base spread | 1.03 m | 1.2 m | 1.37 m | 1.54 m |
| Base spread max. extended | 1.39 m | 1.46 m | 1.73 m | 1.91 m |
| Inclination | 70 ° | 70 ° | 70 ° | 70 ° |
| Lower outer width, ascent unit extended | 616 mm | 644 mm | 673 mm | 702 mm |
| Lower outer width, ladder retracted | 580 mm | 610 mm | 640 mm | 670 mm |
| Lower outer width, support part extended | 670 mm | 710 mm | 730 mm | 760 mm |
| Max. adjustment range on the ascent unit | 300 mm | 300 mm | 300 mm | 300 mm |
| Max. adjustment range on the support part | 800 mm | 800 mm | 800 mm | 800 mm |
| Depth of side-rails | 73 mm | 73 mm | 73 mm | 73 mm |
| Width of side-rails | 24.5 mm | 24.5 mm | 24.5 mm | 24.5 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg |
| Design type | Freestanding | Double-sided access | Suitable for stairs | Freestanding | Double-sided access | Suitable for stairs | Freestanding | Double-sided access | Suitable for stairs | Freestanding | Double-sided access | Suitable for stairs |
| Weight | 13.6 kg | 15 kg | 16.5 kg | 17.9 kg |
| Transport dimensions | 1250 x 600 x 210 mm, 13.6 kg | 1250 x 610 x 210 mm, 15 kg | 1750 x 640 x 210 mm, 16.5 kg | 1850 x 680 x 210 mm, 17.9 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 042710 | 042712 | 042714 | 042716 |
| Price | € 662.00 | € 709.00 | € 744.00 | € 780.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
