Order no.
: 033806

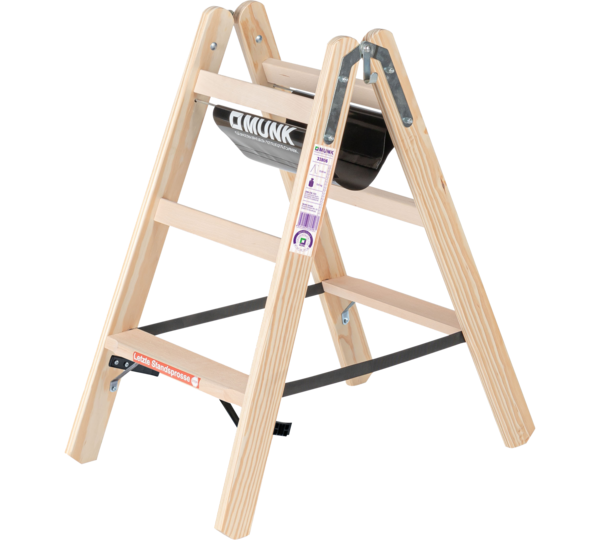

Double-sided stepladder wood
€ 134.00
RRP without VAT
Specifications
Working height
2.25 m
Step design
Steps + Rungs mixed
Number of steps/rungs
2x
3 steps
Step/Rung height
20 mm
Step depth
80 mm
Step/Rung distance
250 mm
Ladder length
885 mm
Total length folded
885 mm
Base spread
750 mm
Inclination
70 °
Lower outer width
480 mm
Upper outer width
430 mm
Depth of side-rails
65 mm
Width of side-rails
22 mm
Max. load capacity
150 kg
Design type
Freestanding | Double-sided access
Weight
5 kg
Transport dimensions
900 x 470 x 160 mm, 5 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
033806
Price
€ 134.00
Information
- Double-sided step ladder made of wood
- Side bars made of solid sawn coniferous wood, steps made of beech wood
- Grooved steps with a depth of 80 mm
- Die obersten beiden Sprossen aus Buche 22 x 44 mm
- Pegged step-to-side-rail connection, resulting in smooth side-rail surface
- Sturdy steel hinges
- Supplied as standard with practical bucket hook
- Spread protection through firmly screwed textile straps
- plastic transport lock at the base of the ladder
- Step spacing: 230 mm
- Ladder inclination: 70°
- Maximum load: 150 kg
- These products are covered by the statutory warranty
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Double-sided stepladder wood 2x3 steps | Double-sided stepladder wood 2x4 steps | Double-sided stepladder wood 2x5 steps | Double-sided stepladder wood 2x6 steps | Double-sided stepladder wood 2x7 steps | Double-sided stepladder wood |
|---|---|---|---|---|---|---|
| Working height | 2.25 m | 2.48 m | 2.71 m | 3.1 m | 3.18 m | 3.5 m |
| Step design | Steps + Rungs mixed | Steps + Rungs mixed | Steps + Rungs mixed | Steps + Rungs mixed | Steps + Rungs mixed | Steps + Rungs mixed |
| Number of steps/rungs | 2x3 steps | 2x4 steps | 2x5 steps | 2x6 steps | 2x7 steps | 2x8 steps |
| Step/Rung height | 20 mm | 20 mm | 20 mm | 20 mm | 20 mm | 20 mm |
| Step depth | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Step/Rung distance | 250 mm | 250 mm | 250 mm | 250 mm | 250 mm | 250 mm |
| Ladder length | 885 mm | 1.14 m | 1.39 m | 1.63 m | 1.89 m | 2.14 m |
| Total length folded | 885 mm | 1.14 m | 1.39 m | 1.63 m | 1.89 m | 2.14 m |
| Base spread | 750 mm | 925 mm | 1.09 m | 1.27 m | 1.46 m | 1.61 m |
| Inclination | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Lower outer width | 480 mm | 505 mm | 530 mm | 555 mm | 580 mm | 610 mm |
| Upper outer width | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Depth of side-rails | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Width of side-rails | 22 mm | 22 mm | 22 mm | 22 mm | 22 mm | 22 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| Design type | Freestanding | Double-sided access | Freestanding | Double-sided access | Freestanding | Double-sided access | Freestanding | Double-sided access | Freestanding | Double-sided access | Freestanding | Double-sided access |
| Weight | 5 kg | 7.4 kg | 9.2 kg | 11 kg | 12.8 kg | 14 kg |
| Transport dimensions | 900 x 470 x 160 mm, 5 kg | 1135 x 510 x 145 mm, 7.4 kg | 1385 x 535 x 145 mm, 9.2 kg | 1630 x 560 x 145 mm, 11 kg | 1885 x 585 x 145 mm, 12.8 kg | 2140 x 615 x 145 mm, 11 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 033806 | 033808 | 033810 | 033812 | 033814 | 033816 |
| Price | € 134.00 | € 148.00 | € 185.00 | € 230.00 | € 250.00 | € 285.00 |
| Buy online |
Note: Working heights
- National regulations (e.g. TRBS 2121 Part 2 in Germany) must be complied with with regard to the maximum working height when using the ladder as a workstation.
- Information on TRBS 2121 Part 2 has been summarised on our Service page
- Read our tips and tricks on how to calculate working height
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
