Order no.
: 115134

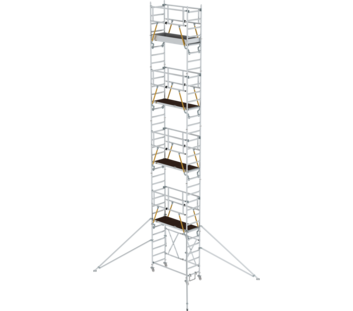

Folding scaffolding SG 0.75 x 1.80 m with outrigger
€ 6,020.00
RRP without VAT
Specifications
Working height
6.04 m
Scaffolding height
5.31 m
Platform height
4.04 m
Platform width
750 mm
Platform length
1.8 m
Load capacity
1.5 kN/m2
Weight
156 kg
Transport dimensions
3100 x 1100 x 900 mm, 156 kg
Indoor use, central installation
possible & allowed
Indoor use, lateral installation
possible & allowed
Outdoor use, central installation
possible & allowed
Outdoor use, lateral installation
possible & allowed
Ballasting of scaffolding, indoor, central installation
0 kg
Ballasting of scaffolding, indoor, lateral installation
0 kg
Ballasting of scaffolding, outdoor, central installation
0 kg
Ballasting of scaffolding, outdoor, lateral installation
0 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
115134
Price
€ 6,020.00
Information
- Mobile scaffolding made of sturdy round aluminium tubing with welded frame parts
- Secured all around thanks to leading railing, can be assembled and dismantled from level to level
- All scaffolding parts are also available individually as spare or extension parts
- Folding frame made of rectangular tube side-rails with self-locking hinges
- Stable and flexible thanks to folding outriggers
- Space-saving transport and storage
- Four Ø 125 mm swivel castors with centric load application and spindles
- Slip-resistant platform for secure standing
- Aluminium toe boards and railing frames with integrated knee board as safety railing (from platform height of 2.8 m and higher)
- Simple setup and removal without tools
- Different platform widths available (0.75 / 1.35 m)
- Platform lengths of 2.45 m and 3.0 m upon request
- Working heights up to 13.88 m
- GS-tested as per DIN EN 1004
- Load class/scaffolding group 2: 1.5 kN/m²
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- 027971 - Folding frame unit, 0.75 m: 1 x
- 027904 - Push-fit frame, 0.75 m.: 2 x
- 027992 - Safety railing for mobile scaffolding: 4 x
- 027931 - Platform with trapdoor: 2 x
- 027913 - Toe board front side: 2 x
- 027943 - Toe board long side: 2 x
- 027935 - Horizontal strut: 1 x
- 027927 - Triangular outrigger: 4 x
- 027973 - Swivel castor with spindle: 4 x
- 027940 - Step-on bracket: 1 x
- Instructions for assembly and use EN 1004-2 - de: 1 x
- 027905 - Push-fit frame, 0.75 m.: 2 x
Safety. Made in Germany.
Comparison table
| Product name | Folding scaffolding SG 0.75 x 1.80 m with outrigger Platform height 4.04 m | Folding scaffolding SG 0.75 x 1.80 m with outrigger Platform height 5.16 m | Folding scaffolding SG 0.75 x 1.80 m with outrigger Platform height 6,00 m | Folding scaffolding SG 0.75 x 1.80 m with outrigger Platform height 7.12 m | Folding scaffolding SG 0.75 x 1.80 m with outrigger Platform height 7.96 m | Folding scaffolding SG 0.75 x 1.80 m with outrigger Platform height 9.08 m | Folding scaffolding SG 0.75 x 1.80 m with outrigger Platform height 9.89 m | Folding scaffolding SG 0.75 x 1.80 m with outrigger Platform height 11.04 m |
|---|---|---|---|---|---|---|---|---|
| Working height | 6.04 m | 7.16 m | 8 m | 9.12 m | 9.96 m | 11.08 m | 11.89 m | 13.04 m |
| Scaffolding height | 5.31 m | 6.43 m | 7.27 m | 8.39 m | 9.23 m | 10.35 m | 11.16 m | 12.31 m |
| Platform height | 4.04 m | 5.16 m | 6 m | 7.12 m | 7.96 m | 9.08 m | 9.89 m | 11.04 m |
| Platform width | 750 mm | 750 mm | 750 mm | 750 mm | 750 mm | 750 mm | 750 mm | 750 mm |
| Platform length | 1.8 m | 1.8 m | 1.8 m | 1.8 m | 1.8 m | 1.8 m | 1.8 m | 1.8 m |
| Load capacity | 1.5 kN/m2 | 1.5 kN/m2 | 1.5 kN/m2 | 1.5 kN/m2 | 1.5 kN/m2 | 1.5 kN/m2 | 1.5 kN/m2 | 1.5 kN/m2 |
| Weight | 156 kg | 168 kg | 201 kg | 213 kg | 246 kg | 254 kg | 291 kg | 303 kg |
| Transport dimensions | 3100 x 1100 x 900 mm, 156 kg | 3100 x 1100 x 1000 mm, 168 kg | 3100 x 1100 x 1000 mm, 201 kg | 3100 x 1100 x 1100 mm, 213 kg | 3100 x 1100 x 1200 mm, 247 kg | 3100 x 1100 x 1250 mm, 225 kg | 3100 x 1100 x 1400 mm, 292 kg | 3100 x 1100 x 1500 mm, 304 kg |
| Indoor use, central installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed |
| Indoor use, lateral installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed |
| Outdoor use, central installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | not allowed | not allowed | not allowed |
| Outdoor use, lateral installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | not allowed | not allowed | not allowed |
| Ballasting of scaffolding, indoor, central installation | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg |
| Ballasting of scaffolding, indoor, lateral installation | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg |
| Ballasting of scaffolding, outdoor, central installation | 0 kg | 0 kg | 30 kg | 80 kg | 140 kg | - | - | - |
| Ballasting of scaffolding, outdoor, lateral installation | 0 kg | 0 kg | 30 kg | 80 kg | 140 kg | - | - | - |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 115134 | 115144 | 115154 | 115164 | 115174 | 115184 | 115194 | 115104 |
| Price | € 6,020.00 | € 6,550.00 | € 7,657.00 | € 8,187.00 | € 9,294.00 | € 9,666.00 | € 10,931.00 | € 11,461.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
