Order no.
: 115114

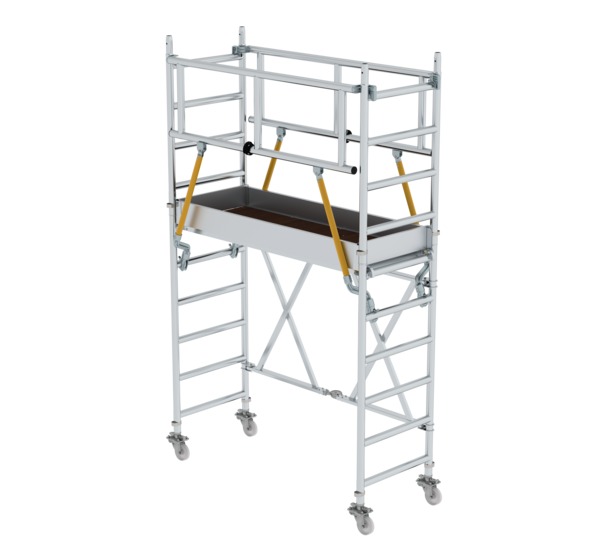

Folding scaffolding SG 0.75 x 1.80 m
€ 3,141.00
RRP without VAT
Specifications
Working height
4.08 m
Scaffolding height
3.35 m
Platform height
2.08 m
Platform width
750 mm
Platform length
1.8 m
Load capacity
1.5 kN/m2
Weight
86 kg
Transport dimensions
1900 x 1100 x 800 mm, 74 kg
Indoor use, central installation
possible & allowed
Indoor use, lateral installation
not possible
Outdoor use, central installation
possible & allowed
Outdoor use, lateral installation
not possible
Ballasting of scaffolding, indoor, central installation
60 kg
Ballasting of scaffolding, outdoor, central installation
270 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
115114
Price
€ 3,141.00
Information
- Mobile scaffolding made of sturdy round aluminium tubing with welded frame parts
- Secured all around thanks to leading railing, can be assembled and dismantled from level to level
- All scaffolding parts are also available individually as spare or extension parts
- Folding frame made of rectangular tube side-rails with self-locking hinges
- Space-saving transport and storage
- Four Ø 125 mm swivel castors with centric load application and spindles
- Slip-resistant platform for secure standing
- Aluminium toe boards and railing frames with integrated knee board as safety railing (from platform height of 2.8 m and higher)
- Simple setup and removal without tools
- Different platform widths available (0.75 / 1.35 m)
- Platform lengths of 2.45 m and 3.0 m upon request
- Working heights up to 13.88 m
- GS-tested as per DIN EN 1004
- Load class/scaffolding group 2: 1.5 kN/m²
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- 027971 - Folding frame unit, 0.75 m: 1 x
- 027992 - Safety railing for mobile scaffolding: 2 x
- 027931 - Platform with trapdoor: 1 x
- 027913 - Toe board front side: 2 x
- 027943 - Toe board long side: 2 x
- 027973 - Swivel castor with spindle: 4 x
- Instructions for assembly and use EN 1004-2 - de: 1 x
- 027905 - Push-fit frame, 0.75 m.: 2 x
Safety. Made in Germany.
Comparison table
| Product name | Folding scaffolding SG 0.75 x 1.80 m Platform height 2.08 m | Folding scaffolding SG 0.75 x 1.80 m Platform height 3.20 m |
|---|---|---|
| Working height | 4.08 m | 5.2 m |
| Scaffolding height | 3.35 m | 4.47 m |
| Platform height | 2.08 m | 3.2 m |
| Platform width | 750 mm | 750 mm |
| Platform length | 1.8 m | 1.8 m |
| Load capacity | 1.5 kN/m2 | 1.5 kN/m2 |
| Weight | 86 kg | 101 kg |
| Transport dimensions | 1900 x 1100 x 800 mm, 74 kg | 2200 x 1100 x 800 mm, 100 kg |
| Indoor use, central installation | possible & allowed | possible & allowed |
| Indoor use, lateral installation | not possible | not possible |
| Outdoor use, central installation | possible & allowed | possible & allowed |
| Outdoor use, lateral installation | not possible | not possible |
| Ballasting of scaffolding, indoor, central installation | 60 kg | 160 kg |
| Ballasting of scaffolding, outdoor, central installation | 270 kg | 480 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 115114 | 115124 |
| Price | € 3,141.00 | € 3,809.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
