Order no.
: 166220

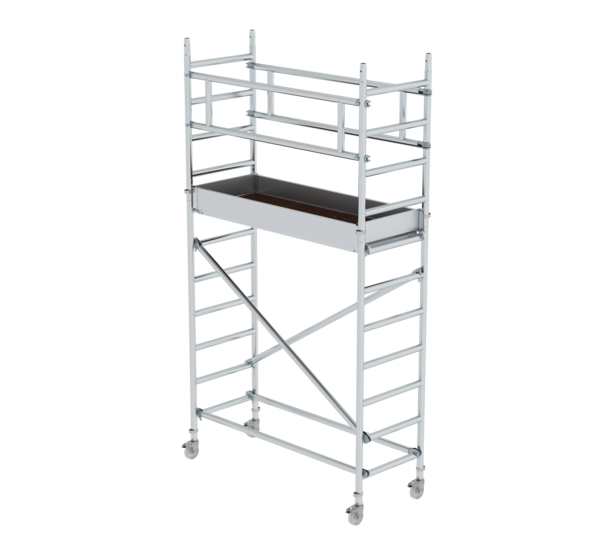

ML Standard mobile scaffolding, 0.75 × 1.80 m.
€ 2,285.00
RRP without VAT
Specifications
Working height
4.1 m
Scaffolding height
3.37 m
Platform height
2.1 m
Platform width
750 mm
Platform length
1.8 m
Weight
67 kg
Indoor use, central installation
possible & allowed
Indoor use, lateral installation
not possible
Outdoor use, central installation
possible & allowed
Outdoor use, lateral installation
not possible
Ballasting of scaffolding, indoor, central installation
100 kg
Ballasting of scaffolding, outdoor, central installation
340 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
166220
Price
€ 2,285.00
Notice
Accessories necessary to fulfil DIN EN 1004-1:2021
Information
- Mobile scaffolding made of sturdy round aluminium tubing with welded frame parts
- All scaffolding parts are also available individually as spare or extension parts
- Four Ø 125 mm swivel castors with locking mechanisms
- Platforms with large trapdoor
- Aluminium toe boards and railing frames with integrated knee board as safety railing
- Installation and removal without tools from platform to platform thanks to push-fit connectors and quick-release fasteners
- Easy to handle thanks to individual lightweight parts
- Working heights up to 7.2 m
- GS-tested as per DIN EN 1004
- Load class/scaffolding group 3: 2.0 kN/m²
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Safety. Made in Germany.
Comparison table
| Product name | ML Standard mobile scaffolding, 0.75 × 1.80 m. Platform height 2.10 m | ML Standard mobile scaffolding, 0.75 × 1.80 m. Platform height 3.30 m | ML Standard mobile scaffolding, 0.75 × 1.80 m. Platform height 4.10 m | ML Standard mobile scaffolding, 0.75 × 1.80 m. Platform height 5.20 m |
|---|---|---|---|---|
| Working height | 4.1 m | 5.3 m | 6.1 m | 7.2 m |
| Scaffolding height | 3.37 m | 4.57 m | 5.37 m | 6.47 m |
| Platform height | 2.1 m | 3.3 m | 4.1 m | 5.2 m |
| Platform width | 750 mm | 750 mm | 750 mm | 750 mm |
| Platform length | 1.8 m | 1.8 m | 1.8 m | 1.8 m |
| Weight | 67 kg | 102 kg | 131 kg | 139 kg |
| Indoor use, central installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed |
| Indoor use, lateral installation | not possible | not possible | not possible | not possible |
| Outdoor use, central installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed |
| Outdoor use, lateral installation | not possible | not possible | not possible | not possible |
| Ballasting of scaffolding, indoor, central installation | 100 kg | 50 kg | 100 kg | 150 kg |
| Ballasting of scaffolding, outdoor, central installation | 340 kg | 280 kg | 390 kg | 520 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 166220 | 166320 | 166420 | 166520 |
| Price | € 2,285.00 | € 3,253.00 | € 4,084.00 | € 4,456.00 |
| Notice | Accessories necessary to fulfil DIN EN 1004-1:2021 | Accessories necessary to fulfil DIN EN 1004-1:2021 | Accessories necessary to fulfil DIN EN 1004-1:2021 | Accessories necessary to fulfil DIN EN 1004-1:2021 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
