Order no.
: 173237

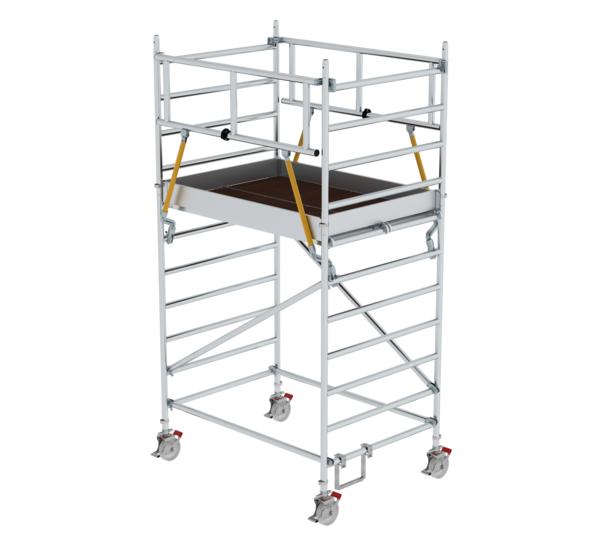

Mobile scaffolding SG 1.35 × 1.8 m with double platform
€ 3,495.00
RRP without VAT
Specifications
Working height
4.51 m
Scaffolding height
3.78 m
Platform height
2.51 m
Platform width
1.35 m
Platform length
1.8 m
Load capacity
2 kN/m2
Weight
122 kg
Transport dimensions
2200 x 1400 x 600 mm, 118 kg
Indoor use, central installation
possible & allowed
Indoor use, lateral installation
not possible
Outdoor use, central installation
possible & allowed
Outdoor use, lateral installation
not possible
Ballasting of scaffolding, indoor, central installation
0 kg
Ballasting of scaffolding, outdoor, central installation
130 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
173237
Price
€ 3,495.00
Information
- Mobile scaffolding made of sturdy round aluminium tubing with welded frame parts
- Secured all around thanks to leading railing, can be assembled and dismantled from level to level
- Large-format work area in width of 1.35 m
- All scaffolding parts are also available individually as spare or extension parts
- Four Ø 200 mm swivel castors with centric load application, locking mechanisms and spindles
- Aluminium toe boards and railing frames with integrated knee board as safety railing
- Can be set up and dismantled without tools thanks to push-fit connections and quick-release fasteners
- Easy to handle thanks to individual lightweight parts
- Different platform lengths available (1.80 / 2.45 / 3.0 m)
- GS-tested as per DIN EN 1004
- Load class/scaffolding group 3: 2.0 kN/m²
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- 027901 - Push-fit frame, 1.35 m.: 2 x
- 027992 - Safety railing for mobile scaffolding: 2 x
- 027931 - Platform with trapdoor: 1 x
- 027932 - Platform without flap: 1 x
- 027911 - Toe board front side: 2 x
- 027943 - Toe board long side: 2 x
- 027937 - Diagonal brace: 2 x
- 027935 - Horizontal strut: 2 x
- 027917 - Swivel castor with spindle: 4 x
- 027940 - Step-on bracket: 1 x
- Instructions for assembly and use EN 1004-2 - de: 1 x
- 027902 - Push-fit frame, 1.35 m.: 2 x
Safety. Made in Germany.
Comparison table
| Product name | Mobile scaffolding SG 1.35 × 1.8 m with double platform platform height 2.51 m | Mobile scaffolding SG 1.35 × 1.8 m with double platform platform height 3.07 m |
|---|---|---|
| Working height | 4.51 m | 5.07 m |
| Scaffolding height | 3.78 m | 4.34 m |
| Platform height | 2.51 m | 3.07 m |
| Platform width | 1.35 m | 1.35 m |
| Platform length | 1.8 m | 1.8 m |
| Load capacity | 2 kN/m2 | 2 kN/m2 |
| Weight | 122 kg | 128 kg |
| Transport dimensions | 2200 x 1400 x 600 mm, 118 kg | 2200 x 1400 x 600 mm, 124 kg |
| Indoor use, central installation | possible & allowed | possible & allowed |
| Indoor use, lateral installation | not possible | not possible |
| Outdoor use, central installation | possible & allowed | possible & allowed |
| Outdoor use, lateral installation | not possible | not possible |
| Ballasting of scaffolding, indoor, central installation | 0 kg | 0 kg |
| Ballasting of scaffolding, outdoor, central installation | 130 kg | 200 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 173237 | 173337 |
| Price | € 3,495.00 | € 3,759.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
