Order no.
: 174437

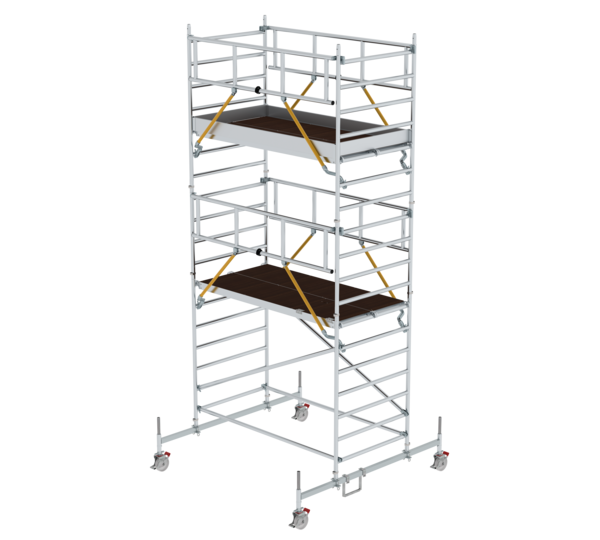

Mobile scaffolding SG 1.35 × 2.45 m with chassis bar & double platform
€ 6,954.00
RRP without VAT
Specifications
Working height
6.66 m
Scaffolding height
5.93 m
Platform height
4.66 m
Platform width
1.35 m
Platform length
2.45 m
Load capacity
2 kN/m2
Weight
273 kg
Transport dimensions
2850 x 1400 x 650 mm, 267 kg
Indoor use, central installation
possible & allowed
Indoor use, lateral installation
possible & allowed
Outdoor use, central installation
possible & allowed
Outdoor use, lateral installation
possible & allowed
Ballasting of scaffolding, indoor, central installation
0 kg
Ballasting of scaffolding, indoor, lateral installation
0 kg
Ballasting of scaffolding, outdoor, central installation
60 kg
Ballasting of scaffolding, outdoor, lateral installation
0 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
174437
Price
€ 6,954.00
Information
- Mobile scaffolding made of sturdy round aluminium tubing with welded frame parts
- Secured all around thanks to leading railing, can be assembled and dismantled from level to level
- Large-format work area in width of 1.35 m
- All scaffolding parts are also available individually as spare or extension parts
- Four Ø 200 mm swivel castors with centric load application, locking mechanisms and spindles
- Aluminium toe boards and railing frames with integrated knee board as safety railing
- Can be set up and dismantled without tools thanks to push-fit connections and quick-release fasteners
- Easy to handle thanks to individual lightweight parts
- Different platform lengths available (1.80 / 2.45 / 3.0 m)
- Working heights up to 13.62 m
- GS-tested as per DIN EN 1004
- Load class/scaffolding group 3: 2.0 kN/m²
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- 027901 - Push-fit frame, 1.35 m.: 4 x
- 027993 - Safety railing for mobile scaffolding: 4 x
- 027910 - Platform with trapdoor: 2 x
- 027930 - Platform without flap: 2 x
- 027911 - Toe board front side: 2 x
- 027914 - Toe board long side: 2 x
- 027908 - Diagonal brace: 2 x
- 027907 - Horizontal strut: 2 x
- 027925 - Chassis bar: 2 x
- 027917 - Swivel castor with spindle: 4 x
- 027940 - Step-on bracket: 1 x
- Instructions for assembly and use EN 1004-2 - de: 1 x
- 027902 - Push-fit frame, 1.35 m.: 2 x
Safety. Made in Germany.
Comparison table
| Product name | Mobile scaffolding SG 1.35 × 2.45 m with chassis bar & double platform platform height 4.66 m | Mobile scaffolding SG 1.35 × 2.45 m with chassis bar & double platform platform height 5.78 m | Mobile scaffolding SG 1.35 × 2.45 m with chassis bar & double platform platform height 6.62 m | Mobile scaffolding SG 1.35 × 2.45 m with chassis bar & double platform platform height 7.74 m | Mobile scaffolding SG 1.35 × 2.45 m with chassis bar & double platform platform height 8.58 m | Mobile scaffolding SG 1.35 × 2.45 m with chassis bar & double platform platform height 9.70 m | Mobile scaffolding SG 1.35 × 2.45 m with chassis bar & double platform platform height 10.54 m | Mobile scaffolding SG 1.35 × 2.45 m with chassis bar & double platform platform height 11.62 m |
|---|---|---|---|---|---|---|---|---|
| Working height | 6.66 m | 7.78 m | 8.62 m | 9.74 m | 10.58 m | 11.7 m | 12.54 m | 13.62 m |
| Scaffolding height | 5.93 m | 7.05 m | 7.89 m | 9.01 m | 9.85 m | 10.97 m | 11.81 m | 12.89 m |
| Platform height | 4.66 m | 5.78 m | 6.62 m | 7.74 m | 8.58 m | 9.7 m | 10.54 m | 11.62 m |
| Platform width | 1.35 m | 1.35 m | 1.35 m | 1.35 m | 1.35 m | 1.35 m | 1.35 m | 1.35 m |
| Platform length | 2.45 m | 2.45 m | 2.45 m | 2.45 m | 2.45 m | 2.45 m | 2.45 m | 2.45 m |
| Load capacity | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 |
| Weight | 273 kg | 290 kg | 356 kg | 368 kg | 439 kg | 451 kg | 521 kg | 533 kg |
| Transport dimensions | 2850 x 1400 x 650 mm, 267 kg | 2850 x 1400 x 700 mm, 284 kg | 2850 x 1400 x 800 mm, 350 kg | 2850 x 1400 x 1000 mm, 362 kg | 2850 x 1400 x 1400 mm, 432 kg | 2850 x 1400 x 1400 mm, 444 kg | 2850 x 1400 x 1500 mm, 514 kg | 2850 x 1400 x 1550 mm, 526 kg |
| Indoor use, central installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed |
| Indoor use, lateral installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed |
| Outdoor use, central installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed | not allowed | not allowed | not allowed | not allowed |
| Outdoor use, lateral installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed | not allowed | not allowed | not allowed | not allowed |
| Ballasting of scaffolding, indoor, central installation | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg |
| Ballasting of scaffolding, indoor, lateral installation | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg |
| Ballasting of scaffolding, outdoor, central installation | 60 kg | 150 kg | 220 kg | 320 kg | - | - | - | - |
| Ballasting of scaffolding, outdoor, lateral installation | 0 kg | 0 kg | 30 kg | 100 kg | - | - | - | - |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 174437 | 174537 | 174637 | 174737 | 174837 | 174937 | 174037 | 174137 |
| Price | € 6,954.00 | € 7,552.00 | € 9,251.00 | € 9,683.00 | € 11,548.00 | € 11,980.00 | € 13,845.00 | € 14,277.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
