Order no.
: 167221

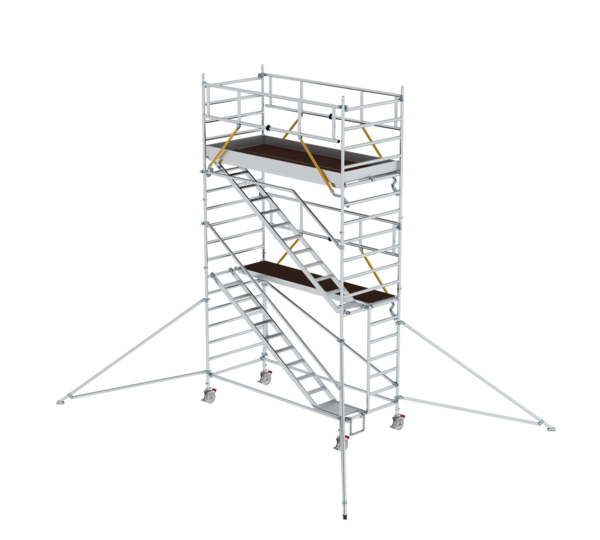

Mobile scaffolding SG 1.35 × 3 m with inclined ascents & outrigger
€ 8,450.00
RRP without VAT
Specifications
Working height
6.47 m
Scaffolding height
5.74 m
Platform height
4.47 m
Platform width
1.35 m
Platform length
3 m
Load capacity
2 kN/m2
Weight
255 kg
Transport dimensions
3700 x 1400 x 800 mm, 251 kg
Indoor use, central installation
possible & allowed
Indoor use, lateral installation
possible & allowed
Outdoor use, central installation
possible & allowed
Outdoor use, lateral installation
possible & allowed
Ballasting of scaffolding, indoor, central installation
0 kg
Ballasting of scaffolding, indoor, lateral installation
0 kg
Ballasting of scaffolding, outdoor, central installation
0 kg
Ballasting of scaffolding, outdoor, lateral installation
0 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
167221
Price
€ 8,450.00
Information
- Mobile scaffolding made of sturdy round aluminium tubing with welded frame parts
- Secured all around thanks to leading railing, can be assembled and dismantled from level to level
- nclined steps from platform to platform with 100 mm deep, ribbed aluminium steps and handrail for safe ascent and descent as if on stairs
- All scaffolding parts are also available individually as spare or extension parts
- Stable and flexible thanks to folding outriggers
- Also ideal for wall mounting or moving in narrow aisles
- Access through opening in the entry frame
- Four Ø 200 mm swivel castors with centric load application, locking mechanisms and spindles
- Large-format work area in width of 1.35 m
- Aluminium toe boards and railing frames with integrated knee board as safety railing
- Installation and removal without tools from platform to platform thanks to push-fit connectors and quick-release fasteners
- Easy to handle thanks to individual lightweight parts
- Different platform lengths available (1.80 / 2.45 / 3.0 m)
- Working heights up to 12.35 m
- GS-tested as per DIN EN 1004
- Load class/scaffolding group 3: 2.0 kN/m²
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- 027928 - Entry frame: 1 x
- 027901 - Push-fit frame, 1.35 m.: 3 x
- 027994 - Safety railing for mobile scaffolding: 3 x
- 027986 - Platform with longitudinal flap: 1 x
- 027934 - Platform without flap: 2 x
- 027911 - Toe board front side: 2 x
- 027944 - Toe board long side: 2 x
- 027938 - Diagonal brace: 1 x
- 027936 - Horizontal strut: 2 x
- 027927 - Triangular outrigger: 4 x
- 027917 - Swivel castor with spindle: 4 x
- 027968 - Top handrail for mobile scaffolding with inclined ascent: 1 x
- 027984 - Handrail for mobile scaffolding with inclined ascent: 1 x
- 027965 - Inclined ascent below: 1 x
- 027966 - Inclined ascent: 1 x
- 027940 - Step-on bracket: 1 x
- Instructions for assembly and use EN 1004-2 - de: 1 x
- 027902 - Push-fit frame, 1.35 m.: 2 x
Safety. Made in Germany.
Comparison table

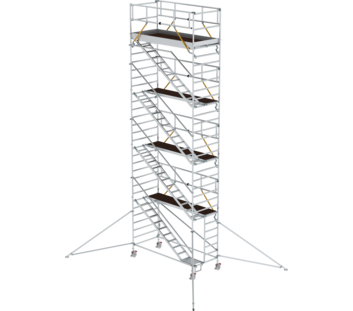

| Product name | Mobile scaffolding SG 1.35 × 3 m with inclined ascents & outrigger platform height 4.47 m | Mobile scaffolding SG 1.35 × 3 m with inclined ascents & outrigger platform height 6.43 m | Mobile scaffolding SG 1.35 × 3 m with inclined ascents & outrigger platform height 8.39 m | Mobile scaffolding SG 1.35 × 3 m with inclined ascents & outrigger platform height 10.35 m |
|---|---|---|---|---|
| Working height | 6.47 m | 8.43 m | 10.39 m | 12.35 m |
| Scaffolding height | 5.74 m | 7.7 m | 9.66 m | 11.62 m |
| Platform height | 4.47 m | 6.43 m | 8.39 m | 10.35 m |
| Platform width | 1.35 m | 1.35 m | 1.35 m | 1.35 m |
| Platform length | 3 m | 3 m | 3 m | 3 m |
| Load capacity | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 |
| Weight | 255 kg | 325 kg | 395 kg | 465 kg |
| Transport dimensions | 3700 x 1400 x 800 mm, 251 kg | 3700 x 1400 x 1000 mm, 323 kg | 3700 x 1400 x 1100 mm, 380 kg | 3700 x 1400 x 1200 mm, 460 kg |
| Indoor use, central installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed |
| Indoor use, lateral installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed |
| Outdoor use, central installation | possible & allowed | possible & allowed | not allowed | not allowed |
| Outdoor use, lateral installation | possible & allowed | possible & allowed | not allowed | not allowed |
| Ballasting of scaffolding, indoor, central installation | 0 kg | 0 kg | 0 kg | 0 kg |
| Ballasting of scaffolding, indoor, lateral installation | 0 kg | 0 kg | 0 kg | 0 kg |
| Ballasting of scaffolding, outdoor, central installation | 0 kg | 0 kg | - | - |
| Ballasting of scaffolding, outdoor, lateral installation | 0 kg | 0 kg | - | - |
| Ballasting per outrigger, outdoor, central installation | - | 40 kg | - | - |
| Ballasting per outrigger, outdoor, lateral installation | - | 40 kg | - | - |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 167221 | 167321 | 167421 | 167521 |
| Price | € 8,450.00 | € 10,780.00 | € 13,110.00 | € 15,440.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
