Order no.
: 167121

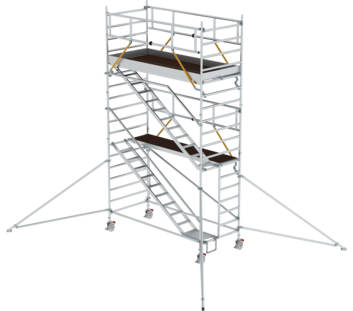

Mobile scaffolding SG 1.35 × 3 m with inclined ascents
€ 4,796.00
RRP without VAT
Specifications
Working height
4.51 m
Scaffolding height
3.78 m
Platform height
2.51 m
Platform width
1.35 m
Platform length
3 m
Load capacity
2 kN/m2
Weight
157 kg
Transport dimensions
3550 x 1400 x 650 mm, 176 kg
Indoor use, central installation
possible & allowed
Indoor use, lateral installation
not possible
Outdoor use, central installation
possible & allowed
Outdoor use, lateral installation
not possible
Ballasting of scaffolding, indoor, central installation
0 kg
Ballasting of scaffolding, outdoor, central installation
150 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
167121
Price
€ 4,796.00
Information
- Mobile scaffolding made of sturdy round aluminium tubing with welded frame parts
- Secured all around thanks to leading railing, can be assembled and dismantled from level to level
- nclined steps from platform to platform with 100 mm deep, ribbed aluminium steps and handrail for safe ascent and descent as if on stairs
- All scaffolding parts are also available individually as spare or extension parts
- Also ideal for wall mounting or moving in narrow aisles
- Access through opening in the entry frame
- Four Ø 200 mm swivel castors with centric load application, locking mechanisms and spindles
- Large-format work area in width of 1.35 m
- Aluminium toe boards and railing frames with integrated knee board as safety railing
- Installation and removal without tools from platform to platform thanks to push-fit connectors and quick-release fasteners
- Easy to handle thanks to individual lightweight parts
- Different platform lengths available (1.80 / 2.45 / 3.0 m)
- GS-tested as per DIN EN 1004
- Load class/scaffolding group 3: 2.0 kN/m²
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- 027928 - Entry frame: 1 x
- 027901 - Push-fit frame, 1.35 m.: 1 x
- 027994 - Safety railing for mobile scaffolding: 1 x
- 027957 - Railing lengthwise: 1 x
- 027986 - Platform with longitudinal flap: 1 x
- 027934 - Platform without flap: 1 x
- 027911 - Toe board front side: 2 x
- 027944 - Toe board long side: 2 x
- 027938 - Diagonal brace: 1 x
- 027936 - Horizontal strut: 2 x
- 027917 - Swivel castor with spindle: 4 x
- 027968 - Top handrail for mobile scaffolding with inclined ascent: 1 x
- 027965 - Inclined ascent below: 1 x
- 027940 - Step-on bracket: 1 x
- Instructions for assembly and use EN 1004-2 - de: 1 x
- 027902 - Push-fit frame, 1.35 m.: 2 x
Safety. Made in Germany.
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
