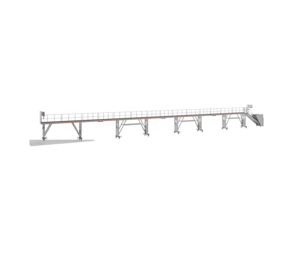

Modular roof working platform
Specifications
Information
- Walkway: Length: max. 40 m (segment platform length variable 5,210 / 6,060 mm)
- Walkway: width: 800 / 1,050 mm (different widths depending on segment) - plus 300 mm fold-down angle
- Walkway: Platform height min.: 3,000 mm
- Walkway: Platform height max.: 3,700 / 4,500 mm
- Chassis: Swivel castors: Ø 200 mm, 4 per segment
- Chassis: Support spindles: 4 per segment
- Chassis: Chassis beam width: 990 / 1,250 mm
- Walkway: Decking: Aluminium ribbed (R9)
- Railing: Height: 1,100 mm
- Railing: Aluminium tube: Ø 40 mm
- Railing: rigid design
- Railing: safety gate: frontal, spring-loaded
- Vario stairs: Vertical height max.: 4,500 mm
- Vario stairs: Vertical height min.: 3,000 mm
- Vario stairs: Total width: 1,300 mm
- Vario stairs: Step width: 800 mm
- Vario stairs: Step depth: 240 mm
- VarioStairs - Chassis: Swivel castors (4 pieces): Ø 125 mm
- VarioStairs - Chassis: Mobile beam width: 1,250 mm
- Vario stairs: Handrail: Rigid on left and right long side
- Vario stairs: Tread: Aluminium ribbed (R9)
- Surface load: 1.5 kN/m²
- Total load: 500 kg
- Step load: 150 kg
Client's Request and Task
The project goal was to develop a modular roof working platform, specifically designed for maintenance work on train roofs. The construction had to ensure flexible adaptability in the length dimension while allowing user-friendly assembly. It was essential to create a working environment that prioritizes ergonomics and safety for the maintenance personnel. Additionally, the working platform had to offer stability and reliability while complying with the relevant standards to meet our client's high requirements.
- Roof working platform for maintenance work on train roofs
- Modular adaptability in length for various train types
- User-friendly construction for easy handling
- Ergonomic working conditions to minimize strains
- Standard-compliant and stable construction for maximum safety and reliability
Our Solution

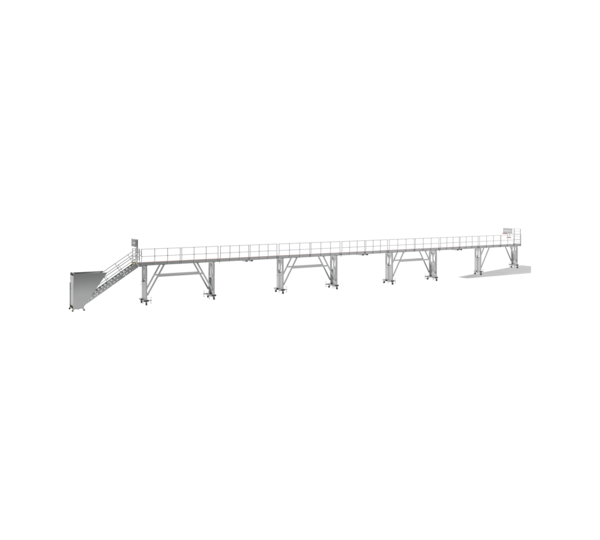

Modular Working Platform System
We developed a system consisting of two roof working platforms, which can be positioned on both the left and right sides of a train. Each side consists of four individual modules and three insert platforms, which can be extended to a total length of up to 40 meters without a staircase.
Flexibility and Adaptability
The platform height can be manually adjusted in 100 mm increments using a hand crank and a toothed rack, which enables customised height adjustment. The individual modules are equipped with a trolley so that they can be easily positioned and adjusted.
Safety Features and Ergonomics
The roof working platform offers optimal safety through fall protections, such as self-closing safety doors and foldable as well as telescopic railings at the front and back. Additionally, the support frames are clad with perforated sheet metal, providing extra protection and simultaneously reinforcing the structure.
Accessibility and Protection
Accessibility is ensured by variostairs, which are protected from unauthorized access by an enclosure with a self-closing door. The foldable angle on the train-facing longitudinal side protects the train from damage and provides a safe and comfortable work area for the personnel.

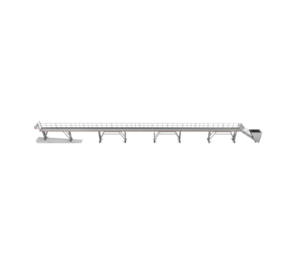

Technical Specifications and Construction
With a variable platform length of up to 40 metres and an adjustable platform height of 3,000 mm to 4,500 mm, our solution meets the technical requirements for a wide range of train types. Stability and load capacity are guaranteed with a surface load of 1.5 kN/m² and a total load of 500 kg.
Conclusion
Our innovative modular roof working platform represents a precise and standard-compliant solution, specifically tailored to the client's needs. It offers a flexible, safe, and ergonomic work environment, enhancing the efficiency of maintenance processes and protecting personnel from hazards. The ability to adapt to various train types and easy handling make the platform an indispensable tool in modern railway maintenance.
