Order no.
: 012040
Pit ladder
€ 709.00
RRP without VAT
Specifications
Depth of excavation min.
800 mm
Depth of excavation max.
1.05 m
Ladder length
2.25 m
Number of steps/rungs
4 steps
Platform included as step
Yes
Lower outer width
490 mm
Depth of side-rails
73 mm
Width of side-rails
25 mm
Step width
440 mm
Step depth
80 mm
Step/Rung distance
263 mm
Platform length
240 mm
Platform width
550 mm
Inclination
70 °
Max. load capacity
150 kg
Type of non-slip protection
clip-step R13
Design type
To lean against
Handrails included
No
Material
Aluminium
Transport dimensions
2226 x 588 x 197 mm, 10 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
012040
Price
€ 709.00
Information
- Aluminium step straight ladder
- 80 mm-deep steps with clip-step R13 slip-resistant step padding
- 4-fold edged step-to-side-rail connection

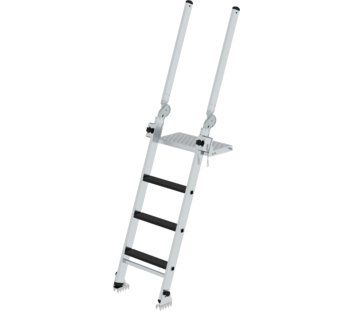

- Reinforced exit side-rails 1.0 m for a safe bridging step
- Extra-wide, height-adjustable platform (550 x 240 mm), consisting of slip-resistant perforated aluminium cover R13 for safe entry/exit, and to lock the ladder at the edge of the pit
- Base plates with claws for secure footing at the correct working angle

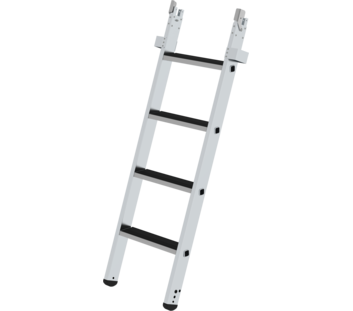

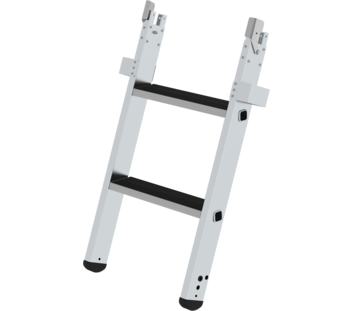

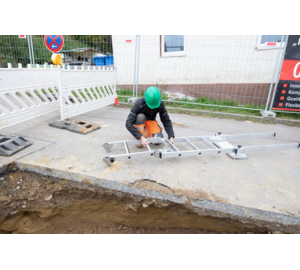

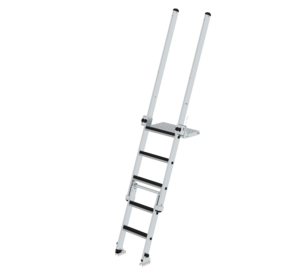

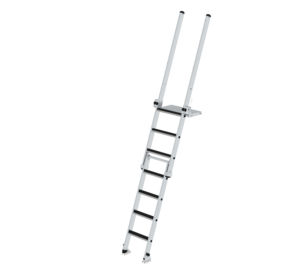

- Flexible means of extension thanks to optional push-fit sections
- Step spacing: 263 mm
- Ladder inclination: 70°
- Maximum load: 150 kg
- Ideal and flexible for use in raised floors
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Base plate: 2 x
- Instructions for use and operation: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Pit ladder 3 steps | Pit ladder 3 steps incl. handrails |
|---|---|---|
| Depth of excavation min. | 800 mm | 800 mm |
| Depth of excavation max. | 1.05 m | 1.05 m |
| Ladder length | 2.25 m | 2.25 m |
| Number of steps/rungs | 4 steps | 4 steps |
| Platform included as step | Yes | Yes |
| Lower outer width | 490 mm | 490 mm |
| Depth of side-rails | 73 mm | 73 mm |
| Width of side-rails | 25 mm | 25 mm |
| Step width | 440 mm | 440 mm |
| Step depth | 80 mm | 80 mm |
| Step/Rung distance | 263 mm | 263 mm |
| Platform length | 240 mm | 240 mm |
| Platform width | 550 mm | 550 mm |
| Inclination | 70 ° | 70 ° |
| Max. load capacity | 150 kg | 150 kg |
| Type of non-slip protection | clip-step R13 | clip-step R13 |
| Design type | To lean against | To lean against |
| Handrails included | No | Yes |
| Material | Aluminium | Aluminium |
| Transport dimensions | 2226 x 588 x 197 mm, 10 kg | 2226 x 588 x 350 mm, 11.5 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 012040 | 012041 |
| Price | € 709.00 | € 839.00 |
| Buy online |
Product video
Sponsored by BG BAU
Specification subject to conditions; for the latest information please visit the BG BAU website (statutory accident insurance company for the construction and construction related services in Germany). Since 2014, the BG BAU has been promoting the purchase of platform ladders, step stools and ladder accessories with single-sided and double-sided access. All members of the BG BAU profit from this. This aims to prevent work accidents on building sites and improve ergonomic working practices. For more information by BG BAU, please visit: www.bgbau.de/service/angebote/arbeitsschutzpraemien
A brief overview of the subsidy and an overview of our eligible products can be found on our website under know-how.
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
