Platform stairs, mobile and linkable, with end railing
Specifications
Information
- Platform stairs: Platform length (PFL): 1,230 mm
- Platform stairs: Platform width (PFB): 1,050 mm / 850 mm
- Platform stairs: Platform height top edge (PFH): 2,800 mm
- Platform stairs: Total width (B): approx. 1200 / 1050 mm
- Platform stairs: Step width (SB): 1,000 mm / 800 mm
- Platform stairs: Step depth (ST): 300 mm
- Platform stairs: Inclination (W): 38°
- Platform stairs: Projection (A): approx. 4,200 mm
- Platform stairs: With safety gates
- Platform steps - Chassis: Fixed castor on support section Ø 160 mm with Ideal Stop
- Platform steps - Chassis: Swivel castor on the steps (1) Ø 160 mm
- Platform steps - Chassis: Flush beam width (FB)
- Platform stairs - Chassis: Castors for concrete floor
- Platform stairs: Decking: Aluminium grooved
- Platform stairs: Handrail and balustrade: rigid, only balustrade front side pluggable
- Platform stairs: Rubber protection tube on the long side rails and the long sides of the platform (on both sides)
- Surface load: 1.5 kN/m²
- Step load: 150 kg
- Platforms: Platform length (PFL): 3,060 mm
- Platforms: Platform width (PFB): 1,050 mm / 850 mm
- Platforms: Platform height top edge (PFH): 2,800 mm
- Platforms: Overall width (B): 1,150 mm / 1,050 mm
- Platforms - Chassis: 4 swivel castors Ø 160 mm with Ideal Stop
- Platforms - Chassis: Flush chassis beam width (FB)
- Platforms: Railing: side facing away from bus rigid, from height 550 mm knee rail can be folded inwards, front side with holder for plug-in railing; side facing the bus with rubber protection strip
- Total load: 300 kg
Client's Request and Task
A manufacturer of fully electric city buses required a specialized work platform for battery replacement. The requirements included a platform ladder with a special inclination for comfortable ascending and descending, a modular structure for different vehicle sizes, foldable railings for crane transport of the batteries, as well as an ergonomic and safe working environment for the employees. Additionally, a stable, reliable, and standard-compliant execution was essential.
- Work platform for battery replacement in electric city buses
- Modular and ergonomic platform ladder
- Foldable railings for crane operations
- Stable and standard-compliant construction
Our Solution
Modular Platform Ladder

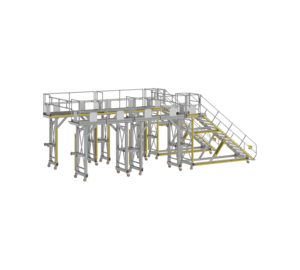

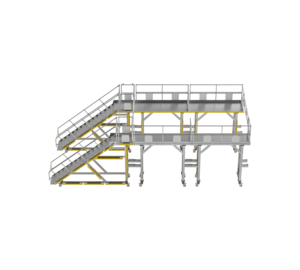

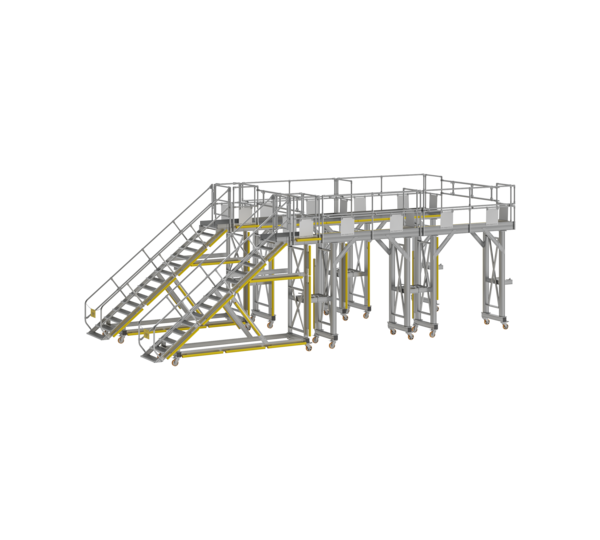

We developed two platform ladders and four mobile platforms that can be coupled using hook tensioners. Each platform features a gap plate for transition and additionally includes two attachable, telescopic railings, as well as four plug-in railings at the front of each platform. The stairs and platforms offer a comfortable inclination of 38° and are equipped with safety doors.
Technical Details
The platforms of the platform ladders have a length of approximately 1200 mm and widths of approximately 1000 mm and 850 mm, with a platform height of 2800 mm. The platforms are 3060 mm long and available in widths of 1050 mm and 850 mm, with a total width of 1150 mm and 1050 mm. Both constructions are designed for a surface load of 1.5 kN/m² and can bear up to 150 kg per step.
Safety and Comfort Features
All platforms and stairs are equipped with a chassis with wheels suitable for concrete floors. The railings are partially foldable and equipped with rubber protection tubes to prevent damage to the vehicle. The decking is made of ribbed aluminum.
Conclusion
The mobile and connectable platform ladder offers a flexible, safe, and ergonomic solution for battery replacement in electric city buses. With its modular design, adaptable railings, and stable construction, it effectively supports maintenance work and contributes to the enhancement of occupational safety.
