Order no.
: 011223

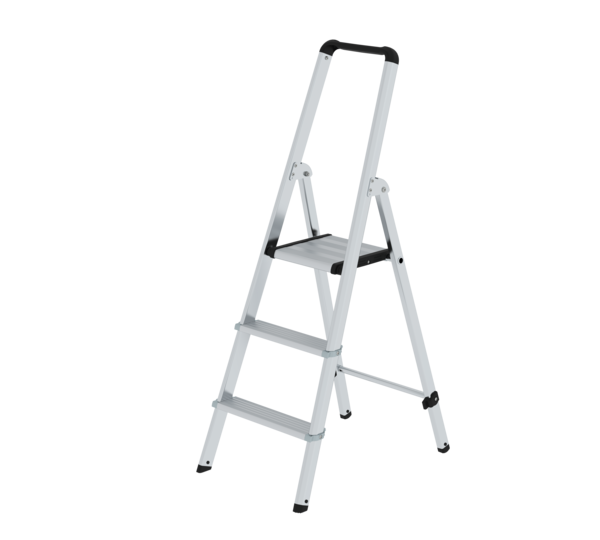

Single-sided ML stepladder
€ 174.00
RRP without VAT
Specifications
Working height
2.7 m
Step design
Steps
Number of steps/rungs
3 steps
Platform included as step
Yes
Step depth
80 mm
Step/Rung distance
235 mm
Type of non-slip protection
Aluminium corrugated
Height
1.31 m
Platform height
690 mm
Base spread
680 mm
Inclination
70 °
Lower outer width
460 mm
Depth of side-rails
50 mm
Depth of side-rails, support
35 mm
Max. load capacity
150 kg
Design type
Freestanding | Single-sided access
Weight
4.9 kg
Transport dimensions
1395 x 455 x 127 mm, 4.9 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
011223
Price
€ 174.00
Information
- Step ladder made of aluminium
- Ergonomically shaped ladder side-rails for easy handling
- 80 mm deep grooved steps and large platform

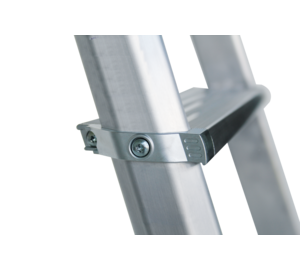

- High-strength bolted step-to-side-rail connection
- Conical side-rail guide for safe stance
- 4-fold riveted ladder joint made of aluminium

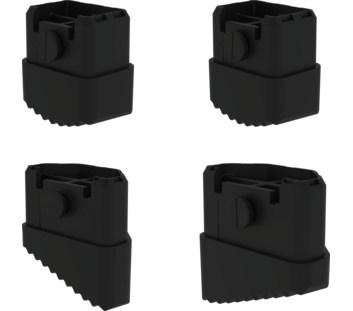

- Non-slip ladder shoes

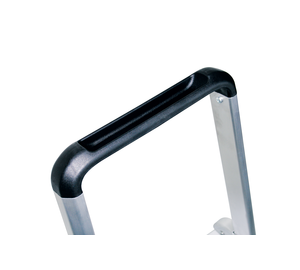

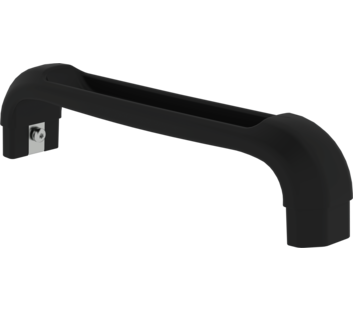

- Practical storage tray
- From six steps or more: Spreader lock with two high-strength polyester straps
- Step spacing: 235 mm
- Ladder inclination: 70°
- Maximum load: 150 kg
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
Selbst ist der Mann (DIY magazine)
- The do-it-yourself magazine "Selbst ist der Mann" tested our ML stepladder with single-sided access
- Verdict: "Very good" - "Very robustly constructed stepladder in industrial quality."
Safety. Made in Germany.
Comparison table
| Product name | Single-sided ML stepladder 3 steps | Single-sided ML stepladder 4 steps | Single-sided ML stepladder 5 steps | Single-sided ML stepladder 6 steps | Single-sided ML stepladder 7 steps |
|---|---|---|---|---|---|
| Working height | 2.7 m | 2.95 m | 3.15 m | 3.4 m | 3.65 m |
| Step design | Steps | Steps | Steps | Steps | Steps |
| Number of steps/rungs | 3 steps | 4 steps | 5 steps | 6 steps | 7 steps |
| Platform included as step | Yes | Yes | Yes | Yes | Yes |
| Step depth | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Step/Rung distance | 235 mm | 235 mm | 235 mm | 235 mm | 235 mm |
| Type of non-slip protection | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated |
| Height | 1.31 m | 1.54 m | 1.78 m | 2.01 m | 2.25 m |
| Platform height | 690 mm | 930 mm | 1.16 m | 1.4 m | 1.63 m |
| Base spread | 680 mm | 840 mm | 1 m | 1.15 m | 1.31 m |
| Inclination | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Lower outer width | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Depth of side-rails | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Depth of side-rails, support | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| Design type | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access |
| Weight | 4.9 kg | 5.8 kg | 6.8 kg | 8.1 kg | 9.1 kg |
| Transport dimensions | 1395 x 455 x 127 mm, 4.9 kg | 1645 x 485 x 127 mm, 5.8 kg | 1890 x 515 x 127 mm, 6.8 kg | 2140 x 545 x 127 mm, 8.1 kg | 2405 x 575 x 127 mm, 9.1 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 011223 | 011224 | 011225 | 011226 | 011227 |
| Price | € 174.00 | € 196.00 | € 223.00 | € 259.00 | € 305.00 |
| Buy online |
Product video
Note: Working heights
- National regulations (e.g. TRBS 2121 Part 2 in Germany) must be complied with with regard to the maximum working height when using the ladder as a workstation.
- Information on TRBS 2121 Part 2 has been summarised on our Service page
- Read our tips and tricks on how to calculate working height
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
