Show all photos
Order no.
: 042703

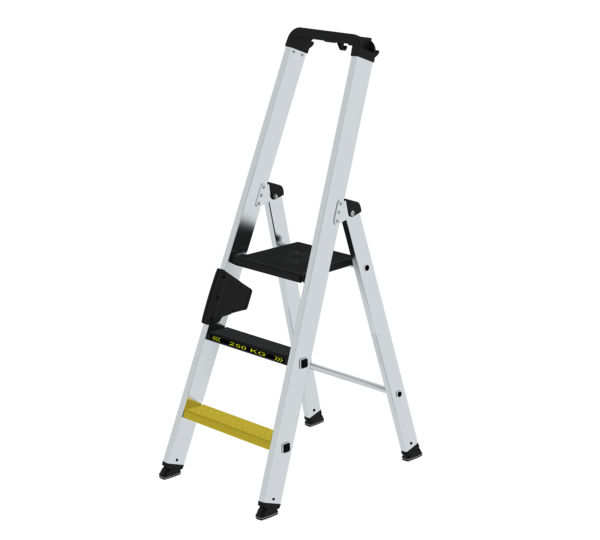

Single-sided stepladder 250 kg with clip-step R13
€ 245.00
RRP without VAT
Specifications
Working height
2.7 m
Step design
Steps
Number of steps/rungs
3 steps
Platform included as step
Yes
Step depth
80 mm
Step/Rung distance
235 mm
Type of non-slip protection
clip-step R13
Height
1.34 m
Platform height
670 mm
Base spread
700 mm
Inclination
70 °
Lower outer width
470 mm
Depth of side-rails
73 mm
Depth of side-rails, support
58 mm
Width of side-rails
25 mm
Max. load capacity
250 kg
Design type
Freestanding | Single-sided access
Weight
6 kg
Transport dimensions
1430 x 463 x 165 mm, 6 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
042703
Price
€ 245.00
Information
- Step ladder made of aluminium
- Stable rectangular tube side-rails
- 80 mm deep grooved steps and large platform

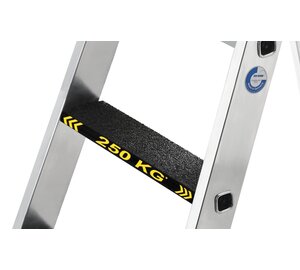

- clip-step R13 step padding for certified non-slip protection
- 4-fold edged step-to-side-rail connection
- Conical side-rail guide for safe stance
- nivello® ladder shoes with patented 2-axis inclination technology

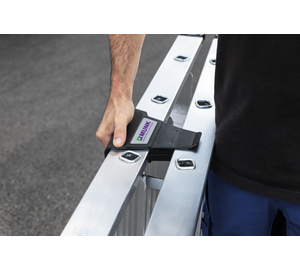

- ergo-pad® grip area with clamping mechanism
- 'safe-cap' ladder joint
- Practical storage tray with integrated hooks and tool holders
- From five steps or more: Spreader lock with two high-strength polyester straps
- Step spacing: 235 mm
- Ladder inclination: 70°
- Maximum load: 250 kg
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
Certificates
Safety. Made in Germany.
Comparison table
| Product name | Single-sided stepladder 250 kg with clip-step R13 3 steps | Single-sided stepladder 250 kg with clip-step R13 4 steps | Single-sided stepladder 250 kg with clip-step R13 5 steps | Single-sided stepladder 250 kg with clip-step R13 6 steps | Single-sided stepladder 250 kg with clip-step R13 7 steps | Single-sided stepladder 250 kg with clip-step R13 8 steps |
|---|---|---|---|---|---|---|
| Working height | 2.7 m | 2.9 m | 3.15 m | 3.4 m | 3.6 m | 3.85 m |
| Step design | Steps | Steps | Steps | Steps | Steps | Steps |
| Number of steps/rungs | 3 steps | 4 steps | 5 steps | 6 steps | 7 steps | 8 steps |
| Platform included as step | Yes | Yes | Yes | Yes | Yes | Yes |
| Step depth | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Step/Rung distance | 235 mm | 235 mm | 235 mm | 235 mm | 235 mm | 235 mm |
| Type of non-slip protection | clip-step R13 | clip-step R13 | clip-step R13 | clip-step R13 | clip-step R13 | clip-step R13 |
| Height | 1.34 m | 1.58 m | 1.81 m | 2.05 m | 2.28 m | 2.51 m |
| Platform height | 670 mm | 910 mm | 1.14 m | 1.38 m | 1.61 m | 1.84 m |
| Base spread | 700 mm | 860 mm | 1.01 m | 1.17 m | 1.32 m | 1.48 m |
| Inclination | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Lower outer width | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm | 610 mm |
| Depth of side-rails | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Depth of side-rails, support | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Max. load capacity | 250 kg | 250 kg | 250 kg | 250 kg | 250 kg | 250 kg |
| Design type | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access |
| Weight | 6 kg | 7 kg | 8 kg | 9.5 kg | 10.5 kg | 13 kg |
| Transport dimensions | 1430 x 463 x 165 mm, 6 kg | 1680 x 490 x 165 mm, 7 kg | 1935 x 520 x 165 mm, 8 kg | 2190 x 548 x 165 mm, 9.5 kg | 2435 x 575 x 165 mm, 10.5 kg | 2685 x 605 x 165 mm, 13 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 042703 | 042704 | 042705 | 042706 | 042707 | 042708 |
| Price | € 245.00 | € 304.00 | € 348.00 | € 414.00 | € 517.00 | € 572.00 |
| Buy online |
Note: Working heights
- National regulations (e.g. TRBS 2121 Part 2 in Germany) must be complied with with regard to the maximum working height when using the ladder as a workstation.
- Information on TRBS 2121 Part 2 has been summarised on our Service page
- Read our tips and tricks on how to calculate working height
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
