Specifications
Working height
2.7 m
Step design
Steps
Number of steps/rungs
3 steps
Platform included as step
Yes
Step depth
80 mm
Step/Rung distance
235 mm
Type of non-slip protection
clip-step R13
Height
1.34 m
Platform height
670 mm
Base spread
700 mm
Inclination
70 °
Lower outer width
470 mm
Depth of side-rails
73 mm
Depth of side-rails, support
58 mm
Width of side-rails
25 mm
Max. load capacity
150 kg
Design type
Freestanding | Single-sided access
Weight
5.75 kg
Transport dimensions
1434 x 461 x 164 mm, 5.751 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
041623
Price
€ 234.00
Information

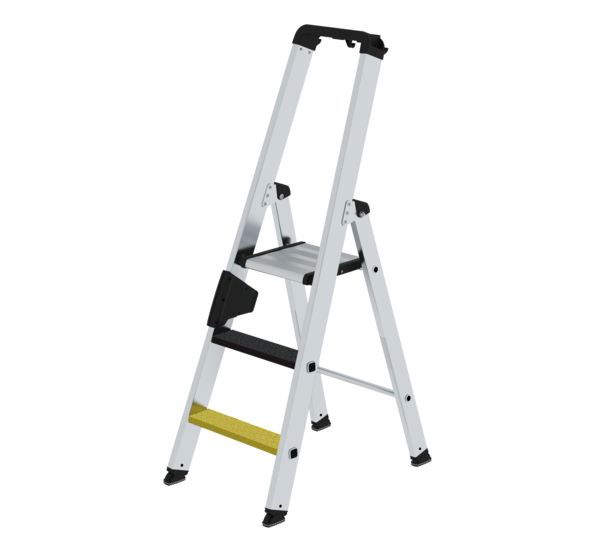

- Step ladder made of aluminium
- Stable rectangular tube side-rails
- 80 mm deep grooved steps and large platform
- 4-fold edged step-to-side-rail connection
- 'safe-cap' ladder joint
- Conical side-rail guide for safe stance
- ergo-pad® grip area with clamping mechanism
- nivello® ladder shoes with patented 2-axis inclination technology
- Practical storage tray with integrated hooks and tool holders
- Spreader lock with two high-strength polyester straps
- Step spacing: 235 mm
- Ladder inclination: 70°
- Maximum load: 150 kg
- clip-step R13 step padding for certified non-slip protection
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
Certificates
Safety. Made in Germany.
Comparison table
| Product name | Single-sided stepladder with clip-step R13 3 steps | Single-sided stepladder with clip-step R13 4 steps | Single-sided stepladder with clip-step R13 5 steps | Single-sided stepladder with clip-step R13 6 steps | Single-sided stepladder with clip-step R13 7 steps | Single-sided stepladder with clip-step R13 8 steps | Single-sided stepladder with clip-step R13 9 steps | Single-sided stepladder with clip-step R13 10 steps | Single-sided stepladder with clip-step R13 12 steps | Single-sided stepladder with clip-step R13 14 steps |
|---|---|---|---|---|---|---|---|---|---|---|
| Working height | 2.7 m | 2.9 m | 3.15 m | 3.4 m | 3.6 m | 3.85 m | 4.1 m | 4.3 m | 5 m | 5.25 m |
| Step design | Steps | Steps | Steps | Steps | Steps | Steps | Steps | Steps | Steps | Steps |
| Number of steps/rungs | 3 steps | 4 steps | 5 steps | 6 steps | 7 steps | 8 steps | 9 steps | 10 steps | 12 steps | 14 steps |
| Platform included as step | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Step depth | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Step/Rung distance | 235 mm | 235 mm | 235 mm | 235 mm | 235 mm | 235 mm | 235 mm | 235 mm | 235 mm | 235 mm |
| Type of non-slip protection | clip-step R13 | clip-step R13 | clip-step R13 | clip-step R13 | clip-step R13 | clip-step R13 | clip-step R13 | clip-step R13 | clip-step R13 | clip-step R13 |
| Height | 1.34 m | 1.58 m | 1.81 m | 2.05 m | 2.28 m | 2.51 m | 2.75 m | 2.98 m | 3.45 m | 3.92 m |
| Platform height | 670 mm | 910 mm | 1.14 m | 1.38 m | 1.61 m | 1.84 m | 2.08 m | 2.31 m | 2.78 m | 3.25 m |
| Base spread | 700 mm | 850 mm | 1.01 m | 1.16 m | 1.32 m | 1.48 m | 1.63 m | 1.79 m | 2.1 m | 2.4 m |
| Inclination | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Lower outer width | 470 mm | 500 mm | 530 mm | 550 mm | 590 mm | 620 mm | 650 mm | 680 mm | 740 mm | 800 mm |
| Depth of side-rails | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Depth of side-rails, support | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| Design type | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access |
| Weight | 5.75 kg | 6.89 kg | 8.04 kg | 9.2 kg | 10.38 kg | 12.06 kg | 13.75 kg | 14.95 kg | 17.4 kg | 20.38 kg |
| Transport dimensions | 1434 x 461 x 164 mm, 5.751 kg | 1683 x 491 x 164 mm, 6.892 kg | 1935 x 520 x 164 mm, 8.042 kg | 2183 x 548 x 164 mm, 9.204 kg | 2430 x 575 x 164 mm, 10.379 kg | 2683 x 606 x 164 mm, 12.061 kg | 2928 x 635 x 164 mm, 13.753 kg | 3183 x 661 x 164 mm, 14.953 kg | 3675 x 720 x 164 mm, 17.395 kg | 4185 x 777 x 164 mm, 20.375 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 041623 | 041624 | 041625 | 041626 | 041627 | 041628 | 041629 | 041630 | 041632 | 041634 |
| Price | € 234.00 | € 284.00 | € 325.00 | € 390.00 | € 492.00 | € 548.00 | € 602.00 | € 668.00 | € 788.00 | € 950.00 |
| Buy online |
Product video
Note: Working heights
- National regulations (e.g. TRBS 2121 Part 2 in Germany) must be complied with with regard to the maximum working height when using the ladder as a workstation.
- Information on TRBS 2121 Part 2 has been summarised on our Service page
- Read our tips and tricks on how to calculate working height
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
