Specifications
Working height
2.7 m
Number of steps/rungs
3 steps
Platform included as step
Yes
Height
1.34 m
Platform height
670 mm
Base spread
700 mm
Lower outer width
470 mm
Depth of side-rails
73 mm
Weight
5.79 kg
Transport dimensions
1434 x 461 x 164 mm, 5.79 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
041503
Price
€ 226.00
Information

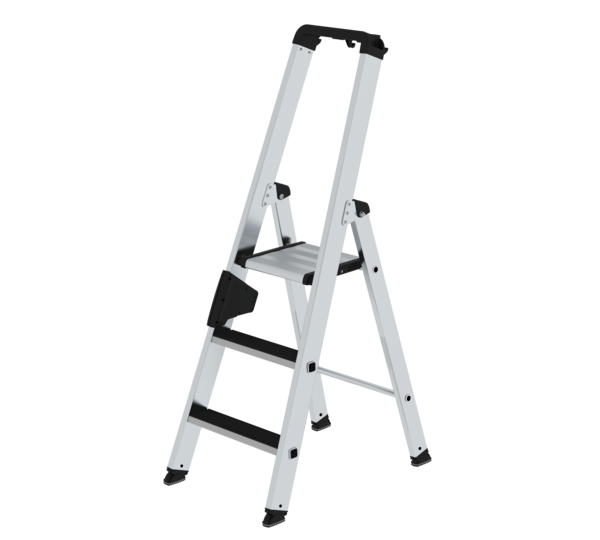

- Step ladder made of aluminium
- Stable rectangular tube side-rails
- 80 mm deep grooved steps and large platform
- 4-fold edged step-to-side-rail connection
- clip-step step padding for optimised non-slip protection
- Conical side-rail guide for safe stance
- nivello® ladder shoes with patented 2-axis inclination technology
- ergo-pad® grip area with clamping mechanism
- 'safe-cap' ladder joint
- Practical storage tray with integrated hooks and tool holders
- From seven steps or more: Spreader lock with two high-strength polyester straps
- Step spacing: 235 mm
- Ladder inclination: 70°
- Available with and without step padding
- Maximum load: 150 kg
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
Certificates
Safety. Made in Germany.
Comparison table
| Product name | Single-sided stepladder with clip-step 3 steps | Single-sided stepladder with clip-step 4 steps | Single-sided stepladder with clip-step 5 steps | Single-sided stepladder with clip-step 6 steps | Single-sided stepladder with clip-step 7 steps | Single-sided stepladder with clip-step 8 steps | Single-sided stepladder with clip-step 9 steps | Single-sided stepladder with clip-step 10 steps | Single-sided stepladder with clip-step 12 steps | Single-sided stepladder with clip-step 14 steps |
|---|---|---|---|---|---|---|---|---|---|---|
| Working height | 2.7 m | 2.9 m | 3.15 m | 3.4 m | 3.6 m | 3.85 m | 4.1 m | 4.3 m | 4.8 m | 5.25 m |
| Number of steps/rungs | 3 steps | 4 steps | 5 steps | 6 steps | 7 steps | 8 steps | 9 steps | 10 steps | 12 steps | 14 steps |
| Platform included as step | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Height | 1.34 m | 1.58 m | 1.81 m | 2.05 m | 2.28 m | 2.51 m | 2.75 m | 2.98 m | 3.45 m | 3.92 m |
| Platform height | 670 mm | 910 mm | 1.14 m | 1.38 m | 1.61 m | 1.84 m | 2.08 m | 2.31 m | 2.78 m | 3.25 m |
| Base spread | 700 mm | 850 mm | 1.01 m | 1.16 m | 1.32 m | 1.48 m | 1.63 m | 1.79 m | 2.1 m | 2.4 m |
| Lower outer width | 470 mm | 500 mm | 530 mm | 550 mm | 590 mm | 620 mm | 650 mm | 680 mm | 740 mm | 800 mm |
| Depth of side-rails | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Weight | 5.79 kg | 6.94 kg | 8.11 kg | 9.28 kg | 10.47 kg | 12.16 kg | 13.86 kg | 15.06 kg | 17.53 kg | 20.47 kg |
| Transport dimensions | 1434 x 461 x 164 mm, 5.79 kg | 1683 x 491 x 164 mm, 6.944 kg | 1935 x 520 x 164 mm, 8.107 kg | 2183 x 548 x 164 mm, 9.282 kg | 2430 x 575 x 164 mm, 10.466 kg | 2683 x 606 x 164 mm, 12.16 kg | 2928 x 635 x 164 mm, 13.86 kg | 3183 x 661 x 164 mm, 15.064 kg | 3675 x 720 x 164 mm, 17.533 kg | 4185 x 777 x 164 mm, 20.474 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 041503 | 041504 | 041505 | 041506 | 041507 | 041508 | 041509 | 041510 | 041512 | 041514 |
| Price | € 226.00 | € 272.00 | € 309.00 | € 370.00 | € 468.00 | € 520.00 | € 570.00 | € 632.00 | € 744.00 | € 898.00 |
| Buy online |
Product video
Note: Working heights
- National regulations (e.g. TRBS 2121 Part 2 in Germany) must be complied with with regard to the maximum working height when using the ladder as a workstation.
- Information on TRBS 2121 Part 2 has been summarised on our Service page
- Read our tips and tricks on how to calculate working height
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
