Order no.
: 155348

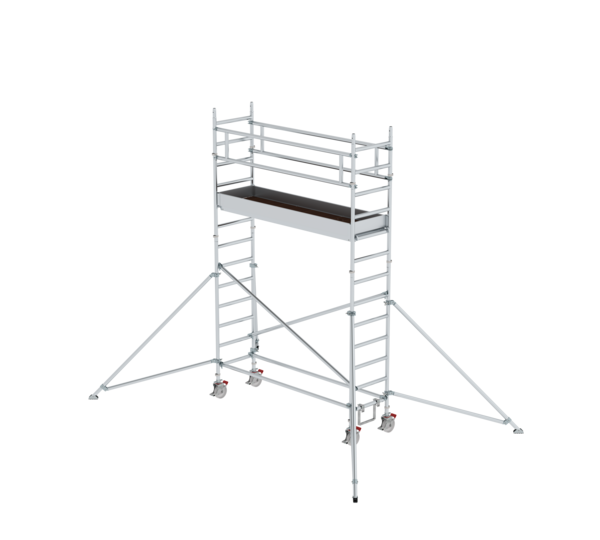

Mobile scaffolding, 0.75 × 2.45 m, with outrigger.
€ 3,815.00
RRP without VAT
Specifications
Working height
5.07 m
Scaffolding height
5.74 m
Platform height
3.07 m
Platform width
750 mm
Platform length
2.45 m
Load capacity
2 kN/m2
Weight
122 kg
Indoor use, central installation
possible & allowed
Indoor use, lateral installation
possible & allowed
Outdoor use, central installation
possible & allowed
Outdoor use, lateral installation
possible & allowed
Ballasting of scaffolding, indoor, central installation
0 kg
Ballasting of scaffolding, indoor, lateral installation
0 kg
Ballasting of scaffolding, outdoor, central installation
0 kg
Ballasting of scaffolding, outdoor, lateral installation
170 kg
Predecessor product
155346, 178335
Business division
MUNK Günzburger Steigtechnik
Article no.
155348
Price
€ 3,815.00
Notice
Accessories necessary to fulfil DIN EN 1004-1:2021
Information
- Mobile scaffolding made of sturdy round aluminium tubing with welded frame parts
- Modular kit principle for flexible use: All scaffolding parts can also be ordered individually as spare or extension parts
- Four Ø 200 mm swivel castors with centric load application, locking mechanisms and spindles
- Aluminium toe boards and railing frames with integrated knee board as safety railing
- Can be set up and dismantled without tools thanks to push-fit connections and quick-release fasteners
- Easy to handle thanks to individual lightweight parts
- Different platform lengths available (1.80 / 2.45 / 3.0 m)
- Working heights up to 12.4 m
- GS tested in accordance with DIN EN 1004
- Load class/scaffolding group 3: 2.0 kN/m²
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- 027904 - Push-fit frame, 0.75 m.: 2 x
- 027918 - Push-fit frame, 0.75 m.: 2 x
- 027956 - Railing lengthwise: 2 x
- 027910 - Platform with trapdoor: 1 x
- 027913 - Toe board front side: 2 x
- 027914 - Toe board long side: 2 x
- 027908 - Diagonal brace: 2 x
- 027907 - Horizontal strut: 2 x
- 027926 - Triangular outrigger: 4 x
- 027917 - Swivel castor with spindle: 4 x
- 027940 - Step-on bracket: 1 x
- 027905 - Push-fit frame, 0.75 m.: 2 x
Safety. Made in Germany.
Comparison table
| Product name | Mobile scaffolding, 0.75 × 2.45 m, with outrigger. Platform height 3,07 m | Mobile scaffolding, 0.75 × 2.45 m, with outrigger. Platform height 4.47 m | Mobile scaffolding, 0.75 × 2.45 m, with outrigger. Platform height 5.59 m | Mobile scaffolding, 0.75 × 2.45 m, with outrigger. Platform height 6.43 m | Mobile scaffolding, 0.75 × 2.45 m, with outrigger. Platform height 7.55 m | Mobile scaffolding, 0.75 × 2.45 m, with outrigger. Platform height 8.39 m | Mobile scaffolding, 0.75 × 2.45 m, with outrigger. Platform height 9.51 m | Mobile scaffolding, 0.75 × 2.45 m, with outrigger. Platform height 10.35 m |
|---|---|---|---|---|---|---|---|---|
| Working height | 5.07 m | 6.47 m | 7.59 m | 8.43 m | 9.55 m | 10.39 m | 11.51 m | 12.35 m |
| Scaffolding height | 5.74 m | 5.74 m | 7.96 m | 7.7 m | 8.82 m | 9.66 m | 10.78 m | 11.62 m |
| Platform height | 3.07 m | 4.47 m | 5.59 m | 6.43 m | 7.55 m | 8.39 m | 9.51 m | 10.35 m |
| Platform width | 750 mm | 750 mm | 750 mm | 750 mm | 750 mm | 750 mm | 750 mm | 750 mm |
| Platform length | 2.45 m | 2.45 m | 2.45 m | 2.45 m | 2.45 m | 2.45 m | 2.45 m | 2.45 m |
| Load capacity | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 |
| Weight | 122 kg | 165 kg | 178 kg | 213 kg | 221 kg | 260 kg | 268 kg | 308 kg |
| Indoor use, central installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed |
| Indoor use, lateral installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed |
| Outdoor use, central installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | not allowed | not allowed | not allowed |
| Outdoor use, lateral installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | not allowed | not allowed | not allowed |
| Ballasting of scaffolding, indoor, central installation | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg |
| Ballasting of scaffolding, indoor, lateral installation | 0 kg | 0 kg | 90 kg | 110 kg | 140 kg | 170 kg | 190 kg | 210 kg |
| Ballasting of scaffolding, outdoor, central installation | 0 kg | 0 kg | 100 kg | 160 kg | 240 kg | - | - | - |
| Ballasting of scaffolding, outdoor, lateral installation | 170 kg | 300 kg | 280 kg | 360 kg | 450 kg | - | - | - |
| Ballasting per outrigger, indoor, central installation | - | - | - | - | - | 10 kg | 30 kg | 50 kg |
| Ballasting per outrigger, indoor, lateral installation | - | - | - | - | - | 10 kg | 30 kg | 50 kg |
| Ballasting per outrigger, outdoor, central installation | - | - | - | 30 kg | - | - | - | - |
| Ballasting per outrigger, outdoor, lateral installation | - | - | - | 30 kg | - | - | - | - |
| Predecessor product | 155346, 178335 | 178435 | 178535 | 178635 | 178735 | 178835 | 178935 | 178035 |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 155348 | 155446 | 155546 | 155646 | 155746 | 155846 | 155946 | 155046 |
| Price | € 3,815.00 | € 5,086.00 | € 5,624.00 | € 6,595.00 | € 6,967.00 | € 8,104.00 | € 8,476.00 | € 9,613.00 |
| Notice | Accessories necessary to fulfil DIN EN 1004-1:2021 | Accessories necessary to fulfil DIN EN 1004-1:2021 | Accessories necessary to fulfil DIN EN 1004-1:2021 | Accessories necessary to fulfil DIN EN 1004-1:2021 | Accessories necessary to fulfil DIN EN 1004-1:2021 | Accessories necessary to fulfil DIN EN 1004-1:2021 | Accessories necessary to fulfil DIN EN 1004-1:2021 | Accessories necessary to fulfil DIN EN 1004-1:2021 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
