Order no.
: 530130

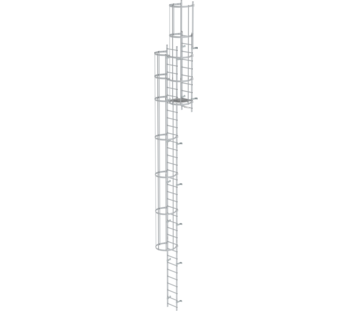

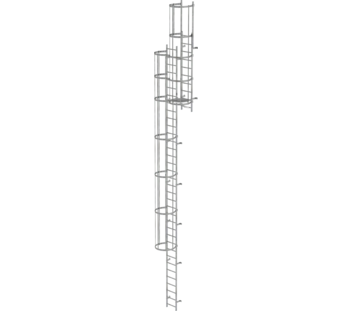

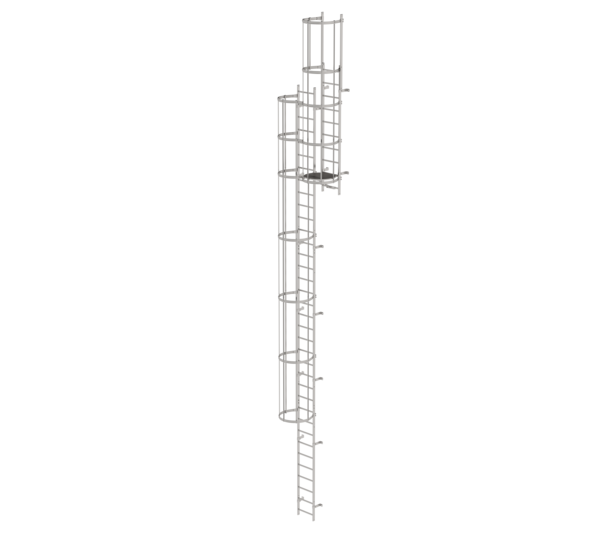

Multiple-flight vertical ladder with back protection (construction) stainless steel
€ 12,000.00
RRP without VAT
Specifications
Climbing height
10.64 m
Ladder length incl. exit side-rail
11.84 m
Outer width
520 mm
Depth of side-rails
60 mm
Wall distance
200 mm
Intended use
on buildings
Design type
Multiple-flight
Material
Stainless steel
Weight
190 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
530130
Price
€ 12,000.00
Information

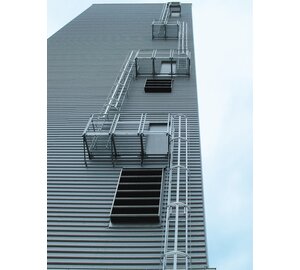

- Range of application: On buildings for maintenance and cleaning work. For chimneys, specific regulations apply to the attachment and back protection.
- Irrespective of the climbing height:
- Either back protection or safety railing can be used as fall protection (combination not permitted as the rescue of persons is then hindered by the back protection)
- The need for an occupational medical examination for suitability for working at height (e.g. G 41) depends on the risk assessment (e.g. total climbing height, type of safety railing) of the respective vertical ladder systems
- Proof of the load-bearing capacity of the underlying surface must be provided for each construction project by a responsible stability expert
- Barrier (safety door) is always required
- The vertical overlap of successive ladder flights must be at least 1,680 mm
- At unsecured exit levels, railings attached to both sides of the vertical ladder or led into the exit level are required
- Gap at exit step must not be larger than 75 mm
- Step-on dimension: Distance from the entry level to the first rung: 100 – 400 mm. If the exit is to the front, the uppermost rung must be at the same height as the exit level
- Step-on dimension: Distance from entry level to the first rung 100–400 mm
- When exiting forwards, the uppermost rung must be at the height of the exit side-rail
- Vertical ladders with fall protection require at least 800 × 800 mm clear space available in front of the ladder when climbing off it. These dimensions must also be observed for new installations in the existing system
- The clearances between the vertical ladder system and the railing must not exceed 180 mm
- The connection to the fall protection must be established and released from a secured standing position
- A secured standing position is, for example, a platform with railing and a secured access
- For safe gripping of the side-rails, the clearance to adjacent parts around the side-rails must be at least 75 mm (except for components forming part of the vertical ladder system)
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply

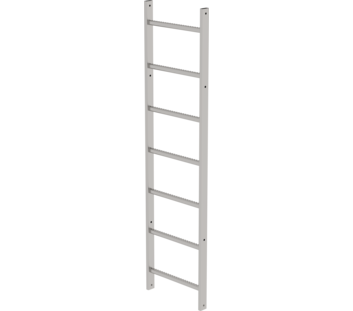

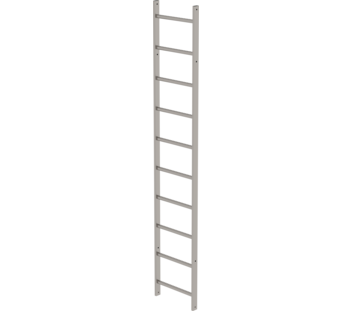

- 068265 - Ladder section stainless steel: 2 x

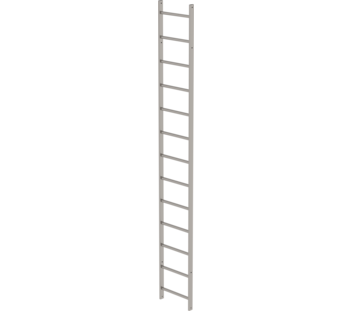

- 068266 - Ladder section stainless steel: 2 x
- 068243 - Exit side-rail straight: 2 x
- 068249 - Wall anchor, rigid, 200 mm, stainless steel: 18 x

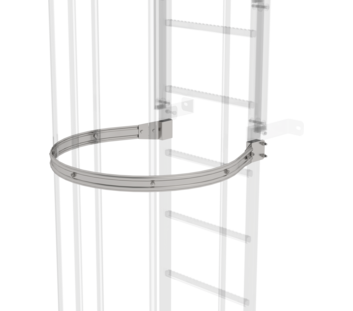

- 068234 - Ø 700 mm back protection hoop: 8 x
- 068235 - Back protection hoop strut, 3,000mm long: 19 x
- 068963 - Back protection hoop offset design: 2 x
- 068961 - Transfer platform between ladder sections, Ø 700 mm: 1 x
- 068236 - Vertical ladder connector 200 mm: 4 x
Safety. Made in Germany.
Comparison table
| Product name | Multiple-flight vertical ladder with back protection (construction) stainless steel 11.84m | Multiple-flight vertical ladder with back protection (construction) stainless steel 12.96m | Multiple-flight vertical ladder with back protection (construction) stainless steel 13.80m | Multiple-flight vertical ladder with back protection (construction) stainless steel 14.64m | Multiple-flight vertical ladder with back protection (construction) stainless steel 15.48m | Multiple-flight vertical ladder with back protection (construction) stainless steel 16.32m | Multiple-flight vertical ladder with back protection (construction) stainless steel 17.16m | Multiple-flight vertical ladder with back protection (construction) stainless steel 18.28m | Multiple-flight vertical ladder with back protection (construction) stainless steel 19.12m | Multiple-flight vertical ladder with back protection (construction) stainless steel 19.96m |
|---|---|---|---|---|---|---|---|---|---|---|
| Climbing height | 10.64 m | 11.76 m | 12.6 m | 13.44 m | 14.28 m | 15.12 m | 15.96 m | 17.08 m | 17.92 m | 18.76 m |
| Ladder length incl. exit side-rail | 11.84 m | 12.96 m | 13.8 m | 14.64 m | 15.48 m | 16.32 m | 17.16 m | 18.28 m | 19.12 m | 19.96 m |
| Outer width | 520 mm | 520 mm | 520 mm | 520 mm | 520 mm | 520 mm | 520 mm | 520 mm | 520 mm | 520 mm |
| Depth of side-rails | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wall distance | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm |
| Intended use | on buildings | on buildings | on buildings | on buildings | on buildings | on buildings | on buildings | on buildings | on buildings | on buildings |
| Design type | Multiple-flight | Multiple-flight | Multiple-flight | Multiple-flight | Multiple-flight | Multiple-flight | Multiple-flight | Multiple-flight | Multiple-flight | Multiple-flight |
| Material | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Weight | 190 kg | 206 kg | 217 kg | 228 kg | 237 kg | 254 kg | 264 kg | 274 kg | 289 kg | 302 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 530130 | 530135 | 530140 | 530145 | 530150 | 530155 | 530160 | 530165 | 530170 | 530175 |
| Price | € 12,000.00 | € 12,904.00 | € 13,515.00 | € 14,088.00 | € 14,513.00 | € 15,456.00 | € 15,963.00 | € 16,523.00 | € 17,306.00 | € 18,051.00 |
| Buy online |
Fixed ladders overview
All fixed ladders / vertical ladders at a glance:
- Single-flight vertical ladders in accordance with DIN 18799-1/-3, DIN 14094-1 and DIN EN ISO 14122-4 (depending on the choice of standard and the situation on site at the exit, additional components such as exit steps, railings and safety doors may be required)
- DIN 18799-1: Stationary multiple-flight vertical ladders on buildings
- DIN 14094-1: Multiple-flight emergency ladder systems (emergency ladders)
- DIN EN ISO 14122-4: Stationary multiple-flight vertical ladders on machinery
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
