Order no.
: 012042

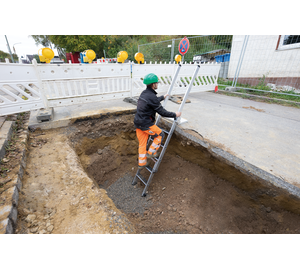

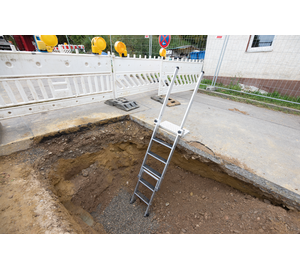

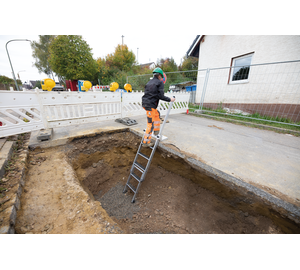

Pit ladder lower section
€ 183.00
RRP without VAT
Specifications
Depth of excavation min.
1.3 m
Depth of excavation max.
1.6 m
Ladder length
800 mm
Number of steps/rungs
2 steps
Lower outer width
420 mm
Depth of side-rails
73 mm
Width of side-rails
25 mm
Step width
370 mm
Step depth
80 mm
Step/Rung distance
263 mm
Inclination
70 °
Max. load capacity
150 kg
Type of non-slip protection
clip-step R13
Design type
To lean against
Material
Aluminium
Transport dimensions
804 x 507 x 87 mm, 2.8 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
012042
Price
€ 183.00
Information
- Aluminium ladder push-fit section
- Two different push-fit sections for flexible extension of the pit ladder
- 80 mm-deep steps with clip-step R13 slip-resistant step padding
- Easy and fast installation, thanks to push-fit connections with hook lock
- Tool-free conversion of pit ladder base plates with claws on push-fit section
- Lightweight individual components
- Space-saving transport and storage
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Push-fit section: 1 x
- Assembly instructions and instructions for use: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Pit ladder lower section 2 steps | Pit ladder lower section 4 steps |
|---|---|---|
| Depth of excavation min. | 1.3 m | 1.8 m |
| Depth of excavation max. | 1.6 m | 2.1 m |
| Ladder length | 800 mm | 1.36 m |
| Number of steps/rungs | 2 steps | 4 steps |
| Lower outer width | 420 mm | 420 mm |
| Depth of side-rails | 73 mm | 73 mm |
| Width of side-rails | 25 mm | 25 mm |
| Step width | 370 mm | 370 mm |
| Step depth | 80 mm | 80 mm |
| Step/Rung distance | 263 mm | 263 mm |
| Inclination | 70 ° | 70 ° |
| Max. load capacity | 150 kg | 150 kg |
| Type of non-slip protection | clip-step R13 | clip-step R13 |
| Design type | To lean against | To lean against |
| Material | Aluminium | Aluminium |
| Transport dimensions | 804 x 507 x 87 mm, 2.8 kg | 1363 x 507 x 87 mm, 4.6 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 012042 | 012044 |
| Price | € 183.00 | € 248.00 |
| Buy online |
Product video
Sponsored by BG BAU
Specification subject to conditions; for the latest information please visit the BG BAU website (statutory accident insurance company for the construction and construction related services in Germany). Since 2014, the BG BAU has been promoting the purchase of platform ladders, step stools and ladder accessories with single-sided and double-sided access. All members of the BG BAU profit from this. This aims to prevent work accidents on building sites and improve ergonomic working practices. For more information by BG BAU, please visit: www.bgbau.de/service/angebote/arbeitsschutzpraemien
A brief overview of the subsidy and an overview of our eligible products can be found on our website under know-how.
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
