Order no.
: 059203

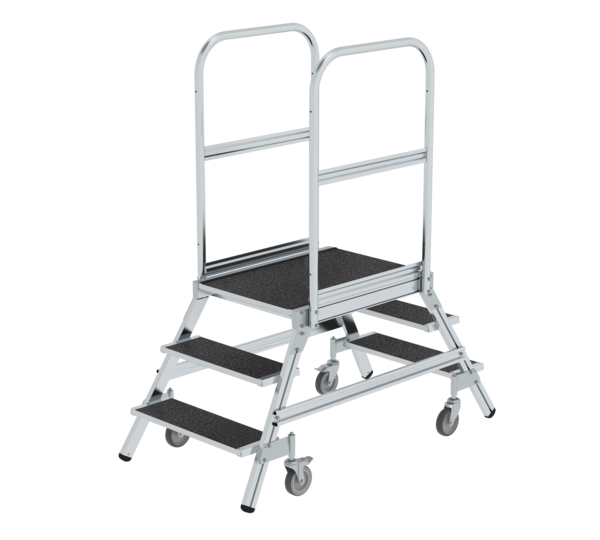

Platform stairs, with double-sided access, with spring-loaded castor corundum coating R13
€ 1,500.00
RRP without VAT
Specifications
Working height
2.7 m
Step design
Steps
Number of steps/rungs
2x
3 steps
Platform included as step
Yes
Step/Platform surface
Corundum coating
Non-slip class
R13
Platform height
720 mm
Height
1.72 m
Platform length
800 mm
Platform width
600 mm
Step depth
200 mm
Step/Rung distance
240 mm
Inclination
60 °
Depth of side-rails
57 mm
Width of side-rails
24 mm
Castor diameter
125 mm
Base area length
1.51 m
Base area width
770 mm
Max. load capacity
150 kg
Design type
Freestanding | Double-sided access | With castors
Weight
30 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
059203
Price
€ 1,500.00
Information
- Aluminium platform stairs double-sided
- Stable rectangular tube side-rails
- Steps with a depth of 200 mm
- Roomy platform (600 x 800 mm)
- Railing on both sides and knee and toe board for safe stance (height: 1,000 mm)
- Four Ø 125 mm self-locking swivel castors, 2 with locking device
- Easy to assemble (delivered unassembled)
- In accordance with DIN EN 131-7, handrails are optional for ascending platform ladders with an ascent angle ≥ 60°
- Available in various step and platform designs
- Maximum load: 150 kg
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Platform stairs: 1 x
- Swivel castor: 4 x
- Instructions for use and operation: 1 x
Certificates
Safety. Made in Germany.
Comparison table

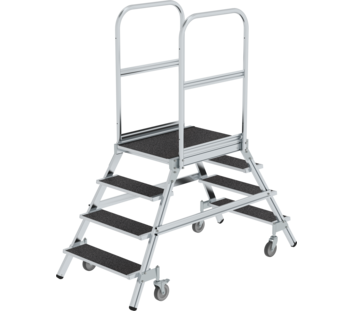

| Product name | Platform stairs, with double-sided access, with spring-loaded castor corundum coating R13 3 steps | Platform stairs, with double-sided access, with spring-loaded castor corundum coating R13 4 steps | Platform stairs, with double-sided access, with spring-loaded castor corundum coating R13 5 steps | Platform stairs, with double-sided access, with spring-loaded castor corundum coating R13 6 steps | Platform stairs, with double-sided access, with spring-loaded castor corundum coating R13 7 steps | Platform stairs, with double-sided access, with spring-loaded castor corundum coating R13 8 steps |
|---|---|---|---|---|---|---|
| Working height | 2.7 m | 3 m | 3.2 m | 3.5 m | 3.7 m | 3.9 m |
| Step design | Steps | Steps | Steps | Steps | Steps | Steps |
| Number of steps/rungs | 2x3 steps | 2x4 steps | 2x5 steps | 2x6 steps | 2x7 steps | 2x8 steps |
| Platform included as step | Yes | Yes | Yes | Yes | Yes | Yes |
| Step/Platform surface | Corundum coating | Corundum coating | Corundum coating | Corundum coating | Corundum coating | Corundum coating |
| Non-slip class | R13 | R13 | R13 | R13 | R13 | R13 |
| Platform height | 720 mm | 960 mm | 1.2 m | 1.44 m | 1.68 m | 1.92 m |
| Height | 1.72 m | 1.96 m | 2.2 m | 2.44 m | 2.68 m | 2.92 m |
| Platform length | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm |
| Platform width | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm |
| Step depth | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm |
| Step/Rung distance | 240 mm | 240 mm | 240 mm | 240 mm | 240 mm | 240 mm |
| Inclination | 60 ° | 60 ° | 60 ° | 60 ° | 60 ° | 60 ° |
| Depth of side-rails | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm |
| Width of side-rails | 24 mm | 24 mm | 24 mm | 24 mm | 24 mm | 24 mm |
| Castor diameter | 125 mm | 125 mm | 125 mm | 125 mm | 125 mm | 125 mm |
| Base area length | 1.51 m | 1.79 m | 2.07 m | 2.35 m | 2.62 m | 2.9 m |
| Base area width | 770 mm | 820 mm | 880 mm | 940 mm | 1 m | 1.06 m |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| Design type | Freestanding | Double-sided access | With castors | Freestanding | Double-sided access | With castors | Freestanding | Double-sided access | With castors | Freestanding | Double-sided access | With castors | Freestanding | Double-sided access | With castors | Freestanding | Double-sided access | With castors |
| Weight | 30 kg | 34 kg | 39 kg | 44 kg | 49 kg | 55 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 059203 | 059204 | 059205 | 059206 | 059207 | 059208 |
| Price | € 1,500.00 | € 1,669.00 | € 1,908.00 | € 2,127.00 | € 2,374.00 | € 2,625.00 |
| Buy online |
