Order no.
: 052080

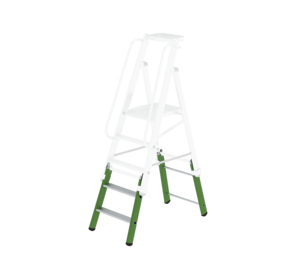

Push-fit section for push-fit platform ladder
€ 459.00
RRP without VAT
Specifications
Working height
3.15 m
Step design
Steps
Number of steps/rungs
2 steps
Platform included as step
No
Platform height
1.15 m
Step depth
80 mm
Step/Rung distance
235 mm
Height
1.9 m
Base spread
1.15 m
Inclination
70 °
Lower outer width
570 mm
Depth of side-rails
73 mm
Depth of side-rails, support
58 mm
Max. load capacity
150 kg
Design type
Freestanding | Single-sided access
Weight
4.8 kg
Transport dimensions
720 x 585 x 170 mm, 4.58 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
052080
Price
€ 459.00
Information
- Four different push-fit sections for flexible extension of the platform ladder range

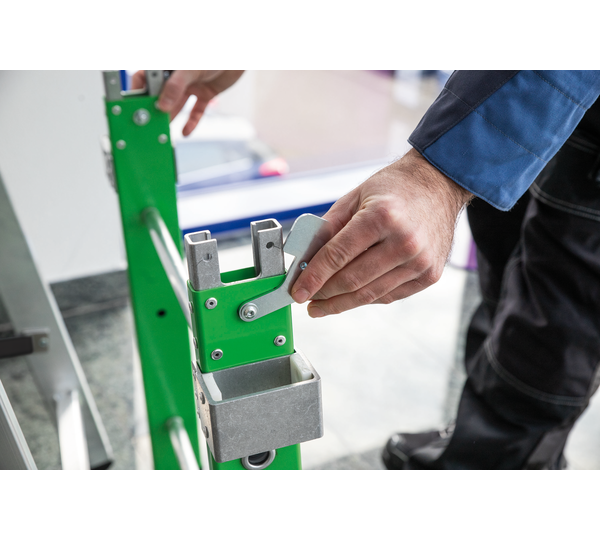

- Easy and fast installation, thanks to push-fit connectors with hook lock
- Coloured coating of the beams for easy pairing identification
- Space-saving transport and storage
- Note: Height data and base spread measured in conjunction with the platform ladder (push-fit) (order no. 052083)
This product only includes the push-fit section for the push-fit platform ladder. The main platform ladder is available as a version with two handrails or with a foldable handle.
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Push-fit section: ascending part: 1 x
- Push-fit section: support part: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Push-fit section for push-fit platform ladder plus 2 steps | Push-fit section for push-fit platform ladder plus 3 steps | Push-fit section for push-fit platform ladder plus 4 steps | Push-fit section for push-fit platform ladder plus 5 steps |
|---|---|---|---|---|
| Working height | 3.15 m | 3.4 m | 3.6 m | 3.9 m |
| Step design | Steps | Steps | Steps | Steps |
| Number of steps/rungs | 2 steps | 3 steps | 4 steps | 5 steps |
| Platform included as step | No | No | No | No |
| Platform height | 1.15 m | 1.39 m | 1.62 m | 1.86 m |
| Step depth | 80 mm | 80 mm | 80 mm | 80 mm |
| Step/Rung distance | 235 mm | 235 mm | 235 mm | 235 mm |
| Height | 1.9 m | 2.14 m | 2.37 m | 2.61 m |
| Base spread | 1.15 m | 1.29 m | 1.44 m | 1.58 m |
| Inclination | 70 ° | 70 ° | 70 ° | 70 ° |
| Lower outer width | 570 mm | 580 mm | 620 mm | 640 mm |
| Depth of side-rails | 73 mm | 73 mm | 73 mm | 73 mm |
| Depth of side-rails, support | 58 mm | 58 mm | 58 mm | 58 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg |
| Design type | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access | Freestanding | Single-sided access |
| Weight | 4.8 kg | 7 kg | 8.3 kg | 9.6 kg |
| Transport dimensions | 720 x 585 x 170 mm, 4.58 kg | 950 x 585 x 170 mm, 6 kg | 1200 x 618 x 170 mm, 7.5 kg | 1450 x 646 x 170 mm, 9.6 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 052080 | 052081 | 052082 | 052084 |
| Price | € 459.00 | € 501.00 | € 560.00 | € 596.00 |
| Buy online |
Sponsored by BG BAU
Specification subject to conditions; for the latest information please visit the BG BAU website (statutory accident insurance company for the construction and construction related services in Germany). Since 2014, the BG BAU has been promoting the purchase of platform ladders, step stools and ladder accessories with single-sided and double-sided access. All members of the BG BAU profit from this. This aims to prevent work accidents on building sites and improve ergonomic working practices. For more information by BG BAU, please visit: www.bgbau.de/service/angebote/arbeitsschutzpraemien
A brief overview of the subsidy and an overview of our eligible products can be found on our website under know-how.
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
