Order no.
: 040670

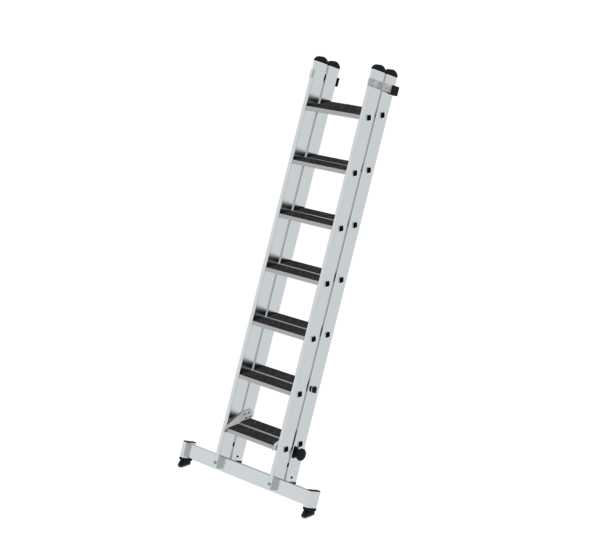

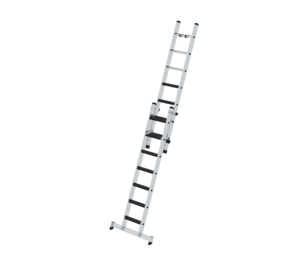

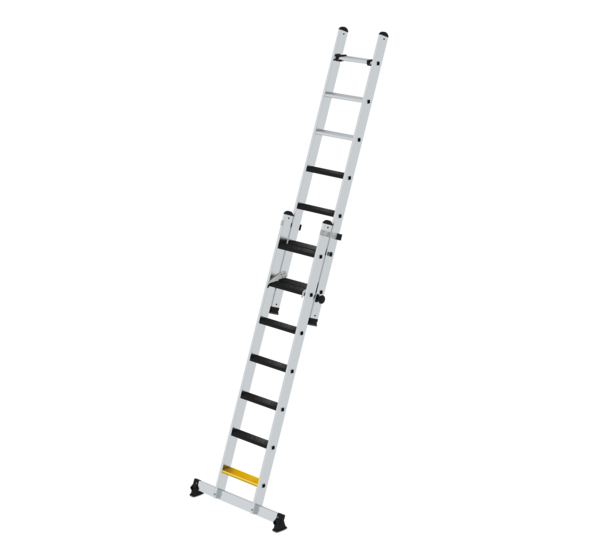

Step push-up extension ladder 2-section with nivello® stabiliser and clip-step R13
€ 841.00
RRP without VAT
Specifications
Working height
4.4 m
Step design
Steps
Number of steps/rungs
2x
7 steps
Step depth
80 mm
Step/Rung distance
263 mm
Retracted length
2.21 m
Extended length
3.62 m
Inclination
70 °
Outer width
420 mm
Stabiliser width
930 mm
Depth of side-rails
85 mm
Width of side-rails
25 mm
Design type
To lean against | 2-part
Weight
18 kg
Transport dimensions
2455 x 500 x 200 mm, 18.024 kg
Predecessor product
040630
Business division
MUNK Günzburger Steigtechnik
Article no.
040670
Price
€ 841.00
Information
- Aluminium stepladder
- Stable rectangular tube side-rails
- Grooved steps with a depth of 80 mm
- 4-fold edged step-to-side-rail connection
- Simple height adjustment and safer locking from the front due to corrosion-resistant push-fit fittings on the sides
- Extra wide base area of 170 mm in depth in the overlap area of the lower and upper ladders
- Upper ladder with ladder head protection (Velcro tape) for fastening to gutters or similar.

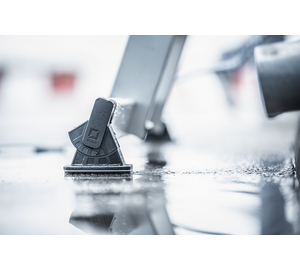

- Lower ladder with nivello® stabiliser for extra stability and safe ascent (enclosed separately)
- Upper ladder with nivello® ladder shoes, as removable for individual use

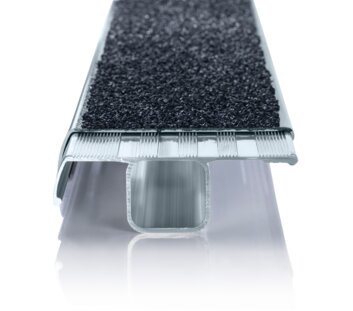

- clip-step R13 step padding for certified non-slip protection
- Step spacing: 263 mm
- Ladder width: 420 mm (without stabiliser)
- Ladder inclination: 70°
- Maximum load: 150 kg
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Stabiliser (enclosed separately): 1 x
- Instructions for use and operation: 1 x
Safety. Made in Germany.
Comparison table

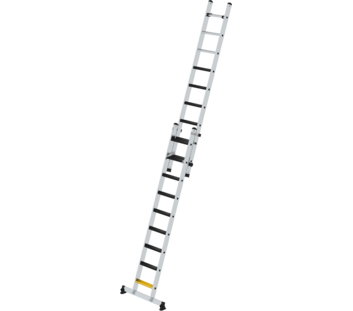

| Product name | Step push-up extension ladder 2-section with nivello® stabiliser and clip-step R13 2x7 | Step push-up extension ladder 2-section with nivello® stabiliser and clip-step R13 2x9 | Step push-up extension ladder 2-section with nivello® stabiliser and clip-step R13 1x11 + 1x10 | Step push-up extension ladder 2-section with nivello® stabiliser and clip-step R13 1x14 + 1x10 |
|---|---|---|---|---|
| Working height | 4.4 m | 5.45 m | 6.2 m | 7 m |
| Step design | Steps | Steps | Steps | Steps |
| Number of steps/rungs | 2x7 steps | 2x9 steps | 11 + 10 steps | 14 + 10 steps |
| Step depth | 80 mm | 80 mm | 80 mm | 80 mm |
| Step/Rung distance | 263 mm | 263 mm | 263 mm | 263 mm |
| Retracted length | 2.21 m | 2.77 m | 3.33 m | 4.17 m |
| Extended length | 3.62 m | 4.75 m | 5.6 m | 6.42 m |
| Inclination | 70 ° | 70 ° | 70 ° | 70 ° |
| Outer width | 420 mm | 420 mm | 420 mm | 420 mm |
| Stabiliser width | 930 mm | 930 mm | 1.2 m | 1.2 m |
| Depth of side-rails | 85 mm | 85 mm | 85 mm | 85 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm | 25 mm |
| Design type | To lean against | 2-part | To lean against | 2-part | To lean against | 2-part | To lean against | 2-part |
| Weight | 18 kg | 19.9 kg | 21.7 kg | 24.3 kg |
| Transport dimensions | 2455 x 500 x 200 mm, 18.024 kg | 2770 x 504 x 210 mm, 19.9 kg | 3330 x 504 x 210 mm, 21.7 kg | 4170 x 504 x 210 mm, 24.3 kg |
| Predecessor product | 040630 | 040632 | 040634 | 040637 |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 040670 | 040673 | 040676 | 040679 |
| Price | € 841.00 | € 991.00 | € 1,107.00 | € 1,234.00 |
| Buy online |
Sponsored by BG BAU
Specification subject to conditions; for the latest information please visit the BG BAU website (statutory accident insurance company for the construction and construction related services in Germany). Since 2014, the BG BAU has been promoting the purchase of platform ladders, step stools and ladder accessories with single-sided and double-sided access. All members of the BG BAU profit from this. This aims to prevent work accidents on building sites and improve ergonomic working practices. For more information by BG BAU, please visit: www.bgbau.de/service/angebote/arbeitsschutzpraemien
A brief overview of the subsidy and an overview of our eligible products can be found on our website under know-how.
