Specifications
Working height
2.6 m
Platform height
600 mm
Top surface depth
550 mm
Top surface width
300 mm
Step/Platform surface
Aluminium tibial plate
Non-slip class
R10
Base area length
880 mm
Base area width
740 mm
Design type
Single-sided access | Rigid
Number of steps/rungs
3 steps
Platform included as step
Yes
Height
1.2 m
Max. load capacity
150 kg
Material
Aluminium
Weight
10.4 kg
Transport dimensions
880 x 755 x 600 mm, 9 kg
Transport dimensions 2
1010 x 590 x 30 mm, 1.4 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
050043
Price
€ 416.00
Information

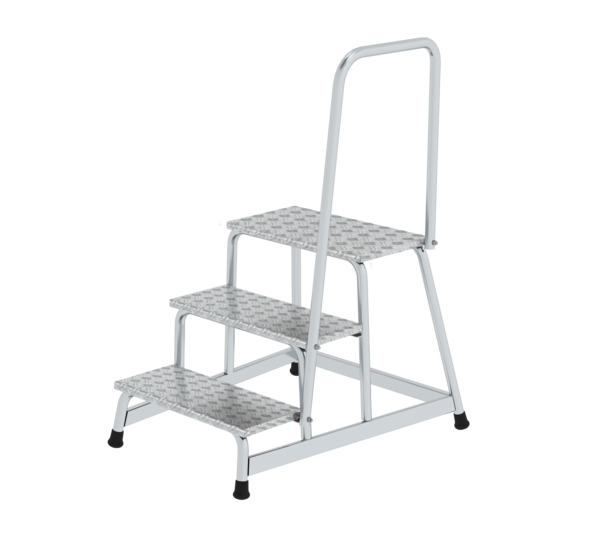

- Aluminium work platform
- Sturdy, welded bar design
- 220 mm deep steps made of aluminium chequered plate for a secure footing
- Top tread surface: 550 x 300 mm
- Non-slip plastic shoes
- Increased safety thanks to one-sided handrail (height: 600 mm). This is enclosed separately and can easily be screwed on (holes on the right)
- Step spacing 200 mm
- Maximum load: 150 kg
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Platform: 1 x
- Handrail (enclosed separately): 1 x
- Assembly instructions and instructions for use: x
Certificates
Safety. Made in Germany.
Comparison table
| Product name | Work platform rigid with handrail 3 steps | Work platform rigid with handrail 4 steps | Work platform rigid with handrail 5 steps |
|---|---|---|---|
| Working height | 2.6 m | 2.8 m | 3 m |
| Platform height | 600 mm | 800 mm | 1 m |
| Top surface depth | 550 mm | 550 mm | 550 mm |
| Top surface width | 300 mm | 300 mm | 300 mm |
| Step/Platform surface | Aluminium tibial plate | Aluminium tibial plate | Aluminium tibial plate |
| Non-slip class | R10 | R10 | R10 |
| Base area length | 880 mm | 1.13 m | 1.39 m |
| Base area width | 740 mm | 790 mm | 830 mm |
| Design type | Single-sided access | Rigid | Single-sided access | Rigid | Single-sided access | Rigid |
| Number of steps/rungs | 3 steps | 4 steps | 5 steps |
| Platform included as step | Yes | Yes | Yes |
| Height | 1.2 m | 1.4 m | 1.6 m |
| Max. load capacity | 150 kg | 150 kg | 150 kg |
| Material | Aluminium | Aluminium | Aluminium |
| Weight | 10.4 kg | 12.4 kg | 14.4 kg |
| Transport dimensions | 880 x 755 x 600 mm, 9 kg | 1140 x 800 x 805 mm, 11 kg | 1390 x 840 x 1005 mm, 13 kg |
| Transport dimensions 2 | 1010 x 590 x 30 mm, 1.4 kg | 1010 x 590 x 30 mm, 1.4 kg | 1010 x 590 x 30 mm, 1.4 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 050043 | 050044 | 050045 |
| Price | € 416.00 | € 516.00 | € 652.00 |
| Buy online |
Product video
Sponsored by BG BAU
Specification subject to conditions; for the latest information please visit the BG BAU website (statutory accident insurance company for the construction and construction related services in Germany). Since 2014, the BG BAU has been promoting the purchase of platform ladders, step stools and ladder accessories with single-sided and double-sided access. All members of the BG BAU profit from this. This aims to prevent work accidents on building sites and improve ergonomic working practices. For more information by BG BAU, please visit: www.bgbau.de/service/angebote/arbeitsschutzpraemien
A brief overview of the subsidy and an overview of our eligible products can be found on our website under know-how.
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
