Order no.: 154348

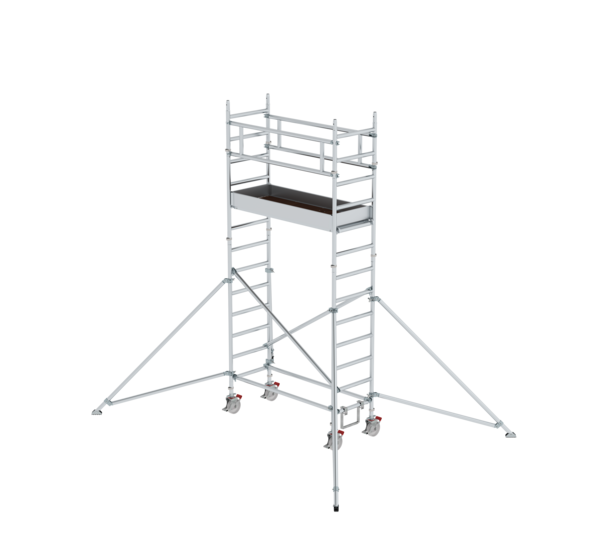

Mobile scaffolding, 0.75 × 1.80 m, with outrigger.
€ 3,785.00
RRP without VAT
Specifications
Working height
5.07 m
Scaffolding height
5.74 m
Platform height
3.07 m
Platform width
750 mm
Platform length
1.8 m
Load capacity
2 kN/m2
Weight
110 kg
Transport dimensions
2500 x 800 x 750 mm, 110 kg
Indoor use, central installation
possible & allowed
Indoor use, lateral installation
possible & allowed
Outdoor use, central installation
possible & allowed
Outdoor use, lateral installation
possible & allowed
Ballasting of scaffolding, indoor, central installation
0 kg
Ballasting of scaffolding, indoor, lateral installation
0 kg
Ballasting of scaffolding, outdoor, central installation
0 kg
Ballasting of scaffolding, outdoor, lateral installation
0 kg
Predecessor product
154346, 177335
Business division
MUNK Günzburger Steigtechnik
Order no.
154348
Price
€ 3,785.00
Notice
Accessories necessary to fulfil DIN EN 1004-1:2021
Information
- Mobile scaffolding made of sturdy round aluminium tubing with welded frame parts
- All scaffolding parts are also available individually as spare or extension parts
- Stable and flexible thanks to folding outriggers
- Also ideal for wall mounting or moving in narrow aisles
- Four Ø 200 mm swivel castors with centric load application, locking mechanisms and spindles
- Aluminium toe boards and railing frames with integrated knee board as safety railing
- Can be set up and dismantled without tools thanks to push-fit connections and quick-release fasteners
- Easy to handle thanks to individual lightweight parts
- Different platform lengths available (1.80 / 2.45 / 3.0 m)
- GS-tested as per DIN EN 1004
- Load class/scaffolding group 3: 2.0 kN/m²
- In order to meet the requirements of DIN EN 1004-1:2021, this scaffold must be retrofitted
- Option 1 - Conversion to MSG: 2 protective assembly railings telescopic (027991) are required for safe assembly, dismantling and conversion

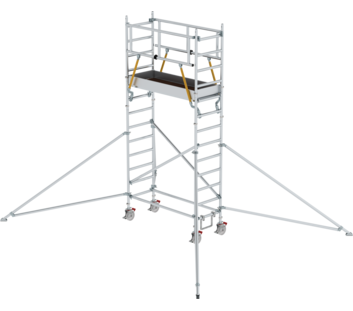

- Option 2 - Conversion to SG: Replace the railings lengthwise with safety railings for mobile scaffoldings in the appropriate scaffold length (2 pieces per platform level). Replace the guardrail frame at the front (top platform level) with railing frame SG at the front in the appropriate width. Omit the diagonal braces above the first platform
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- 027904 - Push-fit frame, 0.75 m.: 2 x
- 027918 - Push-fit frame, 0.75 m.: 2 x
- 027955 - Railing lengthwise: 2 x
- 027931 - Platform with trapdoor: 1 x
- 027913 - Toe board front side: 2 x
- 027943 - Toe board long side: 2 x
- 027937 - Diagonal brace: 2 x
- 027935 - Horizontal strut: 2 x
- 027926 - Triangular outrigger: 4 x
- 027917 - Swivel castor with spindle: 4 x
- 027940 - Step-on bracket: 1 x
- 027905 - Push-fit frame, 0.75 m.: 2 x
Safety. Made in Germany.
Comparison table
| Product name | Mobile scaffolding, 0.75 × 1.80 m, with outrigger. Platform height 3.07 m | Mobile scaffolding, 0.75 × 1.80 m, with outrigger. Platform height 4.47 m | Mobile scaffolding, 0.75 × 1.80 m, with outrigger. Platform height 5.59 m | Mobile scaffolding, 0.75 × 1.80 m, with outrigger. Platform height 6.43 m | Mobile scaffolding, 0.75 × 1.80 m, with outrigger. Platform height 7.55 m | Mobile scaffolding, 0.75 × 1.80 m, with outrigger. Platform height 8.39m | Mobile scaffolding, 0.75 × 1.80 m, with outrigger. Platform height 9.51m | Mobile scaffolding, 0.75 × 1.80 m, with outrigger. Platform height 10.35 m |
|---|---|---|---|---|---|---|---|---|
| Working height | 5.07 m | 6.47 m | 7.59 m | 8.43 m | 9.55 m | 10.39 m | 11.51 m | 12.35 m |
| Scaffolding height | 5.74 m | 5.74 m | 7.96 m | 7.7 m | 8.82 m | 9.66 m | 10.78 m | 11.62 m |
| Platform height | 3.07 m | 4.47 m | 5.59 m | 6.43 m | 7.55 m | 8.39 m | 9.51 m | 10.35 m |
| Platform width | 750 mm | 750 mm | 750 mm | 750 mm | 750 mm | 750 mm | 750 mm | 750 mm |
| Platform length | 1.8 m | 1.8 m | 1.8 m | 1.8 m | 1.8 m | 1.8 m | 1.8 m | 1.8 m |
| Load capacity | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 | 2 kN/m2 |
| Weight | 110 kg | 147 kg | 159 kg | 188 kg | 196 kg | 229 kg | 237 kg | 270 kg |
| Transport dimensions | 2500 x 800 x 750 mm, 110 kg | 2500 x 800 x 950 mm, 147 kg | 2500 x 800 x 1060 mm, 159 kg | 2500 x 800 x 1300 mm, 188 kg | 2500 x 800 x 1450 mm, 196 kg | 2500 x 800 x 1700 mm, 229 kg | 2500 x 800 x 1850 mm, 237 kg | 2500 x 800 x 2100 mm, 270 kg |
| Indoor use, central installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed |
| Indoor use, lateral installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed |
| Outdoor use, central installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | not allowed | not allowed | not allowed |
| Outdoor use, lateral installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed | possible & allowed | not allowed | not allowed | not allowed |
| Ballasting of scaffolding, indoor, central installation | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg | 0 kg |
| Ballasting of scaffolding, indoor, lateral installation | 0 kg | 0 kg | 100 kg | 120 kg | 150 kg | 170 kg | 200 kg | 220 kg |
| Ballasting of scaffolding, outdoor, central installation | 0 kg | 0 kg | 100 kg | 150 kg | 220 kg | - | - | - |
| Ballasting of scaffolding, outdoor, lateral installation | 0 kg | 0 kg | 260 kg | 330 kg | 410 kg | - | - | - |
| Ballasting per outrigger, indoor, central installation | - | - | - | 10 kg | 20 kg | 20 kg | 40 kg | 40 kg |
| Ballasting per outrigger, indoor, lateral installation | - | - | - | 10 kg | 20 kg | 20 kg | 40 kg | 40 kg |
| Ballasting per outrigger, outdoor, central installation | - | - | - | 10 kg | 50 kg | - | - | - |
| Ballasting per outrigger, outdoor, lateral installation | - | - | - | 10 kg | 50 kg | - | - | - |
| Predecessor product | 154346, 177335 | 177435 | 177535 | 177635 | 177735 | 177835 | 177935 | 177035 |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 154348 | 154446 | 154546 | 154646 | 154746 | 154846 | 154946 | 154046 |
| Price | € 3,785.00 | € 4,902.00 | € 5,432.00 | € 6,263.00 | € 6,635.00 | € 7,624.00 | € 7,996.00 | € 8,985.00 |
| Notice | Accessories necessary to fulfil DIN EN 1004-1:2021 | Accessories necessary to fulfil DIN EN 1004-1:2021 | Accessories necessary to fulfil DIN EN 1004-1:2021 | Accessories necessary to fulfil DIN EN 1004-1:2021 | Accessories necessary to fulfil DIN EN 1004-1:2021 | Accessories necessary to fulfil DIN EN 1004-1:2021 | Accessories necessary to fulfil DIN EN 1004-1:2021 | Accessories necessary to fulfil DIN EN 1004-1:2021 |
| Buy online |
Note on the BG BAU work safety subsidy
Expand your scaffolding with a safety railing (SG) and ensure reliable protection at work thanks to the system-integrated side protection! The retrofit reduces the risk of falling and enables the BG BAU work safety subsidy to be paid for up to 50% of the purchase costs (max. 100 euro per measure).
✔ Suitable for this product: Compatible SG safety railings offer effective side protection and are easy to retrofit.
All members of the BG BAU profit from this subsidy. This is intended to prevent accidents at work and improve ergonomics, especially on construction sites. All information from BG BAU can be found at: www.bgbau.de/service/angebote/arbeitsschutzpraemien
A brief overview of the subsidy and an overview of our eligible products can be found on our website at Knowledge.
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
